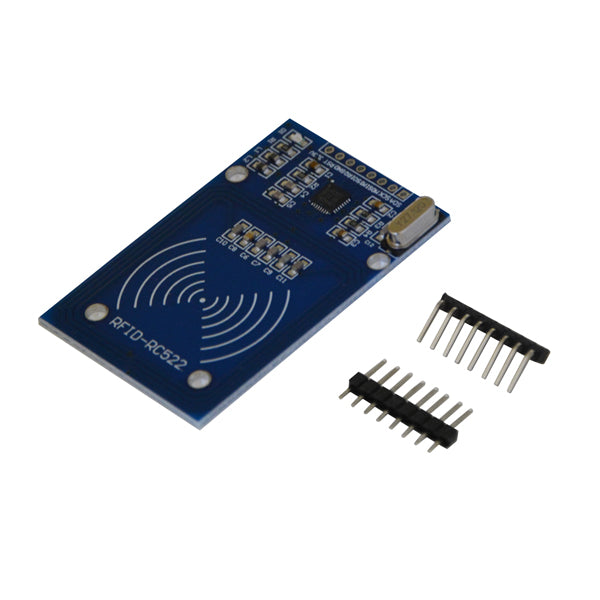

RFID reader module with built-in antenna 13.56Mhz RC522 (MFRC-522)
22% off
RFID reader module - type MFRC-522, frequency 13.56MHz, NXP chip, power supply 3.3V DC, standby current 10–13mA, operating current 13–26mA, CRYPTO1 encryption, transfer speed up to 424 kbit/s, SPI interface, built-in aerial, MIFARE card support, compatible with Arduino and Raspberry Pi, operating temperature -20 to +80°C, dimensions 40 × 60 mm
Last piece
Expected shipping:
12.10.2026
Sale price
35,00 Kč
Regular price
45,00 Kč
28,93 Kč
excl. VAT
Unit price
/
Unavailable
TIPA | SKU:
09830296
Product description
The RFID reader module MFRC-522 is used for reading or writing contactless MIFARE 13.56 MHz chip cards.
Technical parameters:
- type MFRC522, frequency 13.56 MHz, NXP
- power supply: 3.3 V DC
- quiescent current: 10 – 13 mA / 3.3 V DC
- operating current: 13 to 26 mA / 3.3 V DC
- CRYPTO1 encryption support
- two-way data transfer speed of up to 424 kbit/s
- SPI communication bus
- compatible with: Arduino platform, Raspberry Pi and others
- built-in antenna
- operating temperature: –20 to 80 °C
- dimensions: 40 × 60 mm
Technical parameters:
- type MFRC522, frequency 13.56 MHz, NXP
- power supply: 3.3 V DC
- quiescent current: 10 – 13 mA / 3.3 V DC
- operating current: 13 to 26 mA / 3.3 V DC
- CRYPTO1 encryption support
- two-way data transfer speed of up to 424 kbit/s
- SPI communication bus
- compatible with: Arduino platform, Raspberry Pi and others
- built-in antenna
- operating temperature: –20 to 80 °C
- dimensions: 40 × 60 mm
