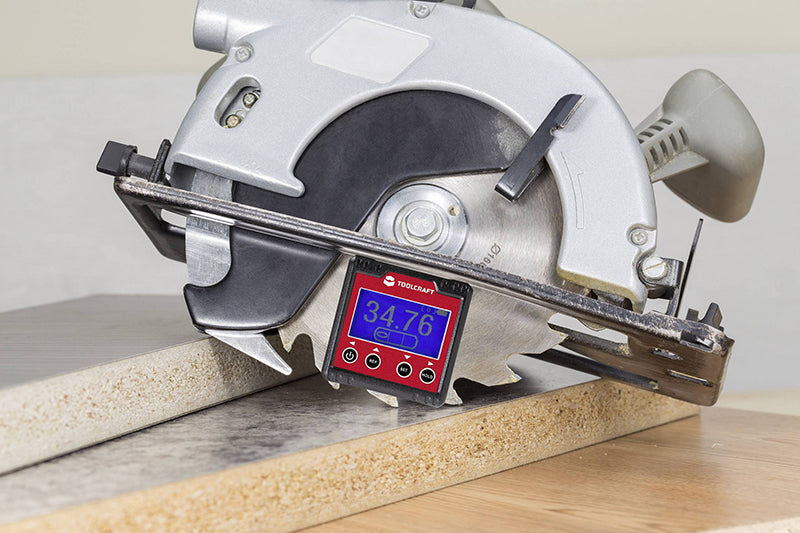

Protractor Digital Toolcraft TO-6547356

Digital angle finder - X and Y axis measurement, range 360°, accuracy ±0.1°, units degrees/percent/mm per m, LCD display with automatic rotation, strong magnets for attachment to a magnetic surface, automatic calibration, auto power off after 5 minutes, dimensions 70 × 70 × 31.3 mm, weight 127 g, IP42 rating, powered by 2× AA batteries (not included), material ABS and PC plastic

Show full description
Last piece
Expected shipping: 09.10.2026
990,00 Kč 818,18 Kč excl. VAT
TOOLCRAFT  |  SKU: 06434086  |  Barcode: 4053199996070
Log in for VAT-free pricing

Product description

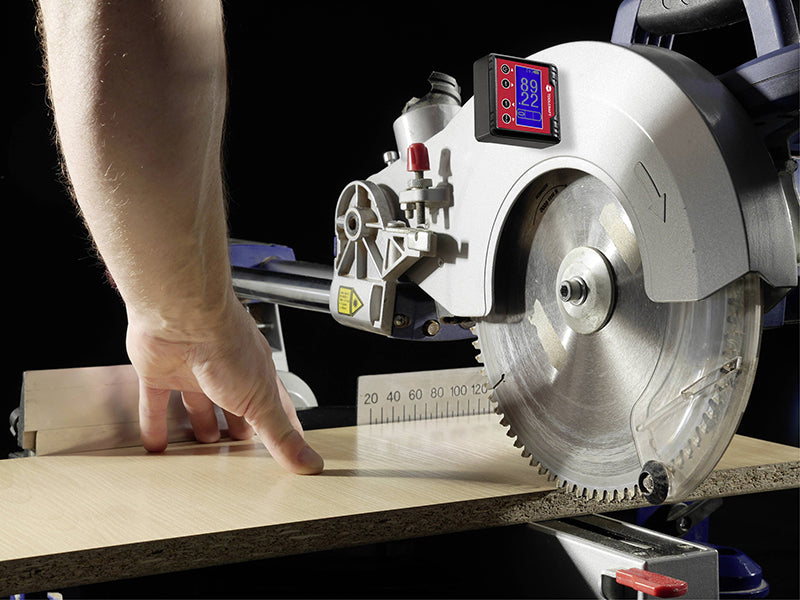

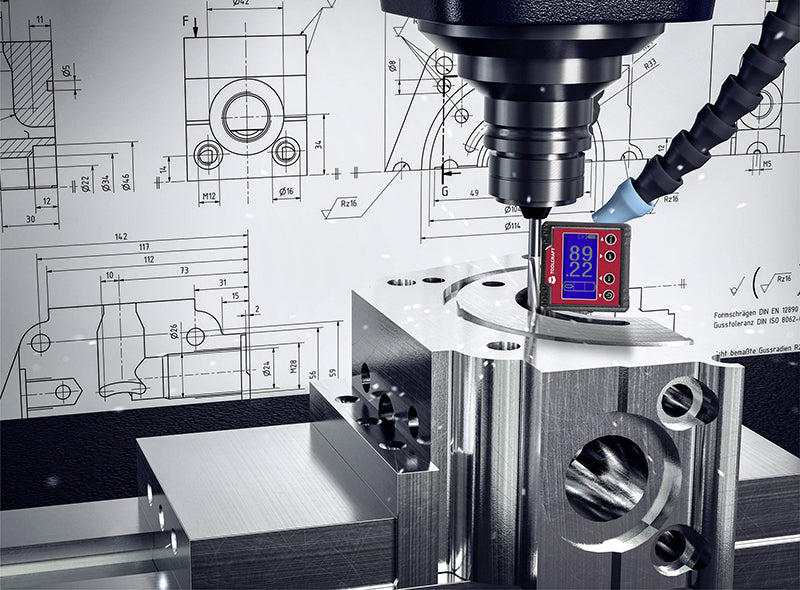

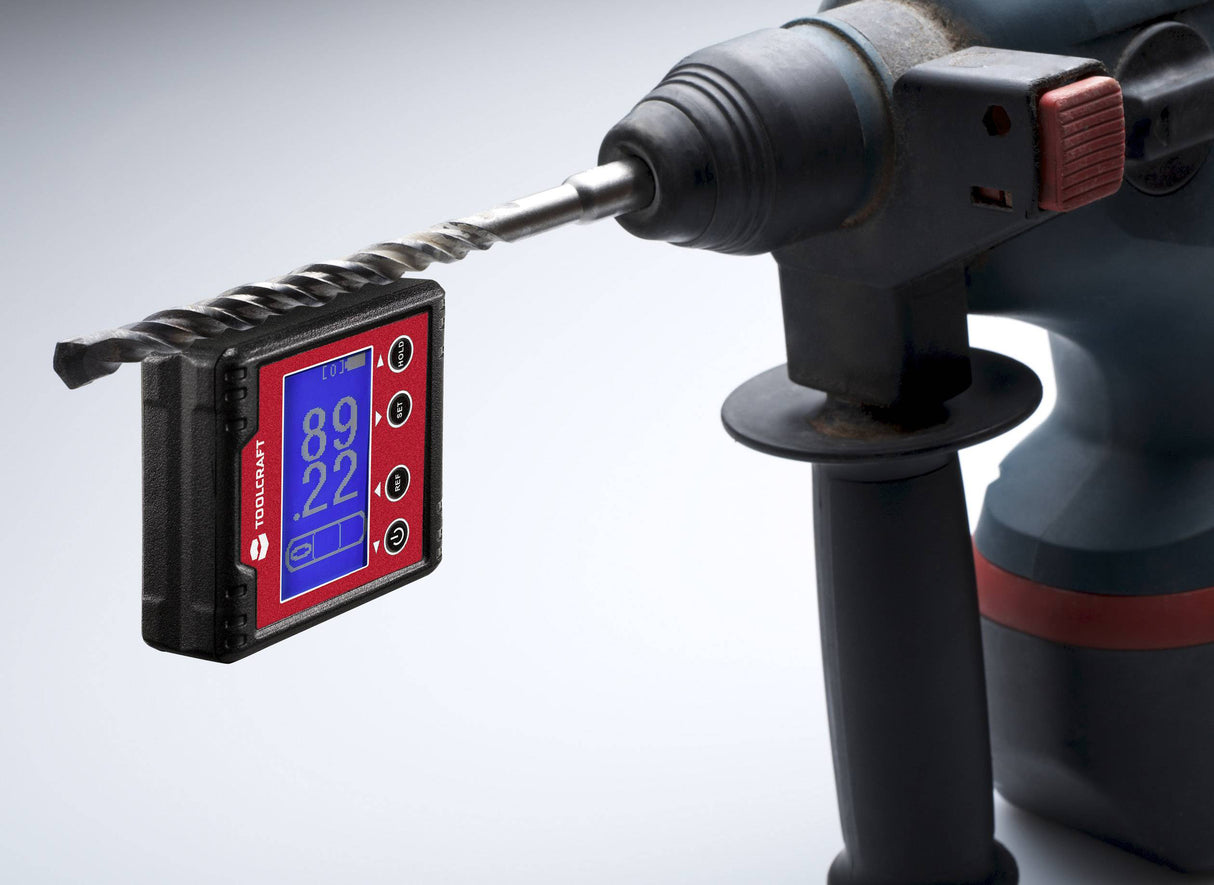

The LCD display allows convenient reading of the X and Y axis angles. Thanks to the strong magnets, the protractor fits on almost any magnetic substrate. Calibration is performed automatically.


Product parameters:

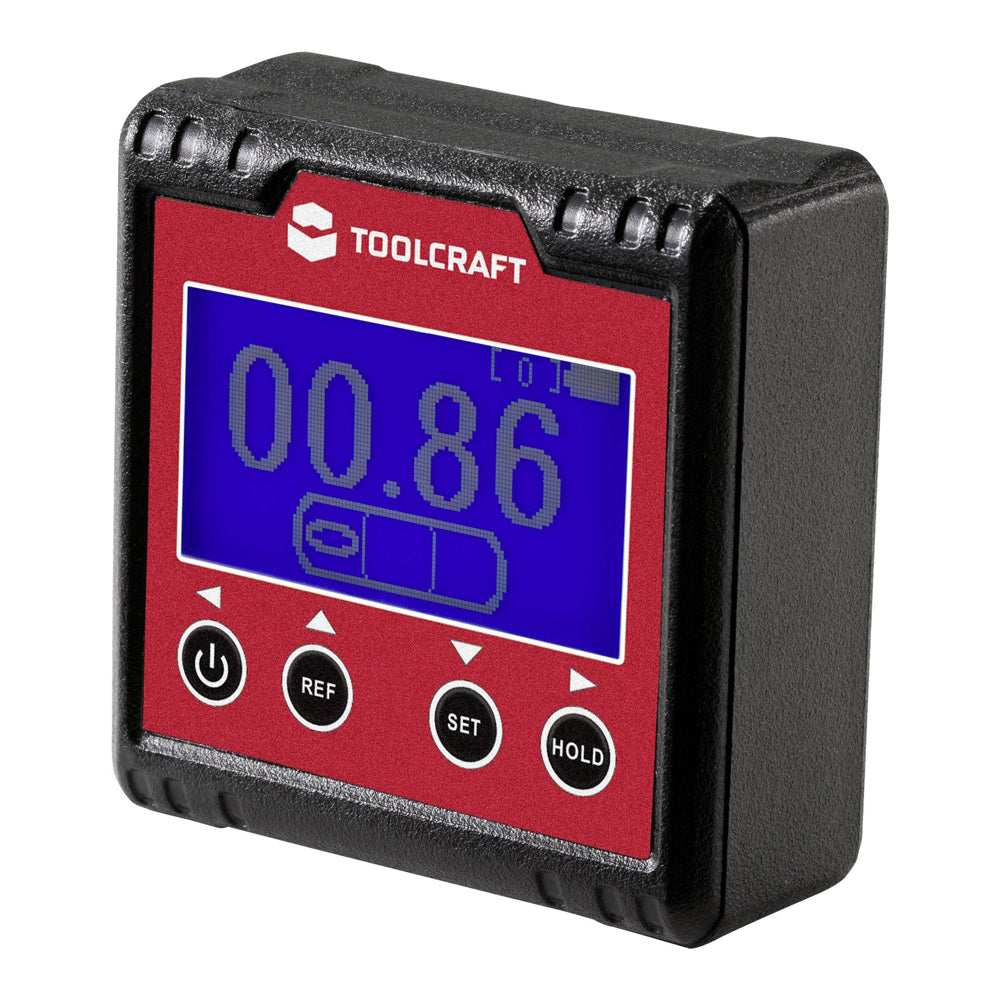

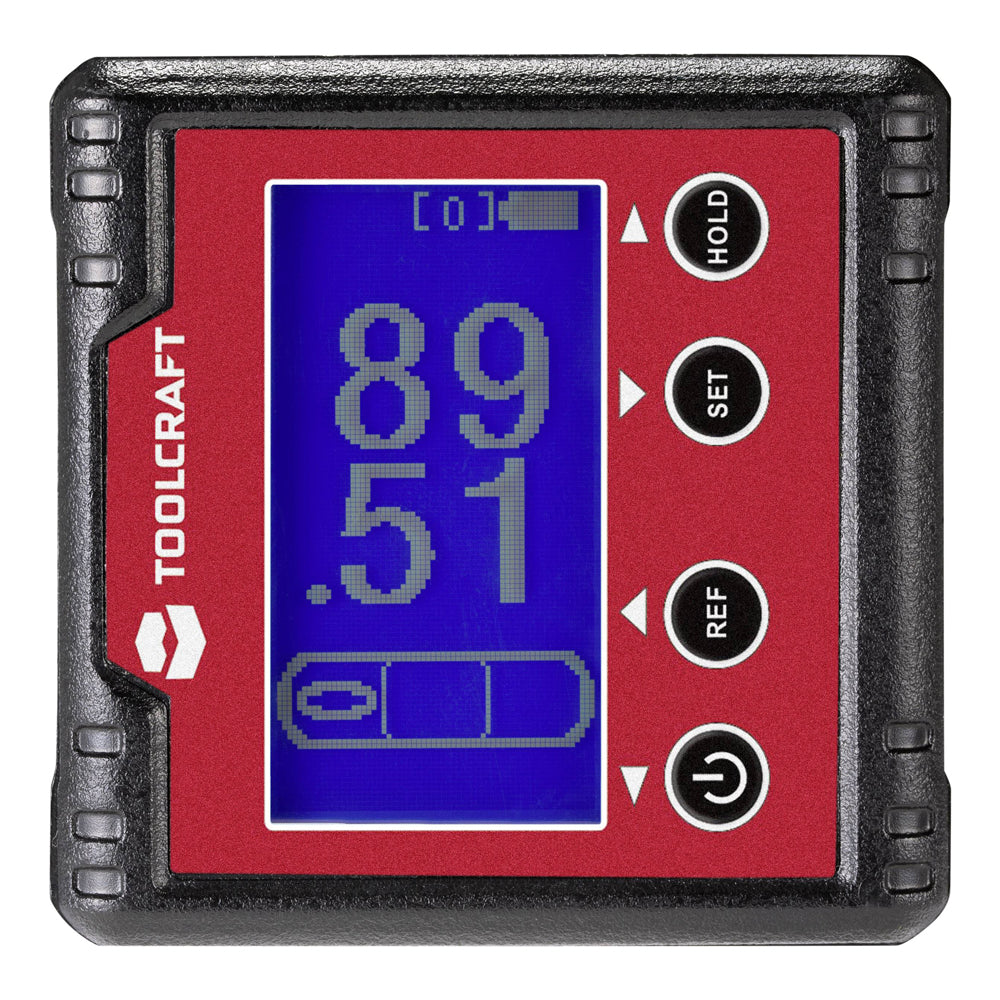

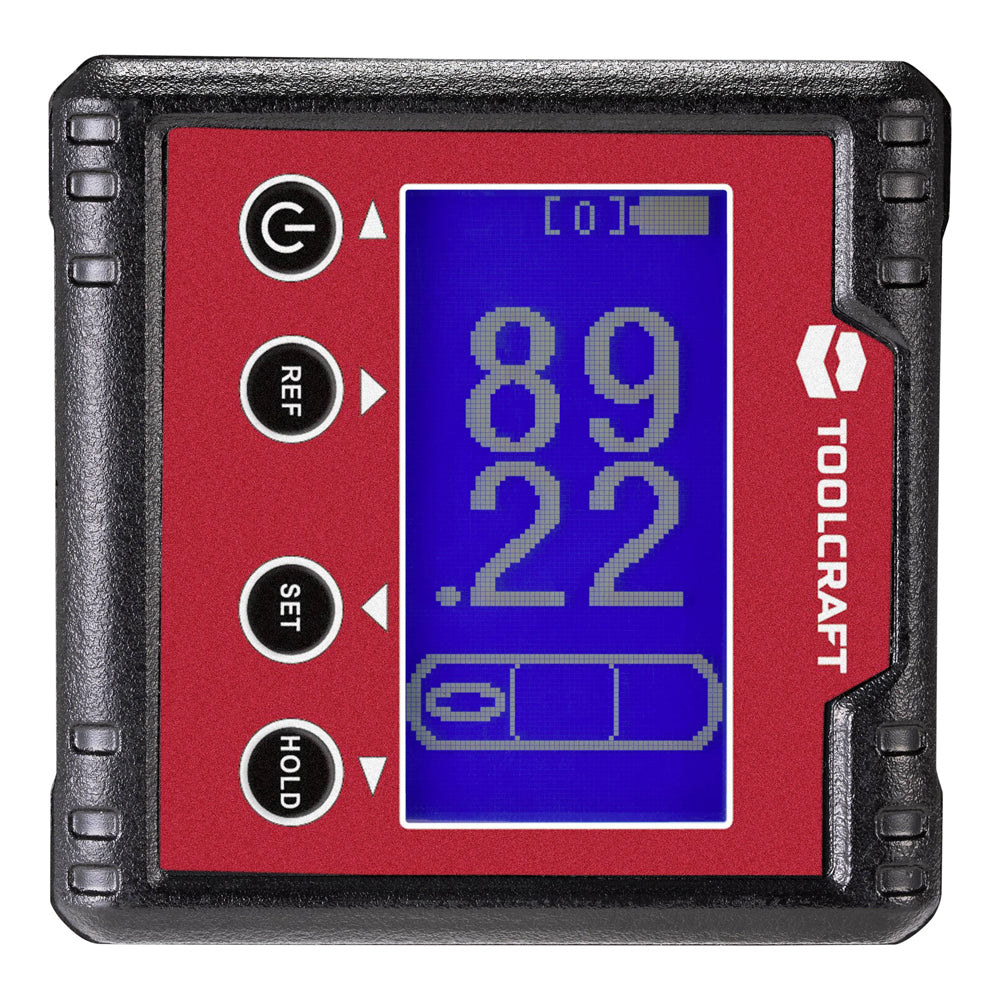

- Large LCD display with digital box spirit level
- measures the angle of the X and Y axes in degrees, percentages and mm / m.
- 360 ° angular measurement
- high accuracy: ± 0.1 °
- automatic calibration
- automatic shutdown after 5 minutes
- thin and portable

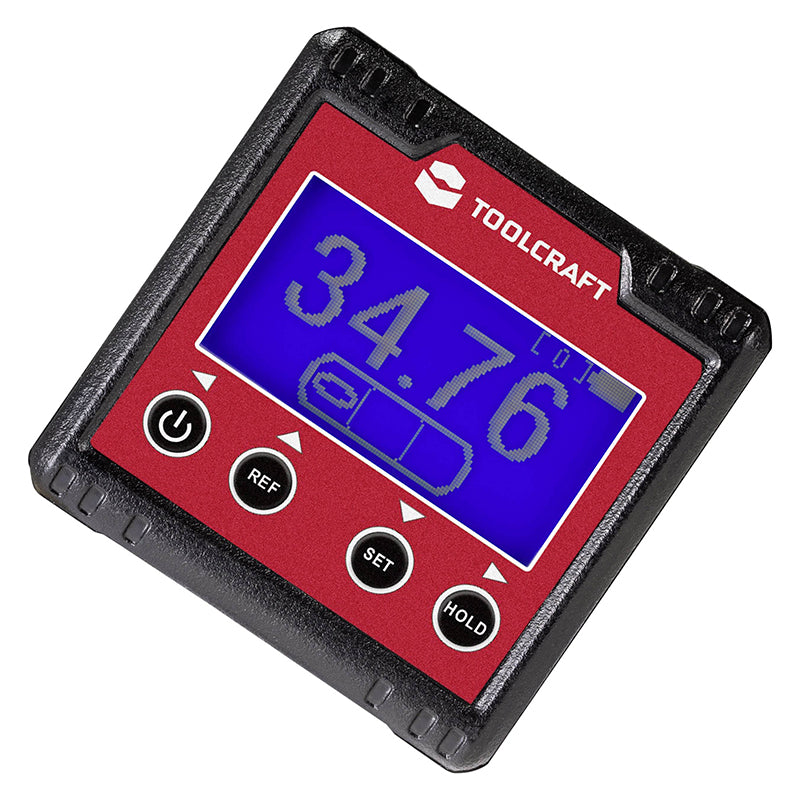

- rotary display
- high accuracy


Technical parameters:

- max. adjustable angle: 360 °
- accuracy: ± 0.1 °
- material: ABS plastic, PC
- length: 70 mm
- width: 70 mm
- height: 31.3 mm
- dimensions: (l x w x h) 70 x 70 x 31.3 mm
- weight 127 g
- calibrated according to: without certificate
- type: TO-6547356
- protection: IP42
- power supply: 2 x AA batteries (delivered without batteries)

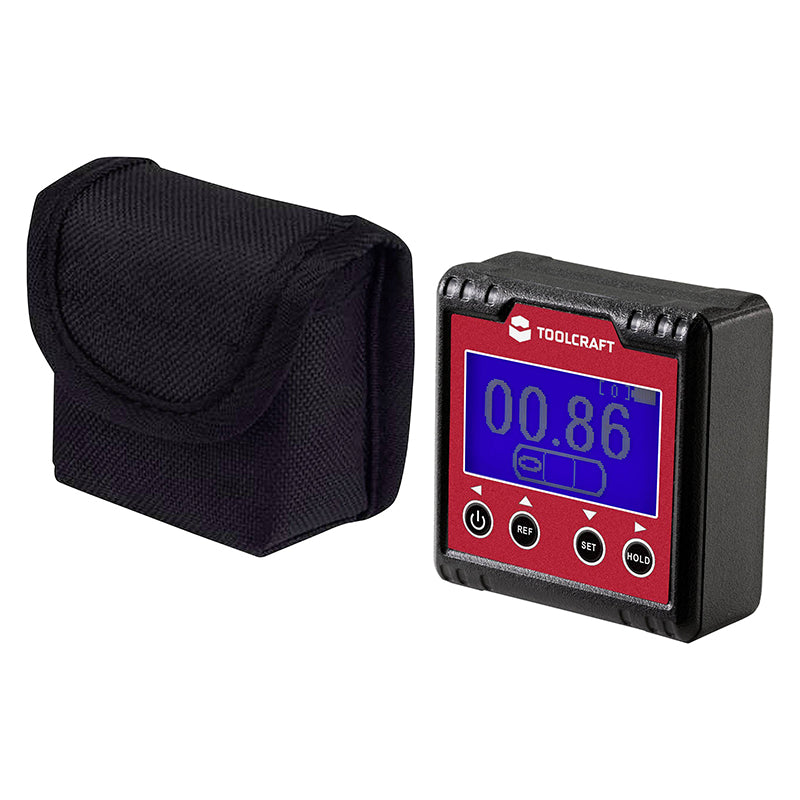

Scope of delivery:
- digital spirit level
- case
- Operating Instructions
