Protective circuit and balancer for 4 Li-Ion cells 18650, current up to 30A
BMS protection circuit and balancer - for 4 Li-Ion/LiFePO4 18650 cells, suitable for 14.4V voltage, 14.8V and 16.8V, supply voltage 4.25V ±0.025V, max. charging and load current 30A, overload protection max. 60A, overcharge protection <4.25V, charging resumes <4.15V, discharge protection >2.50V, discharging resumes >3V, short-circuit protection, dimensions 50 × 23 mm, requires professional installation
Will be restocked
Expected shipping:
28.09.2026
at our place
Regular price
51,00 Kč
42,15 Kč
excl. VAT
Unit price
/
Unavailable
TIPA | SKU:
09830156
Product description

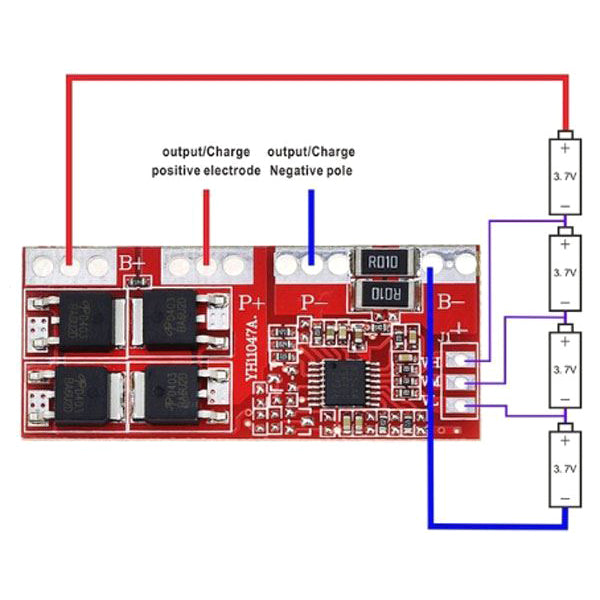

Protection and charging module for 4 Li-Ion or LiFePO cells with control of each cell separately. Suitable for voltages of 14.4V, 14.8V and 16.8V
Technical parameters:
- short circuit protection
- overload protection (max.60A)
- overcharge protection <4.25V
- recharge: <4.15V
- discharge protection> 2.50V
- discharge discharge:> 3V
- supply voltage: 4.25V ± 0.025V
- max. charging and load current 30A
- dimensions 50 × 23mm
The product is not a stand-alone unit, it requires professional installation.
Technical parameters:
- short circuit protection
- overload protection (max.60A)
- overcharge protection <4.25V
- recharge: <4.15V
- discharge protection> 2.50V
- discharge discharge:> 3V
- supply voltage: 4.25V ± 0.025V
- max. charging and load current 30A
- dimensions 50 × 23mm
The product is not a stand-alone unit, it requires professional installation.
