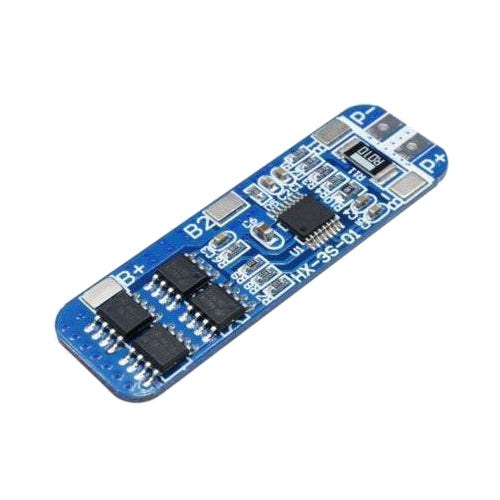

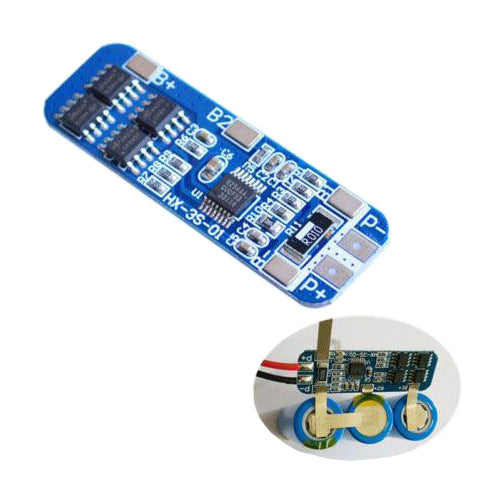

Protective circuit and balancer for 3 Li-Ion cells 18650, current up to 8A
BMS protection circuit and balancer - for 3 Li-Ion/LiFePO4 18650 cells, supply voltage 12.6–12.7V, max. charging and load current 8A, overload protection max. 10A, overcharge protection <4.25V, discharge protection >2.54V, short-circuit protection, standby current <6µA, individual check of each cell, dimensions 50 × 16 × 3 mm, requires professional installation
Will be restocked
Expected shipping:
28.09.2026
at our place
Regular price
61,00 Kč
50,41 Kč
excl. VAT
Unit price
/
Unavailable
TIPA | SKU:
09830112
Product description
Protection and charging module for three Li-Ion or LiFePO cells with control of each cell separately.
Technical parameters:
- supply voltage: 12.6-12.7 V
- short circuit protection
- overload protection (max.10A)
- overcharge protection <4.25 V
- discharge protection> 2.54 V
- max. charging and load current 8 A
- no-load current: <6uA
- dimensions: 50 × 16 × 3 mm
The product is not a self-functional unit, it requires professional assembly.
Technical parameters:
- supply voltage: 12.6-12.7 V
- short circuit protection
- overload protection (max.10A)
- overcharge protection <4.25 V
- discharge protection> 2.54 V
- max. charging and load current 8 A
- no-load current: <6uA
- dimensions: 50 × 16 × 3 mm
The product is not a self-functional unit, it requires professional assembly.
