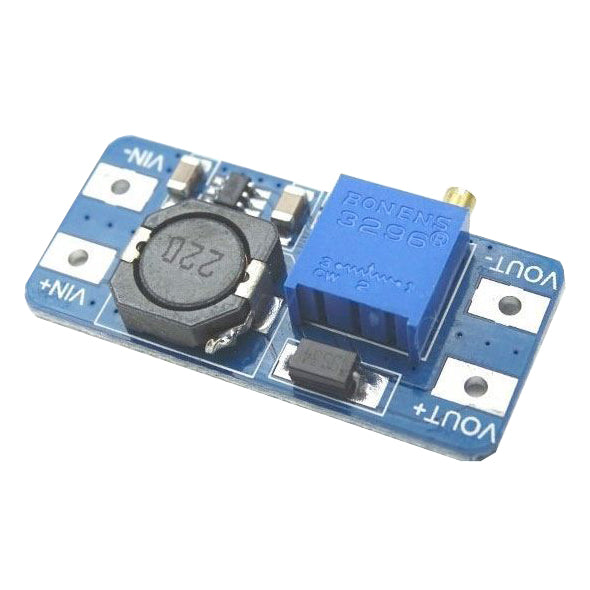

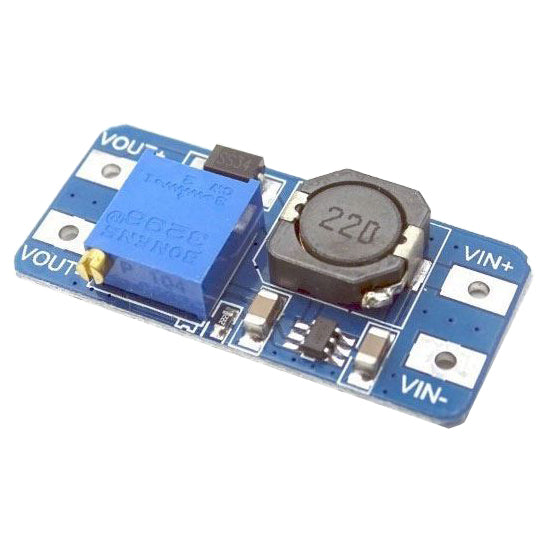

Power supply module, step-up converter 2A with MT3608
Step-up DC-DC converter - MT3608 chip, input voltage 2–24V, output voltage 2–24V adjustable by trimmer, output current max. 2A (up to 1A recommended), efficiency 93%, non-isolated switching converter, dimensions 36 × 17 × 14 mm, weight 4 g, recommended to add 2.2µF filter capacitors to both input and output, requires professional installation
Will be restocked
Expected shipping:
10.10.2026
at our place
Regular price
23,00 Kč
19,01 Kč
excl. VAT
Unit price
/
Unavailable
TIPA | SKU:
09830166
Product description
Non-insulated pulse converter DC-DC 2-24V / 2-24V adjustable with IC MT3608.
Technical parameters:
- input voltage: 2 - 24 V
- output voltage: 2 - 24 V adjustable
- output current: max.2 A (recommended up to 1A)
- efficiency: 93%
- dimensions: 36 × 17 × 14 mm
- weight: 4g
Notice:
- avoid a situation where the voltage at the input terminals is higher - than the one set at the output terminals. The inverter may be damaged. Therefore, before using for the first time, turn the trimmer fully to the left (counterclockwise). There will be approx. 24V at the output terminals - only gradually reduce the required voltage. We also recommend connecting a 2.2uF filter capacitor to the input and output terminals.
The product is not a stand-alone unit, it requires professional installation.
