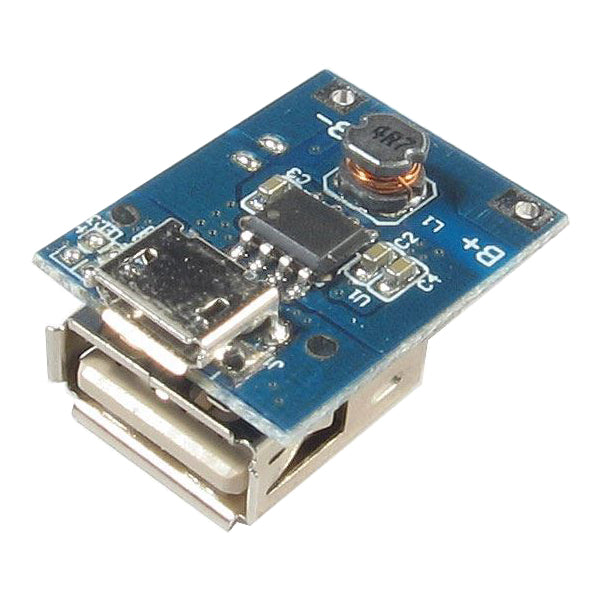

Power supply module, 5V step-up converter + Li-Ion charger
24% off
Step-up converter with Li-Ion charger - 5V input via USB Micro, 5V output via USB-A, input and output current max. 1A, charging Li-Ion or Li-Pol with a 4.2V limit, discharge protection below 2.9V, LED operation indication (flashing = charging, constant light = discharging), non-isolated module, dimensions 22 × 18 × 12 mm, weight 2 g, designed for power banks, requires professional installation
Will be restocked
Expected shipping:
10.10.2026
at our place
Sale price
13,00 Kč
Regular price
17,00 Kč
10,74 Kč
excl. VAT
Unit price
/
Unavailable
TIPA | SKU:
09830117
Product description
Inverter + Li-Ion charger with protection circuit. Universal module serving as a power source and charger. Ideal for powerbanks.
Technical parameters:
- input voltage 5V (micro USB)
- output voltage 5V (USB A)
- supply current: 1A (max)
- output current: 1A (max)
- Li-Ion or Li-Pol charging with limitation <4.2V
- discharge protection - disconnects the power supply when the cell voltage is <2.9V
- LED operation indication: flashing = charging, steady light = discharging
- dimensions 22 × 18 × 12mm / 2g
The product is not a self-functional unit, it requires professional assembly.
Technical parameters:
- input voltage 5V (micro USB)
- output voltage 5V (USB A)
- supply current: 1A (max)
- output current: 1A (max)
- Li-Ion or Li-Pol charging with limitation <4.2V
- discharge protection - disconnects the power supply when the cell voltage is <2.9V
- LED operation indication: flashing = charging, steady light = discharging
- dimensions 22 × 18 × 12mm / 2g
The product is not a self-functional unit, it requires professional assembly.
