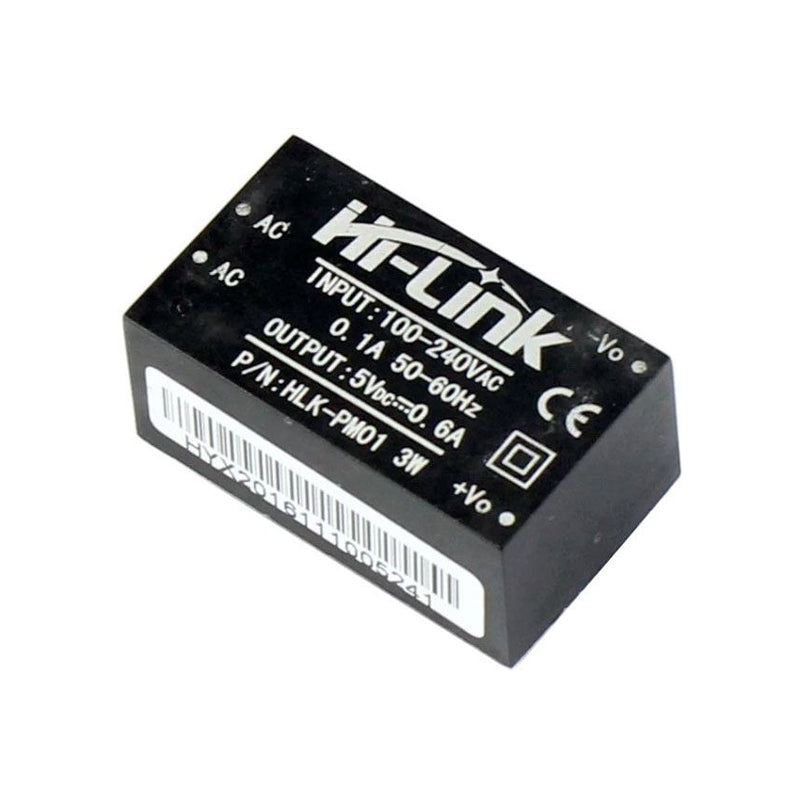

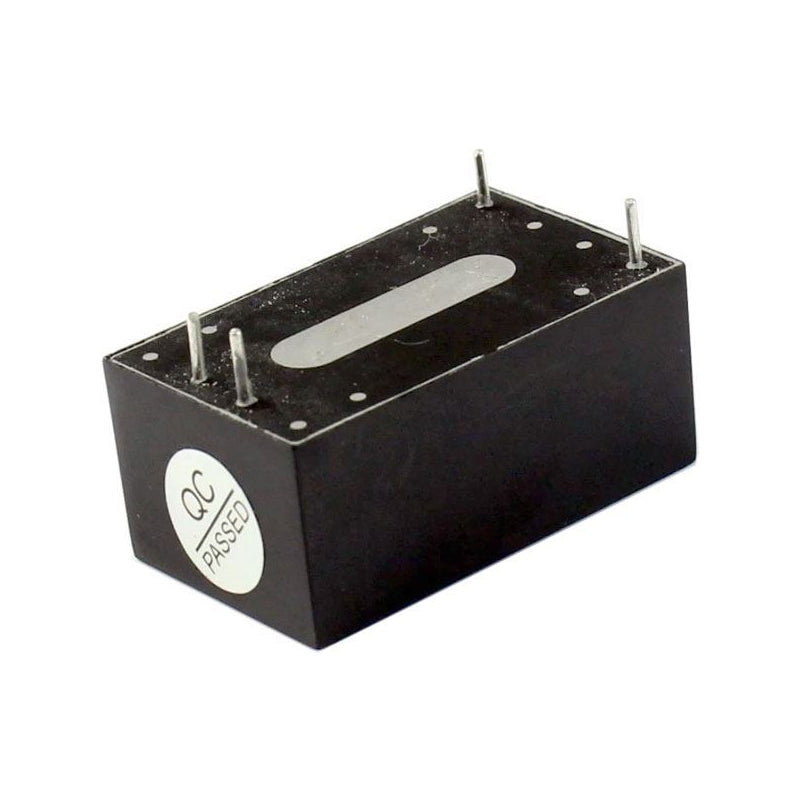

Power Supply HLK-PM01 – 5V / 0.6A / 3W
20% off
Switched-mode power module - output 5V DC, current 0.6A, power 3W, input voltage 100–264V AC (47–63Hz), short-circuit and overload protection, mounting directly on the PCB, dimensions 34.5 × 20.0 × 15.0 mm, operating temperature -20 to +60°C, suitable for IoT devices, microcontrollers and sensors, pack of 1
Not in stock
Sale price
79,00 Kč
Regular price
99,00 Kč
65,29 Kč
excl. VAT
Unit price
/
Unavailable
JYINS | SKU:
04220297
Product description
The HLK-PM01 is a miniature AC/DC power module that efficiently converts 230V AC to a stable 5V DC output with up to 0.6A current. It is an ideal solution for powering IoT devices, microcontrollers, sensors, and other low-voltage electronics. Compact size, integrated protections, and high efficiency make it perfect for PCB integration.
Technical Specifications:
- input voltage: 100–264V AC (47–63Hz)
- output voltage: 5V DC
- maximum output current: 0.6A
- power: 3W
- short-circuit and overload protection
- high efficiency and low heat loss
- operating temperature: -20 to +60 °C

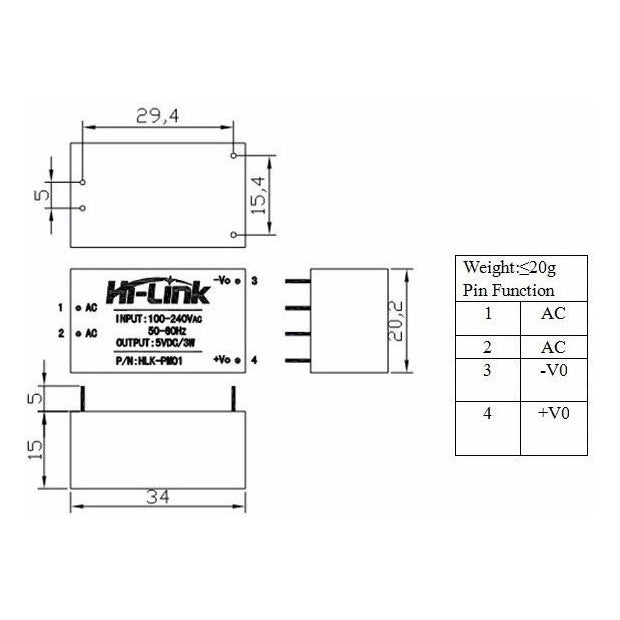

- dimensions: approx. 34.5 × 20.0 × 15.0 mm
- mounting: for PCB (printed circuit board)
Packing: 1pc
Technical Specifications:
- input voltage: 100–264V AC (47–63Hz)
- output voltage: 5V DC
- maximum output current: 0.6A
- power: 3W
- short-circuit and overload protection
- high efficiency and low heat loss
- operating temperature: -20 to +60 °C
- dimensions: approx. 34.5 × 20.0 × 15.0 mm
- mounting: for PCB (printed circuit board)
Packing: 1pc
