PIR sensor T-3002 for mounting in 20mm hole

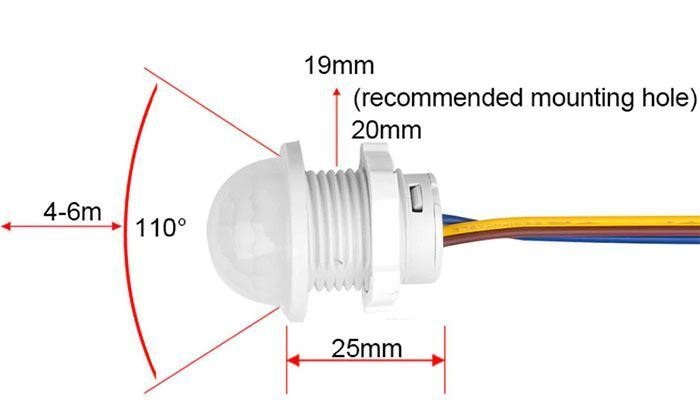

Recessed PIR sensor - type T-3002, mounting hole 20 mm, power supply 100–240VAC, max. switched power 40W, coverage angle 110°, detection distance 4–6 m, switching time 45 s, fixed parameters without adjustment option, max. installation height 3.5 m, IP22 rating, operating temperature -20 to +40°C, suitable for interior mounting in suspended ceilings and luminaires

Show full description
Will be restocked
Expected shipping: 15.10.2026 at our place
85,00 Kč 70,25 Kč excl. VAT
HADEX  |  SKU: 08831628  |  Barcode: 8596425141289
Log in for VAT-free pricing

Product description

PIR sensor with fixed parameters for switching appliances with a maximum power of 40W.

Technical parameters:

- Power supply.
- Angle of incidence: 110°.
- Detection distance: 4-6m
- Switching time: 45sec
- Installation height: max.3,5m
- Coverage: IP22
- Operating temperature: -20° to +40°C
