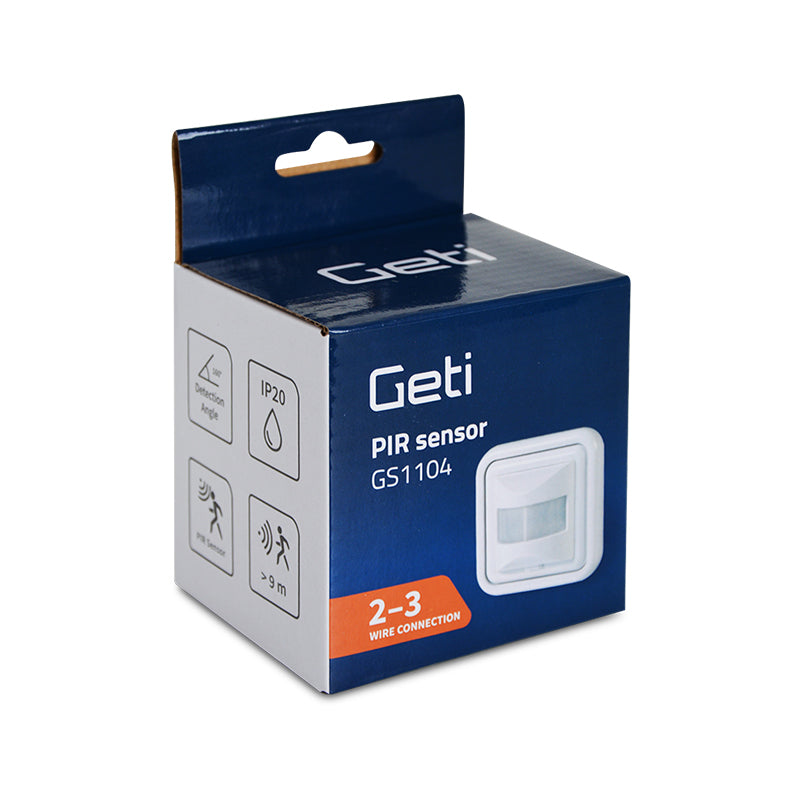

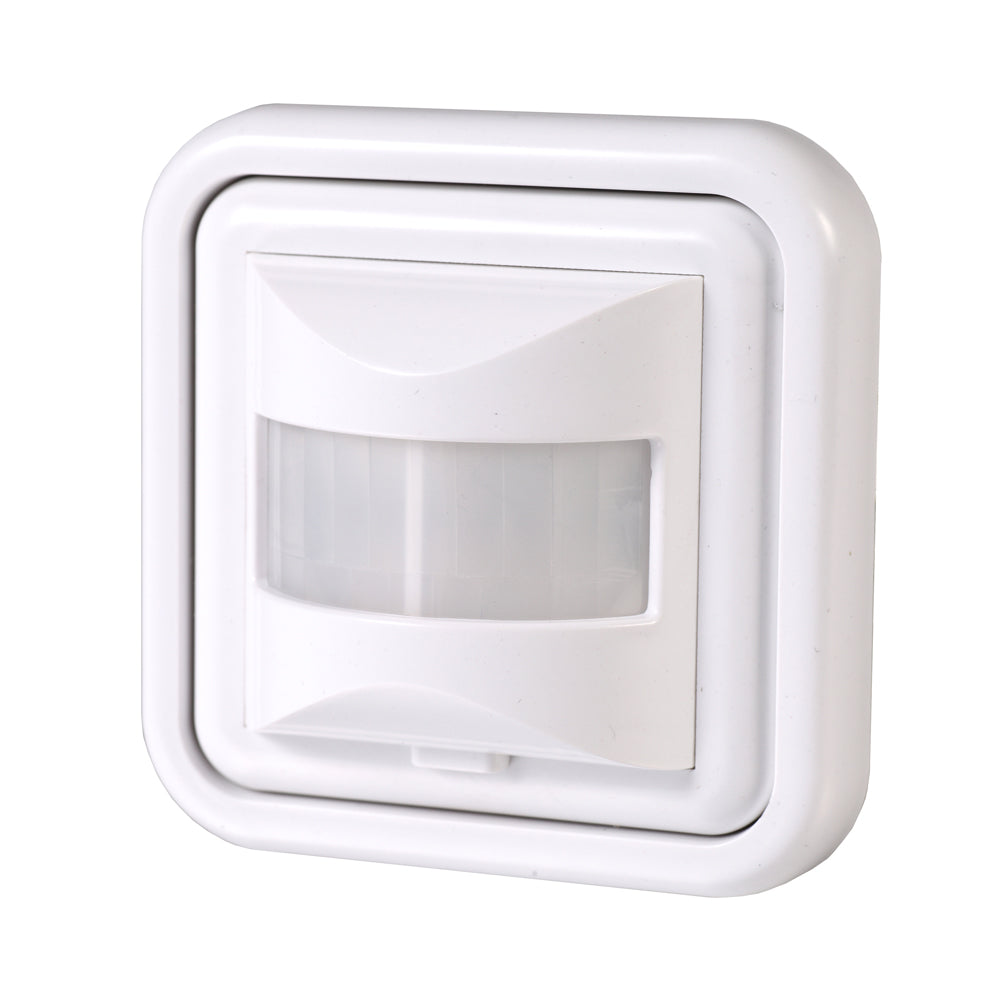

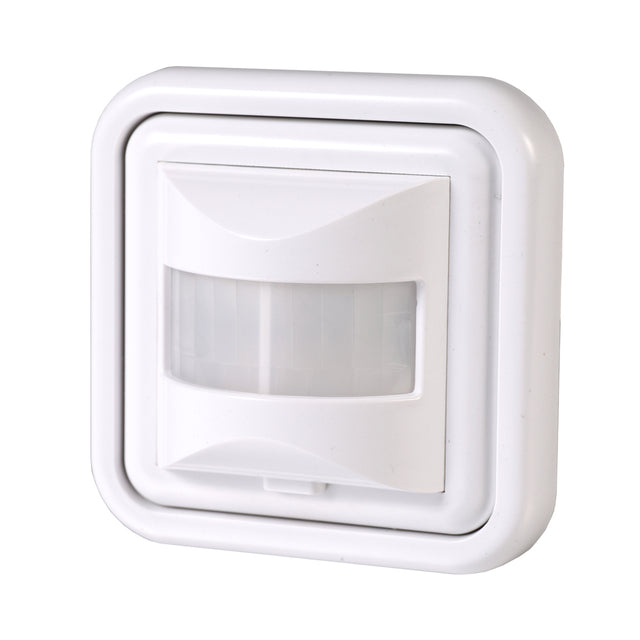

PIR sensor GETI GS1104

Motion switch from the new GETI GS1104 motion sensor range.
The sensor meets the demanding requirements not only for design but especially for function, it is intended for mounting instead of switch with 2- / 3-wire connection. It responds immediately to human movement in the sensor's detection zone by radiating infrared rays. It follows your chosen space (room, garden, yard, space in front of the entrance to the house) and it lights up automatically if it detects movement in the evening or at night. Once movement stops, the device after set time itself goes out. Saves electricity because it only lights where people are moving (stairs, corridors, etc.).

Note: The device is designed for switching bulbs, compact fluorescent lamps or LED bulbs, it cannot be used
for switching purely inductive loads (fans, etc.).


Product parameters:
- simple installation instead of switch in standard wiring boxes
- possible day and night activity
- can be connected as 2-wire or 3-wire


Technical parameters:

- detection angle: 160 °
- sensor type: PIR
- operating voltage: 220-240V AC / 50 Hz
- rated load: 2-wire connection - 0-500W light bulb or other resistance load, - 5-200W energy saving or LED bulbs
3-wire connection - 0-500W light bulb or other resistance load, - 0-200W energy saving or LED bulb
- detection range: 9m max (<24 ° C)
- switching time: 10sec ± 3sec (min.), 7min ± 2min (max.)
- ambient lighting: 3-2000LUX (adjustable)
- protection class: IP20
- installation height: 1-1.8m
- operating humidity: <93 ° RH
- dimensions: 80 x 80 x 33 mm
- white color
