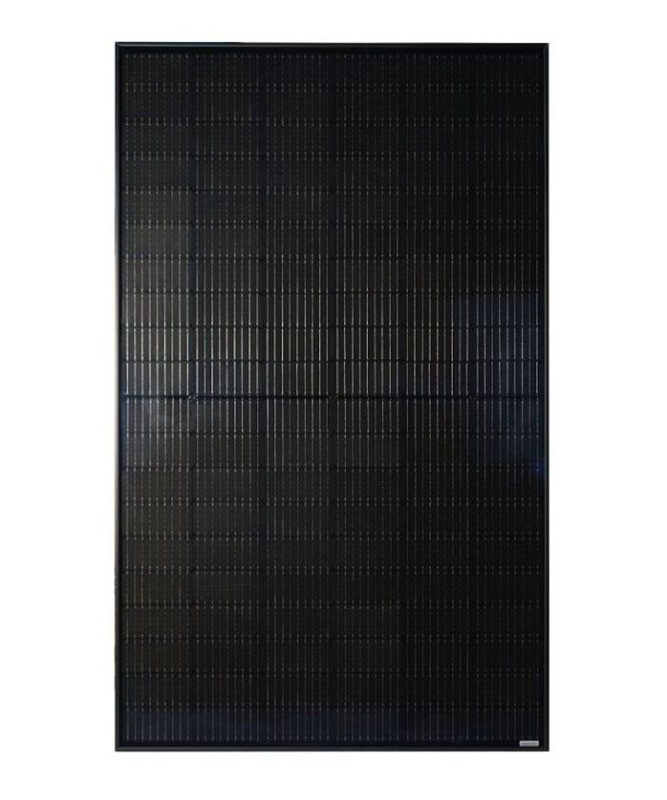

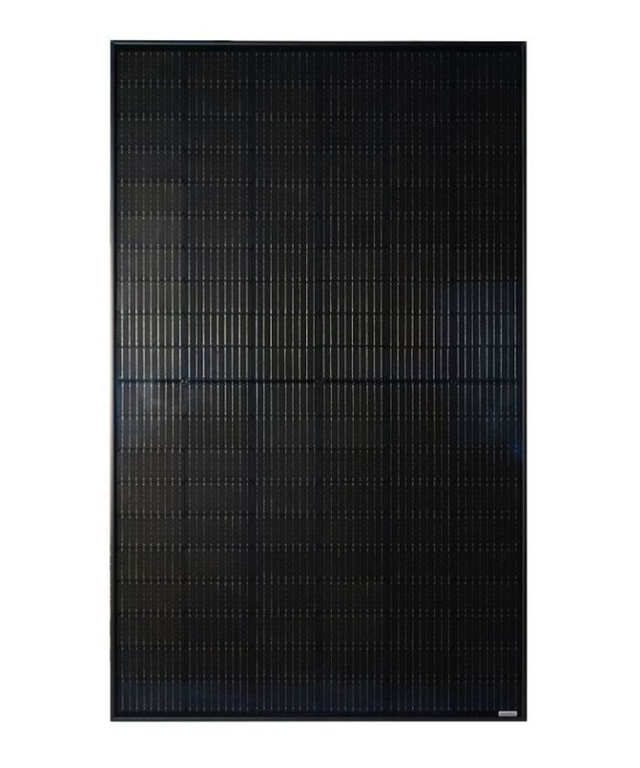

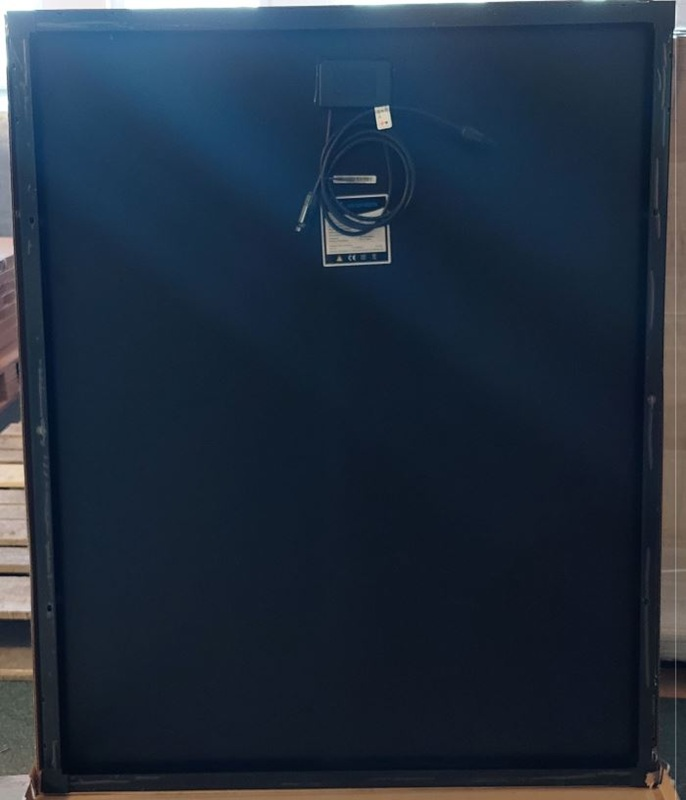

Photovoltaic solar panel 12V/200W monocrystalline

Photovoltaic solar panel 12V/200W, SZ-200-S,1100x890x30mm.
Photovoltaic panel made of monocrystalline silicon. Duralumin frame 30mm, cover glass. Due to the higher voltage Ump it is also suitable for MPPT controllers for system voltage 12V.

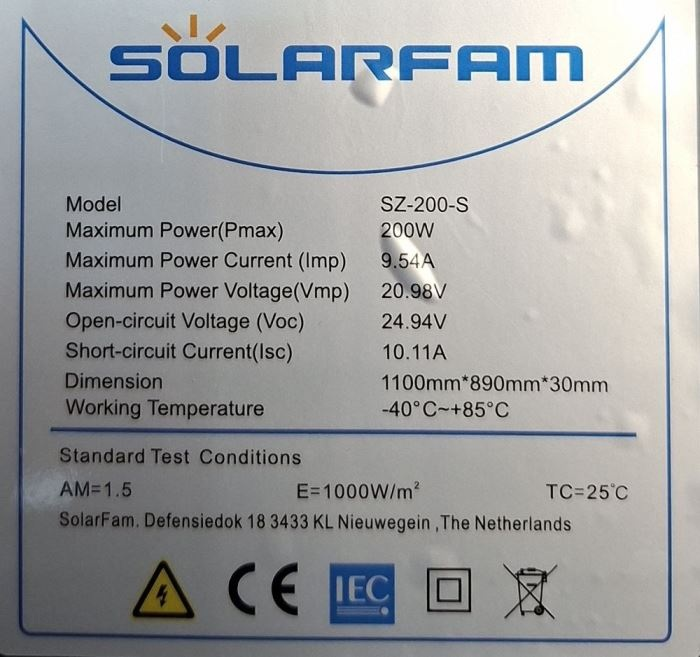

Technical parameters:

- SZ-200-S model.
- max.no-load voltage Voc=24,94V
- max.short-circuit current Isc=10,11A
- max.voltage at 200W load: Vmp=20,98V
- max.load current 200W: Imp=9,54A
- max.system voltage: 500V
- protection rating: IP67
- 900mm cables with MC-4 terminals
- working temperature: -40+85°C
- dimensions: 1100 x 890 x 30mm
- weight: 11,6kg

Monocrystalline cell
To produce a single crystal cell, a uniform quartz crystal ingot must be produced. Such production is quite demanding. The round ingot is then cut into so-called wafers, which are trimmed to the required PV cell size. Because the ingot is formed as one large silicon crystal, its structure is uniform and very clean.

Advantages of single crystal
Higher cell efficiency and therefore higher power yield from the same area. Slightly slower "aging" of the silicon, i.e. panel performance declines more slowly with time. Cell coloration is homogeneous, panels are not "speckled"
