Parking camera CARCLEVER SVC518
8% off
Parking camera with sensors - AHD camera 1080P HD, 2 integrated ultrasonic sensors, detection range 0.3–2.5 m, audible signalling 85–105dB, coverage angle 120°, minimum illumination 0.1 lux, 2× LED illumination, power supply 12–30V/130mA, IP68 rating, PAL format, dimensions 78 × 35 × 40 mm, 15 m connecting cable with 4PIN connector, operating temperature -20 to +70°C
In stock 2 pcs
Expected shipping:
12.10.2026
Sale price
1.055,00 Kč
Regular price
1.150,00 Kč
871,90 Kč
excl. VAT
Unit price
/
Unavailable
CARCLEVER | SKU:
06442801
Product description

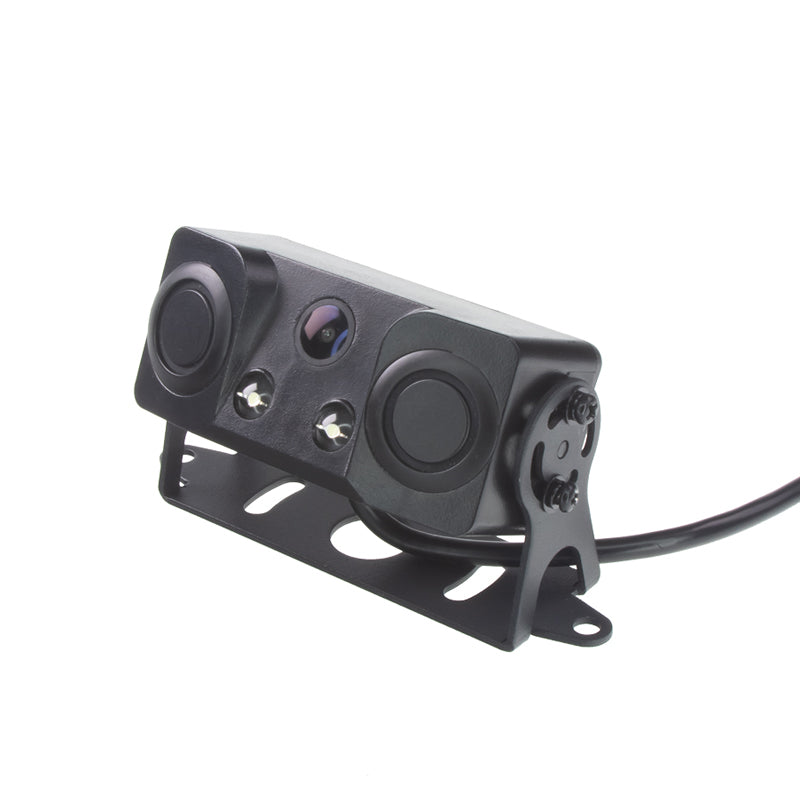

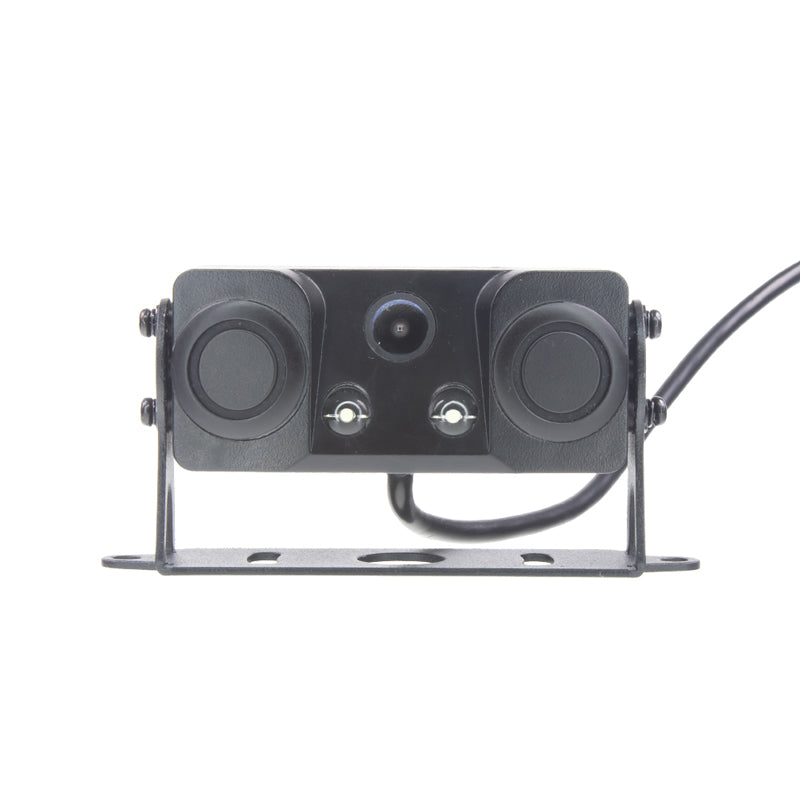

The rear parking system with 2 sensors built into the AHD camera is designed to detect obstacles behind the vehicle.
Signaling takes place acoustically and optically on any connected LCD display and by numerical display of the distance.

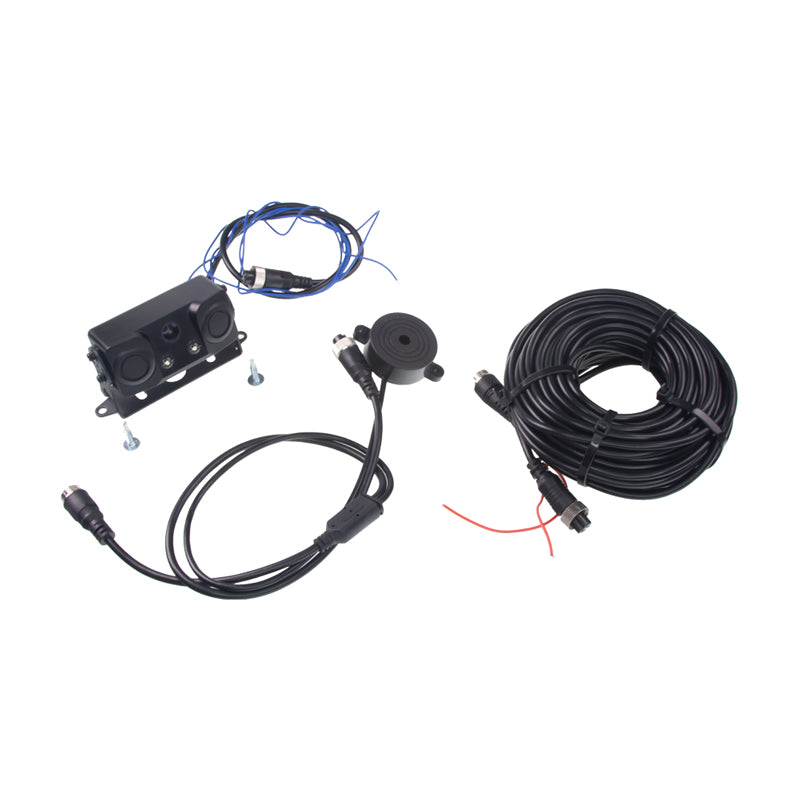

Connection using a 4PIN connector + 15 m connection cable included.
Technical parameters
supply voltage 12 - 30 V
current consumption approx. 130 mA
detection range 0.3 m - 2.5 m
1080P HD camera resolution
dimension 78mm x 35mm x 40mm
acoustic signaling 85 - 105 dB
minimum camera illumination 0.1 luX
IP68
PAL display format
2 x LED backlight
working temperature -20 o - + 70 oC
camera view angle 120°
Signaling takes place acoustically and optically on any connected LCD display and by numerical display of the distance.
Connection using a 4PIN connector + 15 m connection cable included.
Technical parameters
supply voltage 12 - 30 V
current consumption approx. 130 mA
detection range 0.3 m - 2.5 m
1080P HD camera resolution
dimension 78mm x 35mm x 40mm
acoustic signaling 85 - 105 dB
minimum camera illumination 0.1 luX
IP68
PAL display format
2 x LED backlight
working temperature -20 o - + 70 oC
camera view angle 120°
