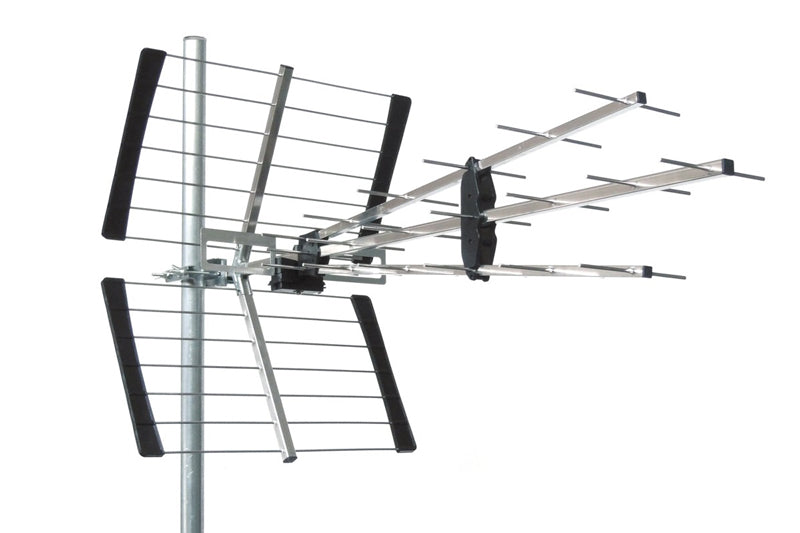

Outdoor antenna Emme Esse 45WS5G, 5G, silver ser., ch.21-48, foil, 1150mm

Outdoor directional UHF antenna - DVB-T/DVB-T2 band, channels 21–48, operating frequency 470–694MHz, gain 12.5–18dB, front-to-back ratio 30dB, passive suppression of 5G/LTE signals above channel 48 without a discrete filter, three director rows, length 1150 mm, Silver series aluminium alloy construction with black plastic parts, pre-assembled and ready for installation

Show full description
Will be restocked
Expected shipping: 20.10.2026 at our place
940,00 Kč 776,86 Kč excl. VAT
EMME ESSE  |  SKU: 14460861  |  Barcode: 8013679035190
Log in for VAT-free pricing

Product description

The 45WS5G antenna has three director lines on top of each other and is from the renowned Italian manufacturer Emme Esse. The antenna is calculated to receive television on channels 21 to 48, and although it does not contain any filter from discrete components, it suppresses reception above channel 48 (interfering mobile internet signals in the 5G and LTE bands). It is also suitable for remote DVB-T and DVB-T2 transmitters. The antenna is completely pre-assembled and ready for installation. The antenna is made in the Silver series in the basic surface treatment of aluminum alloy with black plastic parts.

Technical parameters :

- operating frequency : 470 - 694 MHz
- channels : 21-48
- gain : 12.5 to 18dB
- rear-to-back ratio : 30 dB
- output impedance : 75 ohm
- connection : connector F
- horizontal beam angle : 40 ° to 20 °
- number of elements : 35
- mechanical load to the mast at 120 km/h : 10,6 kg
- weight : 2.2 kg
- length : 1150mm
- transport packaging : foil
