Outdoor antenna Emme Esse 45SL5G, 5 LTE free, blue in foil, 1145mm

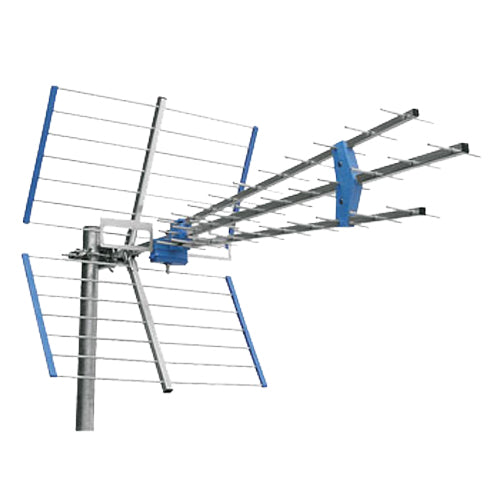

Outdoor UHF antenna - channel band 21–60, operating frequency 470–786MHz, 5G LTE filter (794–858MHz), gain 12–17dB, front-to-back ratio greater than 32dB, horizontal beam angle 20°–40°, output impedance 75?, F connector connection, aluminium alloy with basic surface finish, length 1145 mm, blue plastic parts, DVB-T/DVB-T2 reception
Will be restocked
Expected shipping:
20.10.2026
at our place
Regular price
1.049,00 Kč
866,94 Kč
excl. VAT
Unit price
/
Unavailable
EMME ESSE | SKU:
14460904
Product description
This antenna is intended for places where we want to receive DVB-T signal. It has excellent reception characteristics and so is used especially where the reception level is low. The new filter filters out the 5G LTE band (794-858MHz), which is newly used for mobile internet transmission. It can of course also be used to receive terrestrial DVB-T2 broadcasts. Surface treatment of AL alloy elements is basic, plastic parts are in blue color.
Technical parameters :
- operating frequency : 470 - 786 MHz
- channels : 21 - 60
- gain : 12 to 17 dB
- anterior-posterior ratio : greater than 32 dB
- output impedance : 75 ohm
- connection : connector F
- beam beam angle in horizontal plane : 20 ° to 40 °
- number of elements : 41
- mechanical load to the mast at 120 km/h : 10,6 kg
- weight : 2,5 kg
- length : 1145 mm
- packaging : in PE foil
Technical parameters :
- operating frequency : 470 - 786 MHz
- channels : 21 - 60
- gain : 12 to 17 dB
- anterior-posterior ratio : greater than 32 dB
- output impedance : 75 ohm
- connection : connector F
- beam beam angle in horizontal plane : 20 ° to 40 °
- number of elements : 41
- mechanical load to the mast at 120 km/h : 10,6 kg
- weight : 2,5 kg
- length : 1145 mm
- packaging : in PE foil
