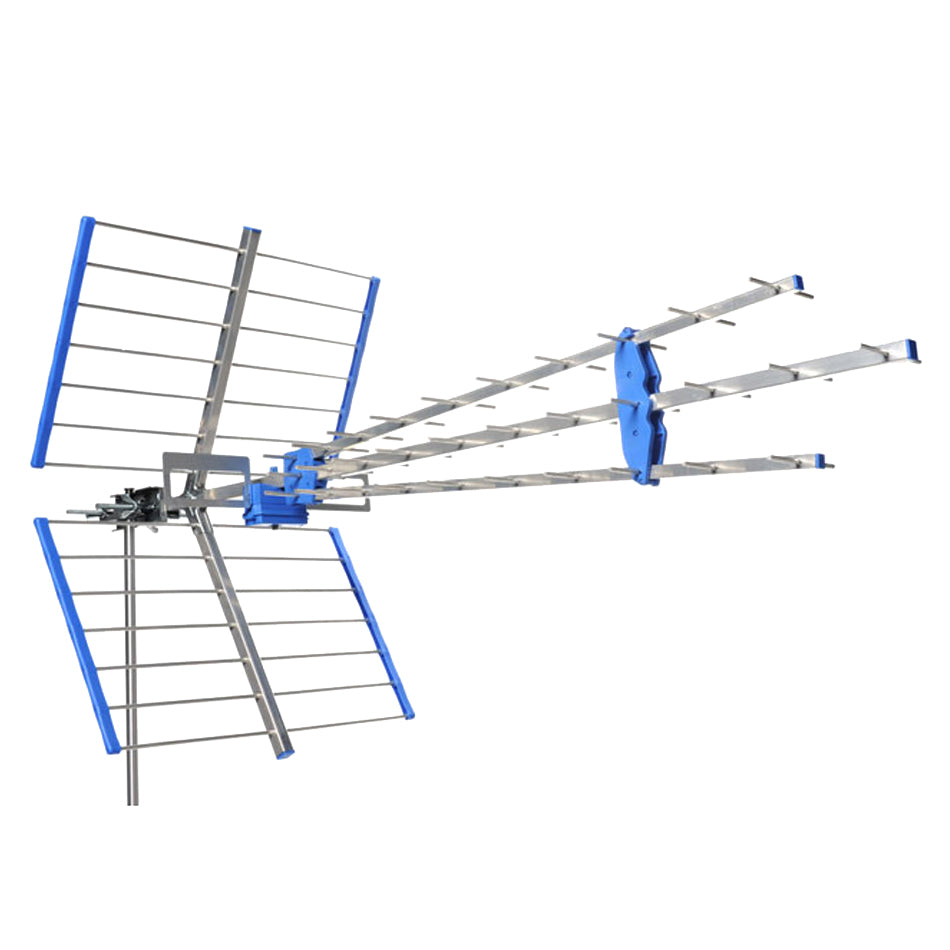

Outdoor antenna Emme Esse 45L5G, LTE free, blue in a box, 1145mm
Outdoor UHF antenna - channel band 21–48, operating frequency 470–786MHz, LTE filter (794–858MHz), 41 elements, gain 12–17dB, front-to-back ratio greater than 32dB, horizontal beam angle 20°–40°, output impedance 75?, F connector connection, aluminium alloy, length 1145 mm, blue colour of plastic parts, DVB-T/DVB-T2 reception
In stock 7 pcs
Expected shipping:
25.09.2026
Regular price
1.106,00 Kč
914,05 Kč
excl. VAT
Unit price
/
Unavailable
EMME ESSE | SKU:
14460905
Product description
This antenna is designed for places where we want to receive a DVB-T signal. It has excellent reception properties and is therefore used especially where the level of the received signal is low. The new LTE filter filters out the LTE band (794 - 858), in which mobile internet is newly transmitted. Easy connection via F connector.
Technical parameters :
- working frequency : 470 - 786 MHz (LTE filter)
- channels : 21 - 48
- gain : 12 to 17 dB
- anteroposterior ratio : greater than 32 dB
- output impedance : 75 ?
- connection : connector F
- beam beam angle in the horizontal plane : 20 ° to 40 °
- number of elements : 41
- mechanical load to the mast at 120 km/h : 10.6 kg
- weight : 2.5 kg
- length : 1145 mm
- packed in a printed box: 117 x 35 x 10 cm
Technical parameters :
- working frequency : 470 - 786 MHz (LTE filter)
- channels : 21 - 48
- gain : 12 to 17 dB
- anteroposterior ratio : greater than 32 dB
- output impedance : 75 ?
- connection : connector F
- beam beam angle in the horizontal plane : 20 ° to 40 °
- number of elements : 41
- mechanical load to the mast at 120 km/h : 10.6 kg
- weight : 2.5 kg
- length : 1145 mm
- packed in a printed box: 117 x 35 x 10 cm
