Outdoor antenna Emme Esse 454PG, LTE Free

Outdoor UHF panel antenna - channels 21–48, LTE Free, 4 full-wave dipoles with reflector wall, aluminium alloy construction with anti-corrosion finish, white design, patented dipole opening system for compact packaging, can be arranged in systems of 2 or 4 panels using combiners, suitable for locations with a non-homogeneous TV signal

Show full description
Will be restocked
Expected shipping: 20.10.2026 at our place
737,00 Kč 609,09 Kč excl. VAT
EMME ESSE  |  SKU: 14460907  |  Barcode: 8013679025795
Log in for VAT-free pricing

Product description

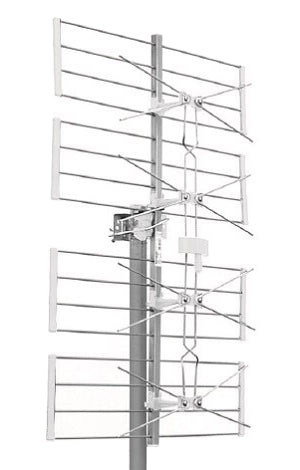

The 454PG LTE Free antenna is a panel antenna for locations where reception conditions are poor, where the TV signal is inhomogeneous and a long antenna in such a place is not suitable. The design of the antenna is similar to previous network antennas - 4 full wave dipoles and reflector wall. Unlike earlier antennas, this antenna is entirely made of aluminum alloy, plus it is treated with an anti-corrosion process, the resulting color is white. The design of the antenna is solid and compact, and the patented dipole opening system allows the packaging volume to be reduced. It is possible to arrange these panels into systems (side by side, above each other or in a rhombus), to combine them with Emme Esse Combiners combiner no. 14411199 (2 antennas) or 14411200 (4 antennas).

Technical parameters :

- working band : UHF (channels K21-K48, LTE band suppressed by built-in filter)
- number of elements : 4 whole-wave dipoles
- gain : 10-13 dB
- fore / aft ratio : 22 dB
- horizontal beam width : 60 ° - 32 °
- reflector height : 840 mm
- wind load : 6.3kg

Product parameters
