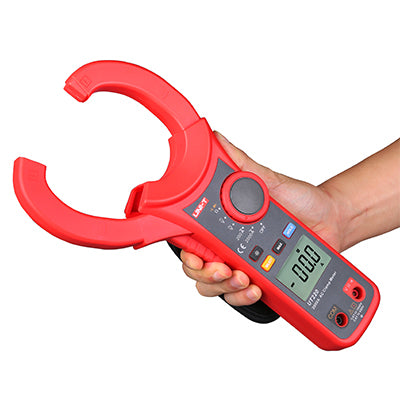

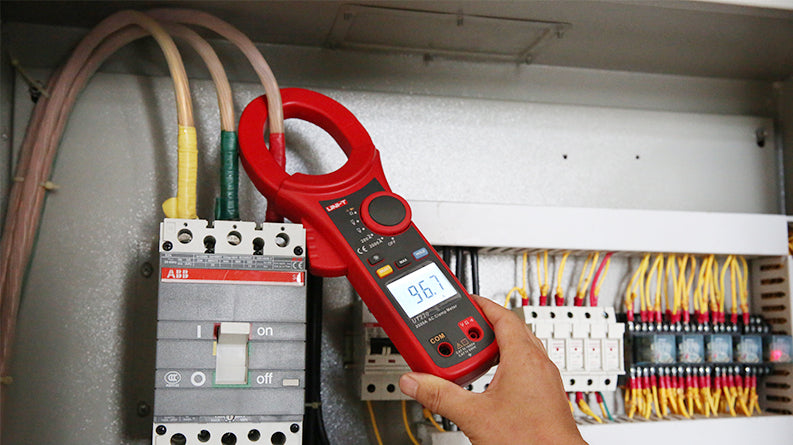

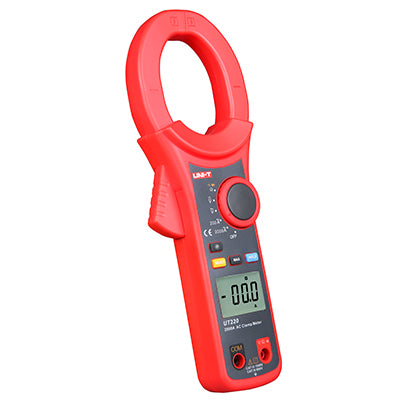

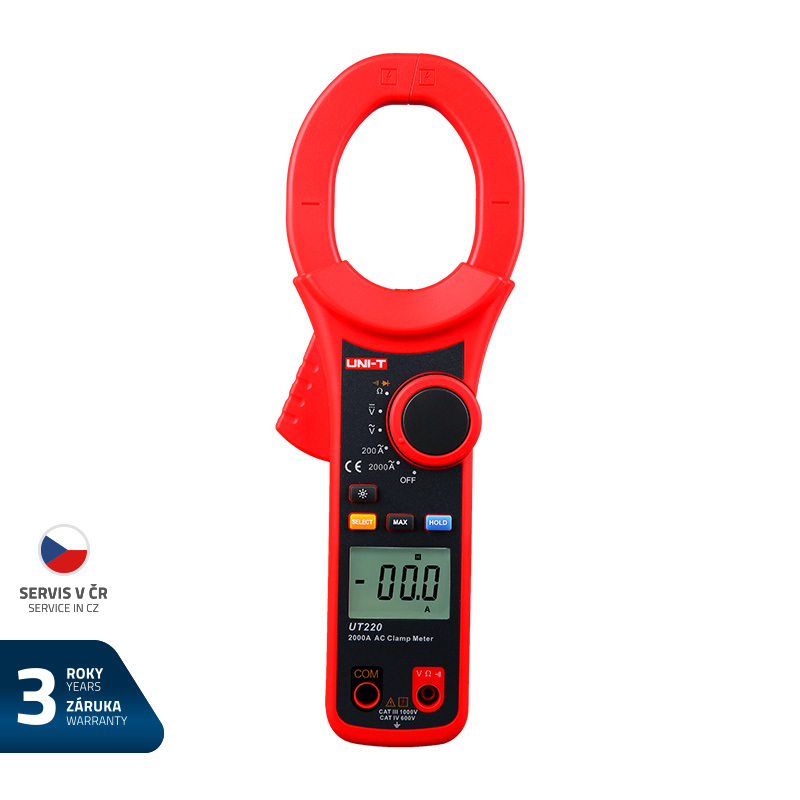

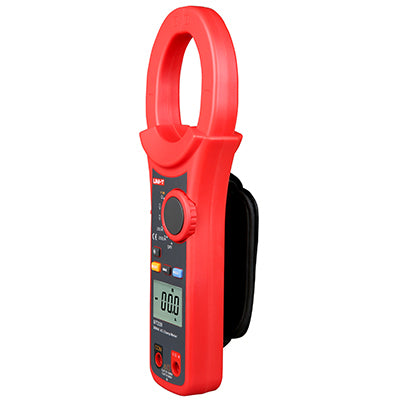

Multimeter UNI-T UT220 clamp
Recommended
AC clamp multimeter - max. current 2000A (ranges 200A/2000A), AC voltage up to 1000V, DC voltage up to 750V, resistance up to 20M?, 2000-count display, clamp diameter 63 mm, automatic range selection, Data Hold function, Max mode, diode test, continuity testing, display backlight, auto power off, input impedance 10M?, powered by a 9V alkaline battery, dimensions 298 × 100 × 48 mm, weight 390 g, tips and case included, 3-year warranty
In stock 13 pcs
Expected shipping:
29.09.2026
Regular price
1.150,00 Kč
950,41 Kč
excl. VAT
Unit price
/
Unavailable
UNI-T | SKU:
07720177
Product description
This product comes with a 3-year warranty.
UNI-T UT220 - 2000A clamp meter
SPECIFICATION
Alternate current
200A/2000A
accuracy ±(2.5%+5)
Alternate voltage
2V/20V/200V/1000V
accuracy ±(1.2%+5)
Direct voltage
2V/20V/200V/750V
accuracy ±(0.8%+1)
Resistance
200?/2k?/20k?/200k?/2M?/20M?
accuracy ±(1%+2)
FUNCTIONS
Display Count 2000
Autorange
Jaw Capacity 63mm
Diode Test
Continuity Test
Data Hold
Max Mode
Display Backlight
Iconic Display
Auto Power Off
Low Battery Indication
Input Impedance 10M?+
GENERAL CHARACTERISTICS
Power: 9V alkaline battery
Size: 298x100x48mm
LCD Size: 43x30mm
Weight: 390g
