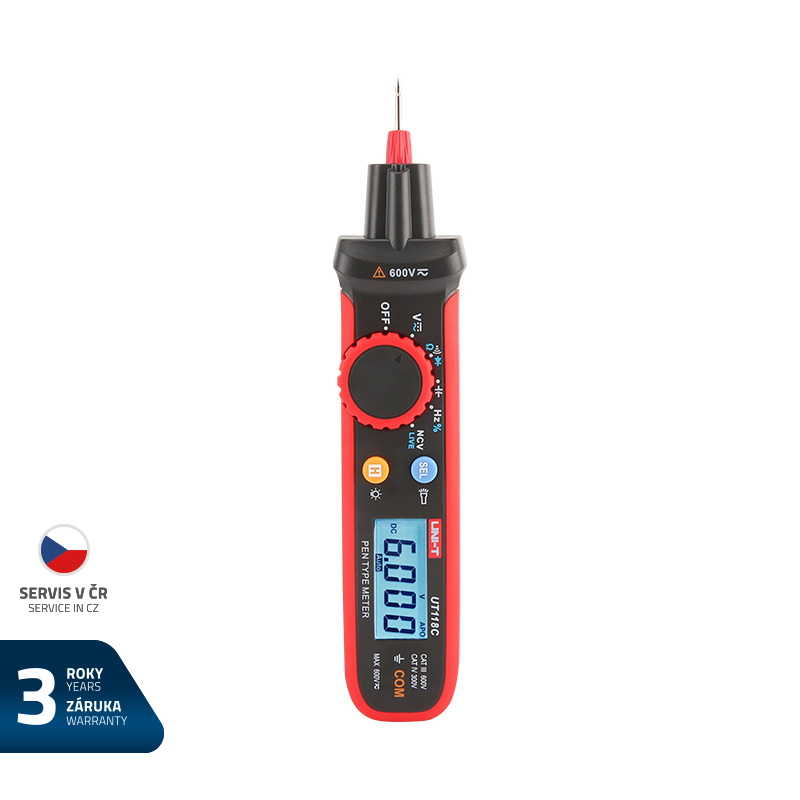

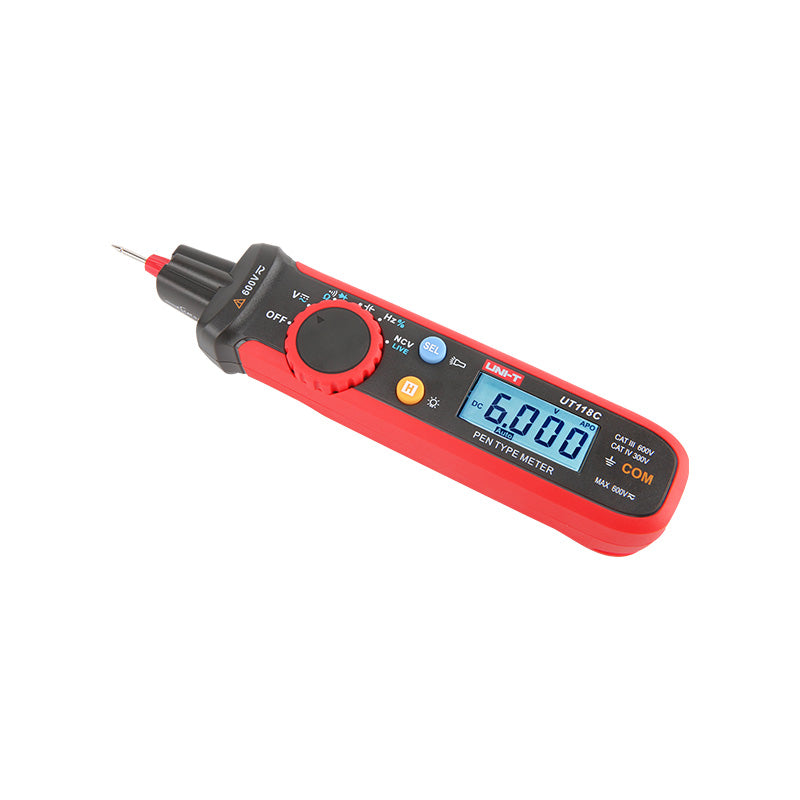

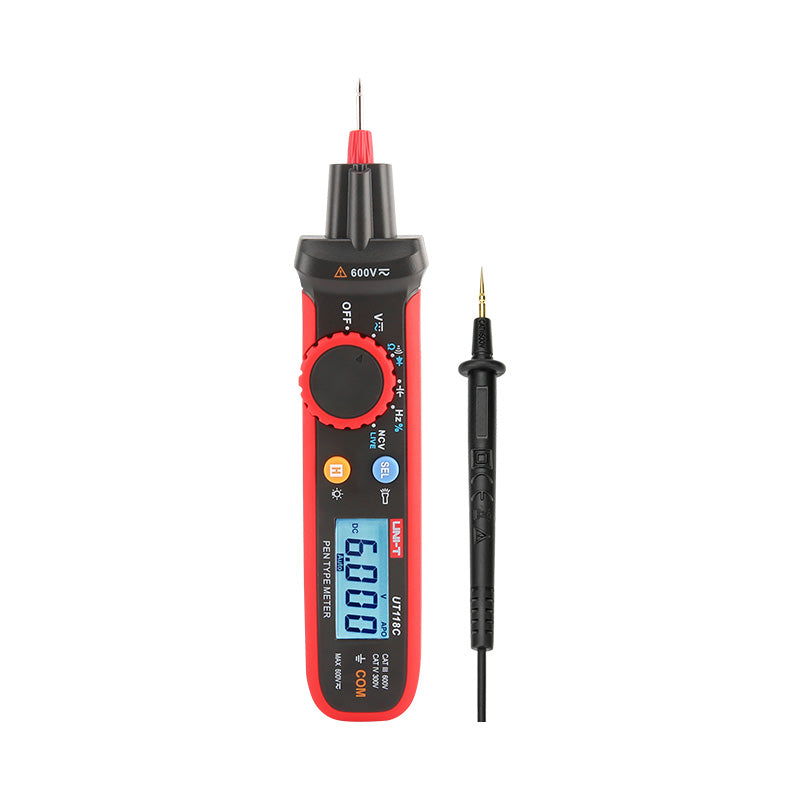

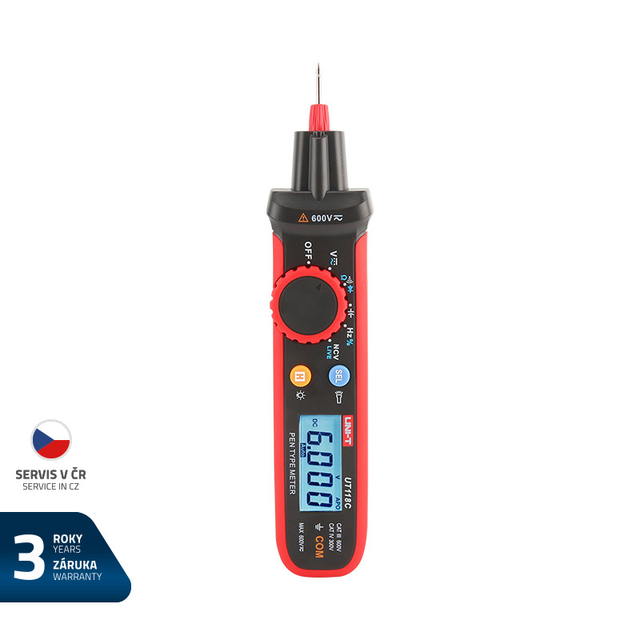

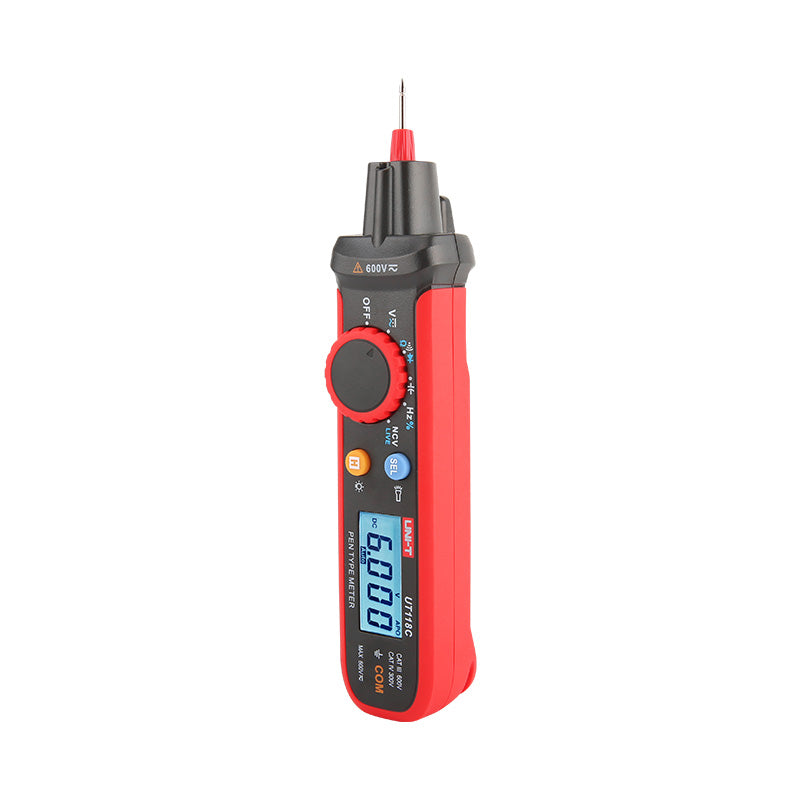

Multimeter UNI-T UT118C - PEN TYPE

This product comes with a 3-year warranty.

A miniature digital multimeter with an interesting and practical design, the UT118C Pen-type is a lightweight and durable instrument that boasts a True RMS measurement function, enabling accurate readings. With the ability to measure voltages up to 600V AC/DC, a wide range of resistance, capacitance and gold-plated test leads with special tips for versatility and safe operation (CAT III 600V and CAT IV 300V), it is an excellent and cost-effective choice for DIY home appliance repairers.
Equipped with an NCV function, the meter uses a red flashing LED and a buzzer to instantly indicate live wires, ensuring greater safety when inspecting electrical equipment.


Product parameters:

- True RMS
- display 6000
- CAT III 600V/CAT IV 300V
- voltage measurement 600 V DC / AC
- large resistance measurement: 60M?
- large capacity measurement: 60mF
- two-stage tip length adjustment
- gold-plated measuring wires with special tips, hardened phosphor bronze
- certification: CE (EMC, LVD), ROHS


Technical parameters:

- AC voltage (V): 6 V / 60 V / 600 V ±(1.%+3)
- DC voltage (V): 6 V / 60V / 600V ±(1%+4)
- resistance (?):
600 ? / 6 k? / 60 k? / / 600 k? ±(1%+3)
6 M? ±(1.5%+5)
60 M? ±(2.5%+5)
- capacity:
600.0 nF / 6 µF / 60 µF / 600 µF ±(3.5%+8)
6mF ±(5.0%+9)
60mF ±(10.0%+9)
- frequency: 99.99 Hz / 999.9 Hz / 9.999 kHz / 99.99 kHz / 999.9 kHz ±(0.01%+5)
- max. display: 6000
- alternating: 0.1% to 99.9%
- NCV / LIVE test
- True RMS
- diode test
- resistance test
- auto range
- HTN LCD display 36 x 15 mm / dual color indicator

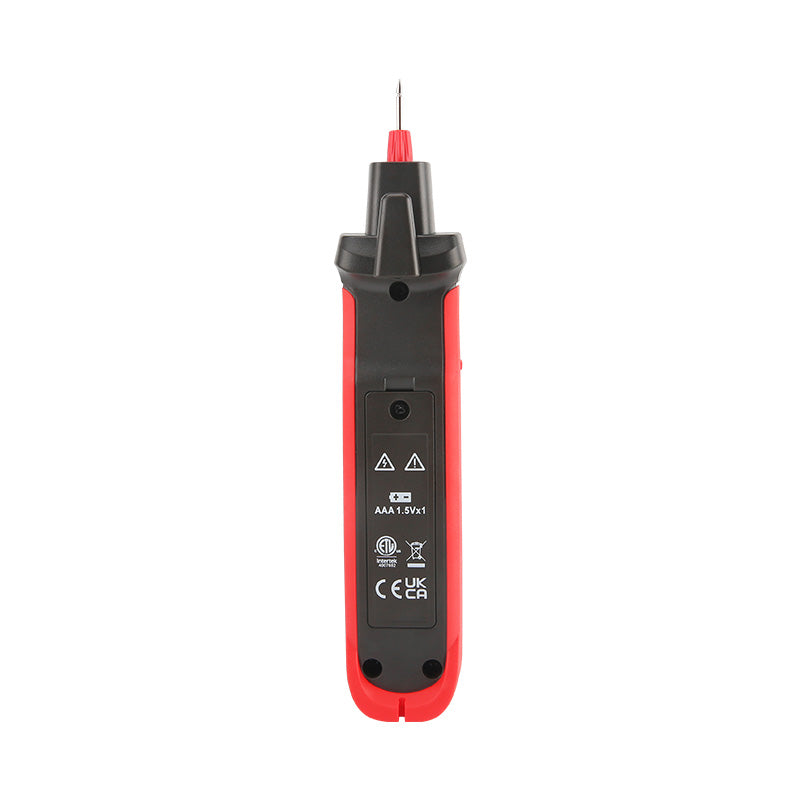

- power supply: AAA 1.5V battery × 1 (included in the package)
- product dimensions: 182.5 mm x 38.0 mm x 38.5 mm
- product color: gray + red

Manufacturer: UNI-TREND
