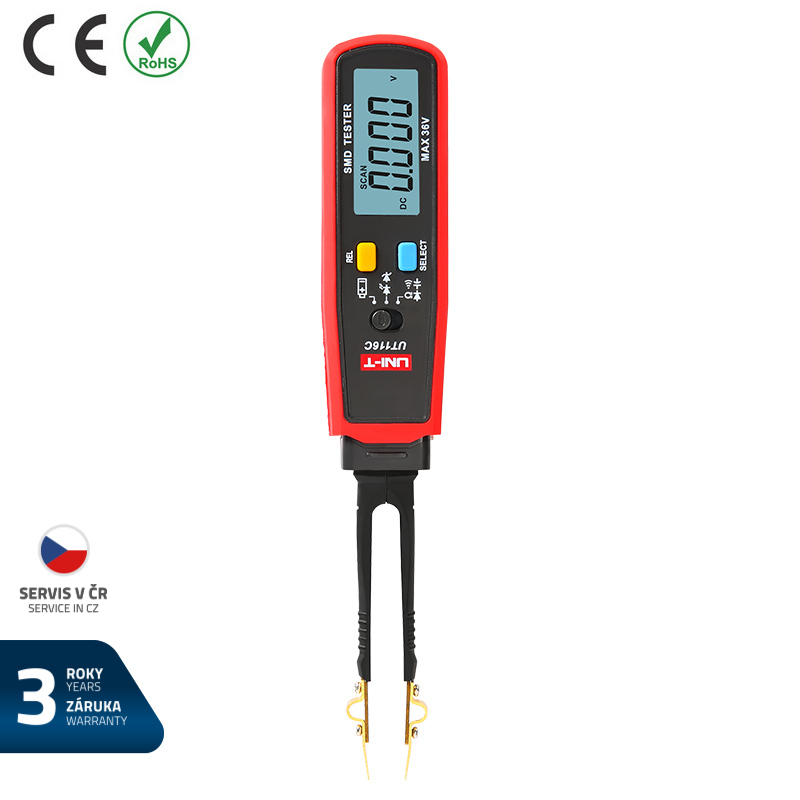

Multimeter UNI-T UT116C

This product comes with a 3-year warranty. The UT116C tester is a SMD brazed electronic component testing device. On a 4-digit display with 6000 range it is possible to display resistance up to 60M?, capacity up to 100mF. It is also possible to test the diodes and the Zener as well as test the continuity of the circuits with resistance signaling less than 50?.

Product parameters :

- measurement of resistance, continuity of circuit, capacitance, diodes
- the pen can be rotated 180 ° from the tips, which is convenient for reading data from the display when measuring diodes / LEDs
- Zener polarity test
- Low battery test
- automatic shutdown when idle after 15 minutes

Technical parameters :

- display range : 6000
- automatic range switching
- resistance measurement : 60M?
- circuit continuity test : < 50?
- capacity measurement up to : 100 mF
- diode test : 3.2V
- LED test: stabilized voltage approx. 21 V / 1 mA
- battery testing at load current of 10mA
- power supply : battery 1,5 V (AAA) x 2pcs
- display dimensions : 39 mm x 20 mm
- external dimensions : 204 mm x 33 mm x 25 mm
- product weight : about 80 g
- product color : red and gray


Contents of individual package :

- UT116C tester : 1pc
- battery 1,5V (AAA) : 2pcs
- Czech and English manual
- a gift box


Packaging for wholesale customers :

- standard quantity per carton : 60pcs
- standard carton dimensions : 440 mm x 420 mm x 210 mm
- gross weight of carton : approx. 7.1 kg


MANUFACTURER : UNI-TREND
https://www.uni-trend.com/
