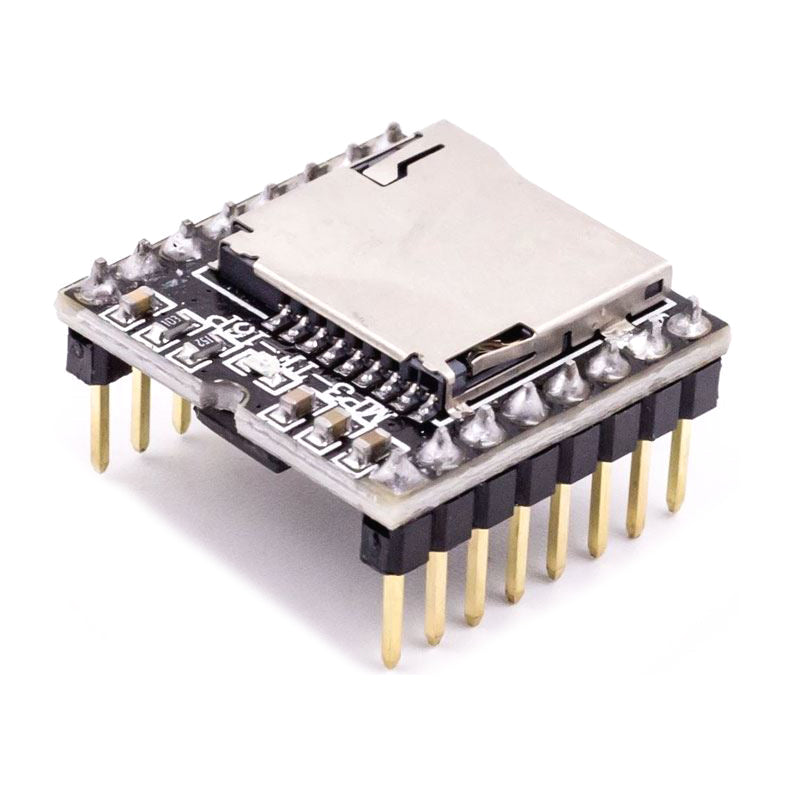

MP3 player mini MP3-TF-16P for Arduino
MP3 player module - GD3200B chip, power supply 3.2–5V, integrated 3W amplifier, MP3 format support, WAV, WMA, microSD card reader up to 32 GB (FAT16, FAT32), 24-bit DAC, dynamic range 90dB, SNR 85dB, sampling rate 8–48kHz, 30 volume levels, 6 equaliser levels, up to 100 folders of 255 tracks each, UART interface or buttons, dimensions 21 × 21 mm, designed for Arduino
Will be restocked
Expected shipping:
06.10.2026
at our place
Regular price
59,00 Kč
48,76 Kč
excl. VAT
Unit price
/
Unavailable
OEM | SKU:
09830210
Product description
MP3 player for Arduino, which can also work in autonomous mode. Including nf amplifier 3W. Micro SD card reader (max. 32GB).
Product parameters:
- GD3200B chip
- 3.2-5V power supply
- integrated 3W amplifier
- support for MP3, WAW, WMA formats
- microSD card support: FAT16, FAT32
- data transfer via serial port (UART) or via buttons
- supported sampling frequencies (kHz): 8 / 11,025 / 12/16 / 22,05 / 24/32 / 44,1 / 48
- 24-bit DAC output, dynamic range 90dB, SNR 85dB support
- loads up to 100 directories, each of which can contain up to 255 songs
- volume in 30 degrees, 6 levels of equalizer
- dimensions 21 × 21mm
The product is not a stand-alone unit, it requires professional installation.
