FNIRSI WD-02 Multifunctional Detector

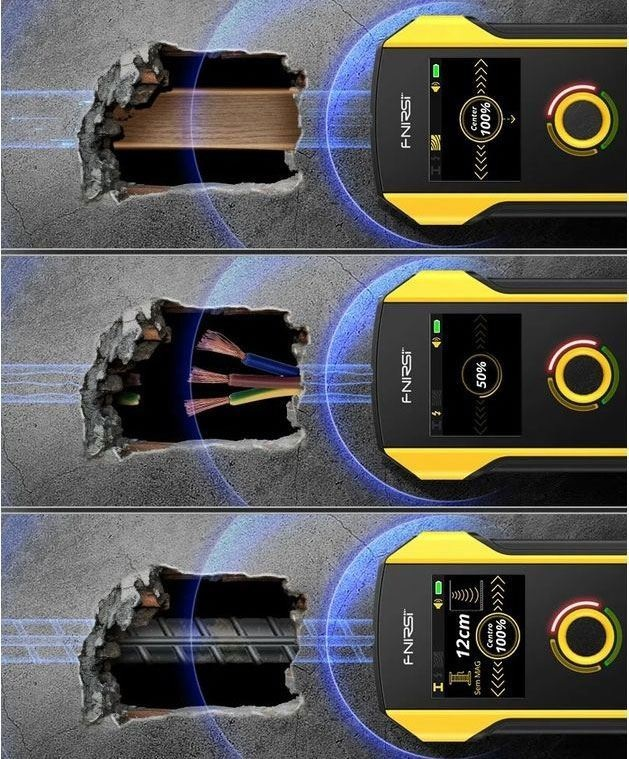

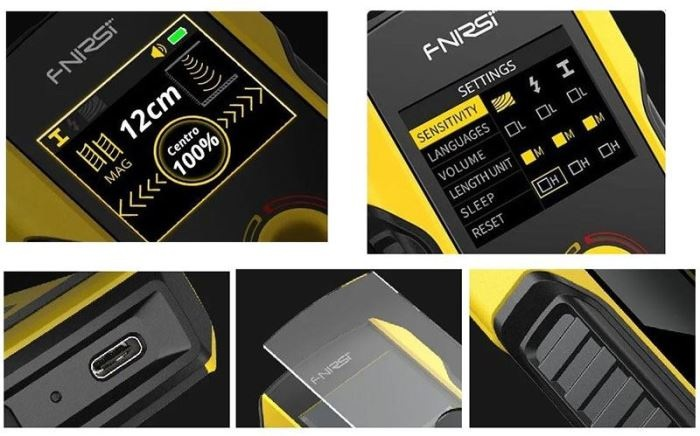

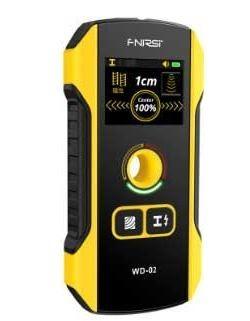

FNIRSI WD-02 Multifunctional Voltage, Metal and Non-Homogeneity Detector. The detector enables the accurate and rapid localisation of iron, cables or timber within a wall. The detector can be used to determine whether a hidden obstacle is centred exactly at the selected location, or merely touches the edge, and at what depth. The FNIRSI WD-02 is equipped with a 4.72-inch TFT display with an intuitive user interface. The device’s menu is available in six languages (Russian, English, Portuguese, Japanese, Simplified Chinese and Traditional Chinese), but thanks to its simple and intuitive controls, it is easy to use. When using the one-button detection function, simply select what you wish to search for and, by placing the device against the wall, the result is displayed instantly. For quick checks, the detector also features a coloured LED indicator accompanied by an audible signal. When it lights up green, there are no obstacles and you can carry on working. Three levels of adjustable sensitivity are available for precise testing. These settings allow you to increase the accuracy of identifying metallic elements, such as steel bars, metal profiles, metal pipes, timber and electrical wiring located within walls, ceiling structures and floors. A centralised marking hole allows for precise marking of the drilling location following detection. Technical specifications: - maximum detection depth: - magnetic metals: 120 mm - non-magnetic metals: 100 mm
- AC wiring: 50 mm - copper wire: 40 mm - timber: 38 mm - power supply: 300 mAh (lithium battery) - operating time: approx. 2 hours
- automatic shut-off: approx. 5 minutes - charging port: USB-C - material: ABS - dimensions: 138×68×22 mm - weight: 202 g
