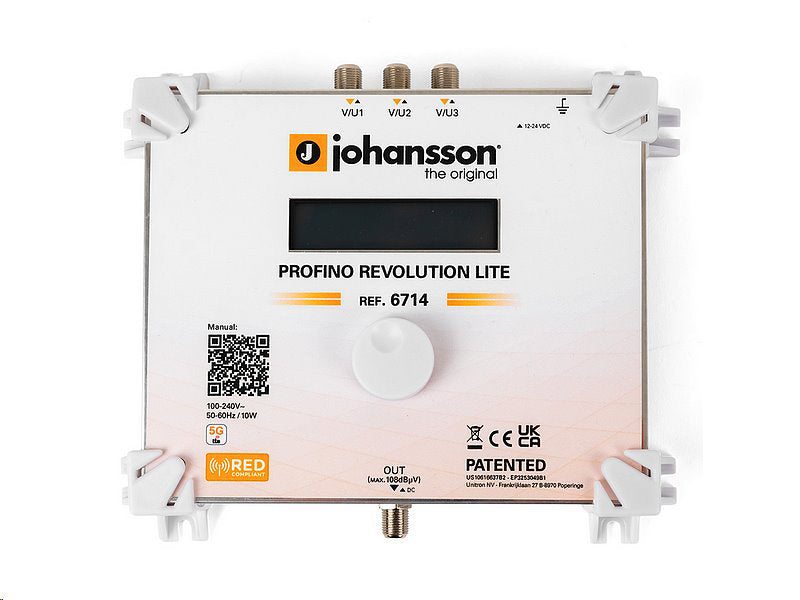

JOHANSSON 6714 Profino Revolution Lite programmable antenna amplifier
Programmable antenna amplifier and converter - 3 VHF/UHF inputs, processing of more than 50 channels (32 filters, each up to 6 MUXes), 5G LTE protection, AGC on all multiplexes, Flex Matrix frequency conversion (VHF/S-Band/UHF), programming with a single rotary button with automatic scanning, preamplifier power supply 12 or 24V max. 50mA, 12V power supply via the output F connector, settings lock with code
Will be restocked
Expected shipping:
30.09.2026
at our place
Regular price
4.699,00 Kč
3.883,47 Kč
excl. VAT
Unit price
/
Unavailable
JOHANSSON | SKU:
14411397
Product description
Johansson 6714 Profino Revolution Lite is an easy-to-use programmable amplifier and converter for terrestrial signals
It has 3 VHF/UHF inputs and can process and convert more than 50 channels (consisting of 32 filters, each with up to 6 MUXs)
Of course, 5G LTE and AGC protection is provided on all individual multiplexes
Easy programming with one rotary knob, intelligent and automatic channel scanning
Complete flexibility in assigning filters from any input
Each channel can be frequency shifted to any other channel in the VHF, S-Band or UHF band (Flex Matrix)
To prevent unauthorized persons from changing the settings, the product can be locked with a code
Option to power the preamplifier with 12 or 24 V, max. 50 mA (total for 3 inputs)
12V power supply via output F-connector (power supply included)
Technical specifications:
Inputs: 3 UHF/VHF
Outputs: 1 (VHF-S-UHF)
Input frequency range: VHF:174 - 240 MHz; UHF:470 - 694 MHz
Output frequency range: 174 - 862 MHz
LTE 5G protection: 694 MHz
Input level: VHF 37* - 109 dBµV; UHF 37* - 109 dBµV
VHF/UHF output level (60dB/IM3): 114 dBµV
VHF/UHF output level (36dB/IM3): 125 dBµV
VHF/UHF output level for 1 MUX: 108 dBµV
VHF/UHF output level for 6 MUX: 108 dBµV
VHF/UHF output level for 15 MUX: 105 dBµV
VHF/UHF output level for 32 MUX: 102 dBµV
Number of channels: More than 50 (32 filters)
Conversion: From any VHF-UHF channel to any VHF-S-UHF channel
Gain: VHF >65 dB; UHF >65 dB
Gain setting: channel AGC
Attenuation control: 20 dB
VHF attenuation: 15 dB
Slope: 8 dB
Selectivity: 50dB/1MHz
Output MER: VHF 35 dB; UHF 35 dB
ESD protection: All inputs
Preamplifier voltage: 12 or 24 V
Supply current: 50 mA (total for 3 inputs)
Operating temperature: -5 to +50°C
Power supply: 12V type 2438 included
Consumption: 9 W
Dimensions: 190 x 165 x 59 mm
Weight: 0.7 kg
