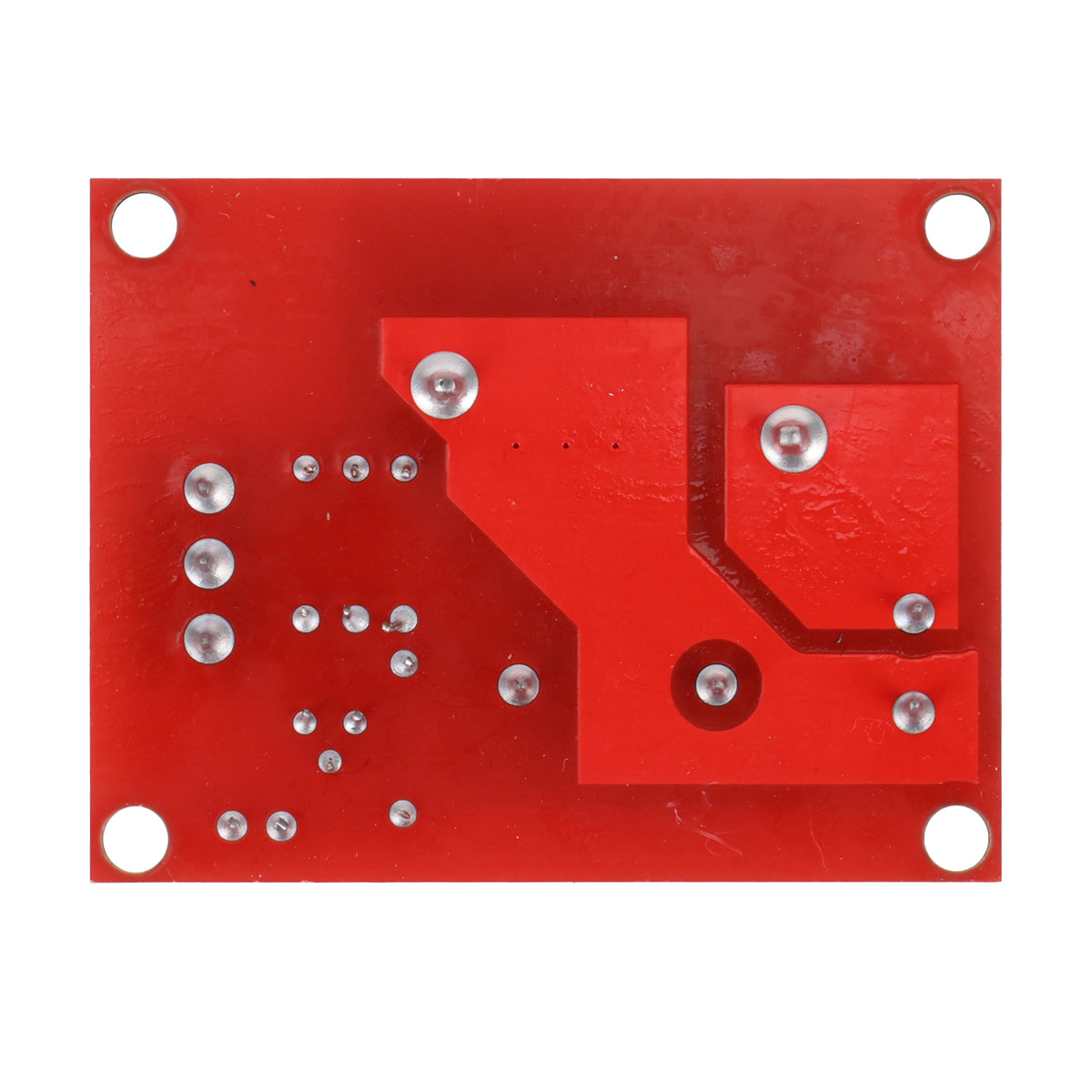

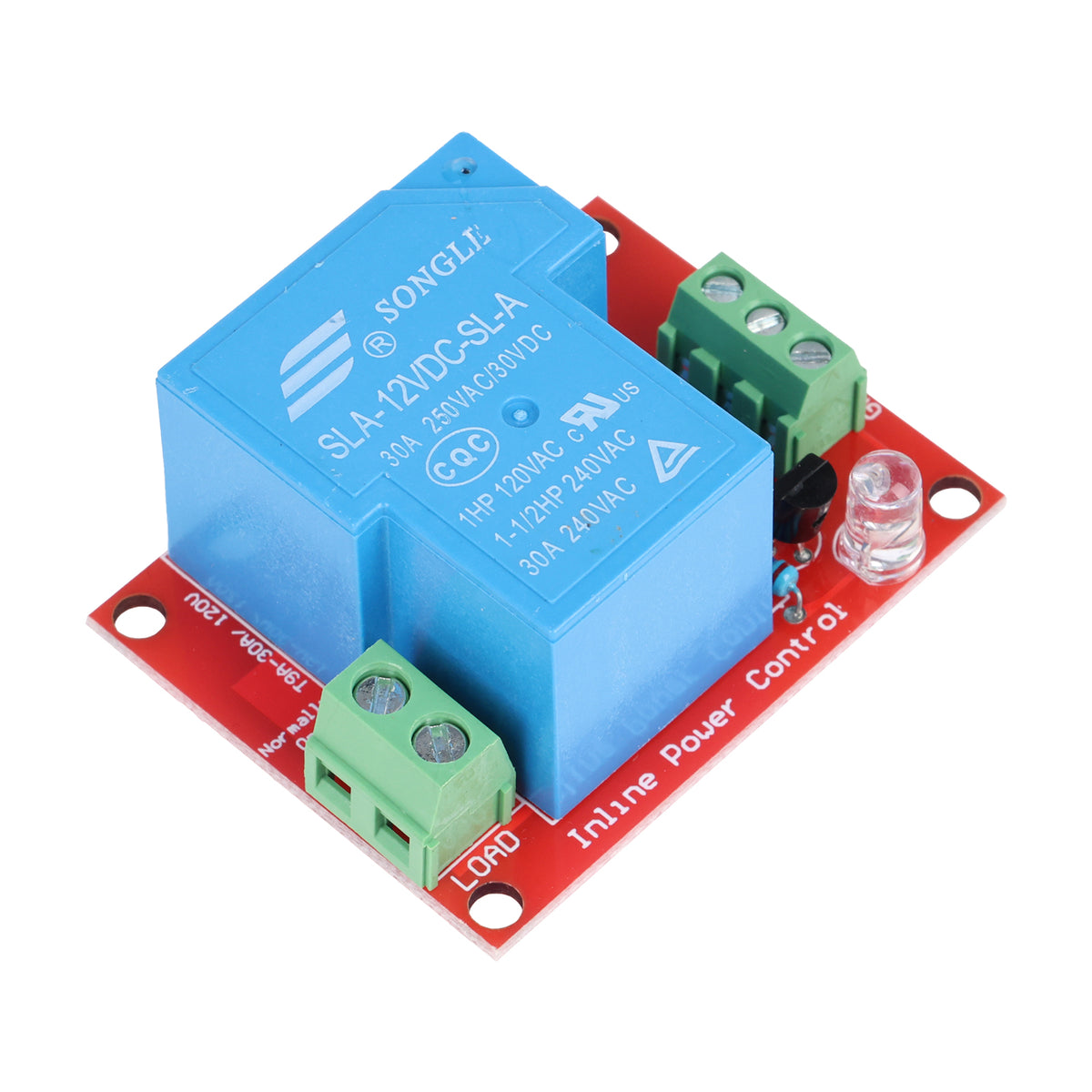

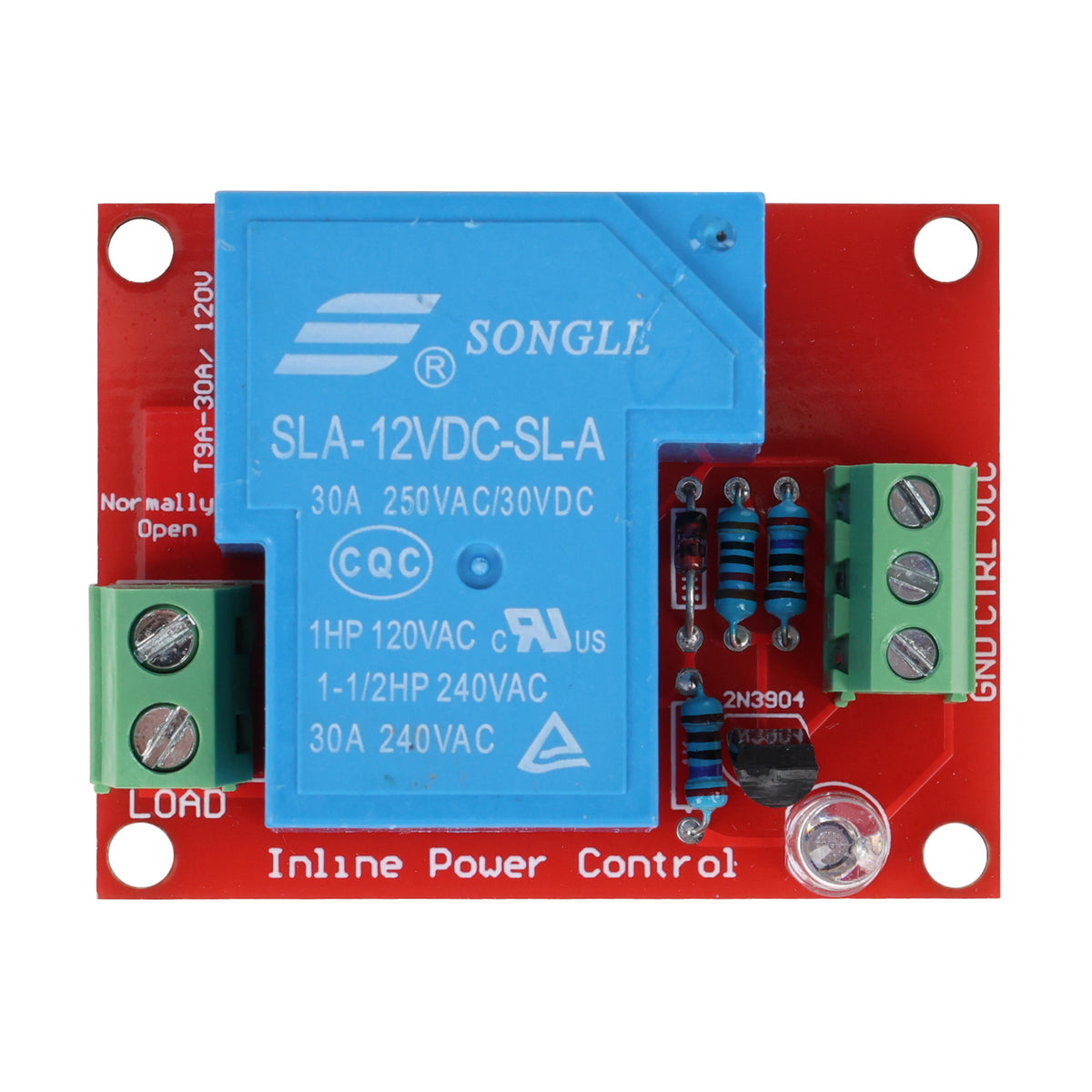

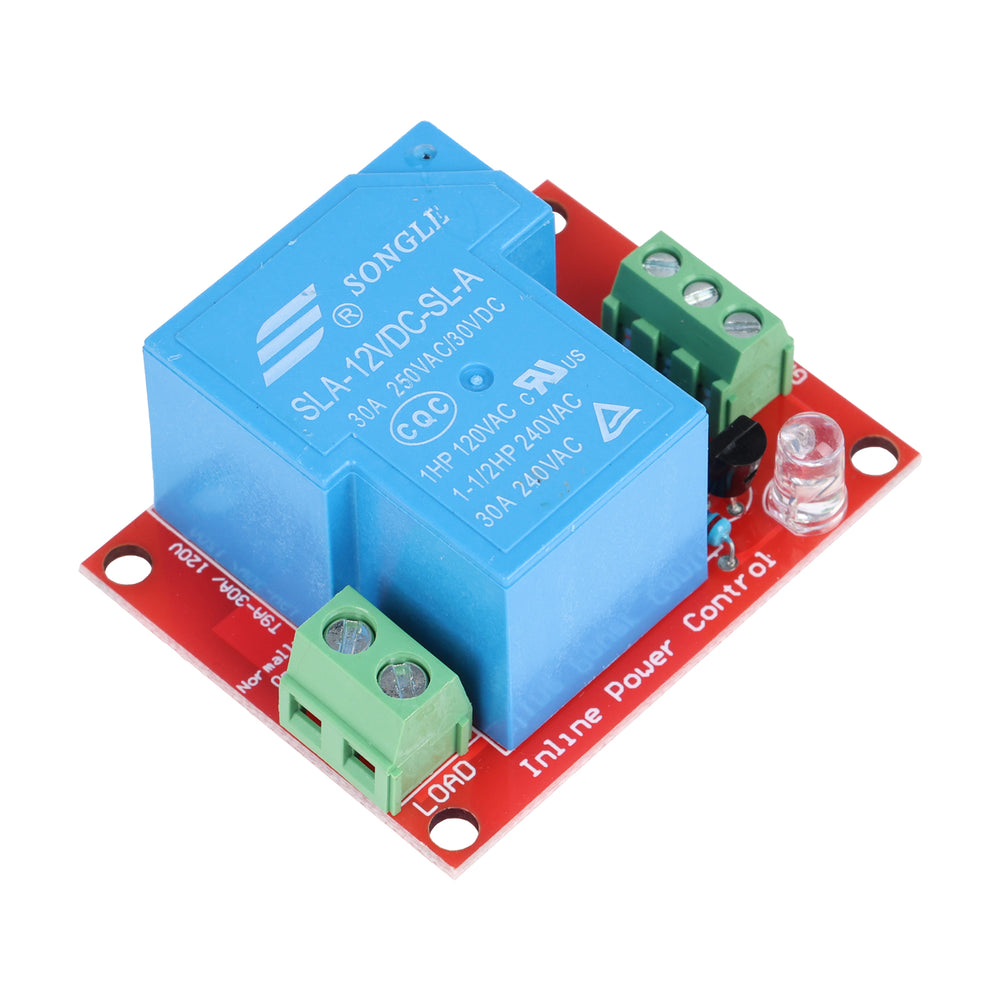

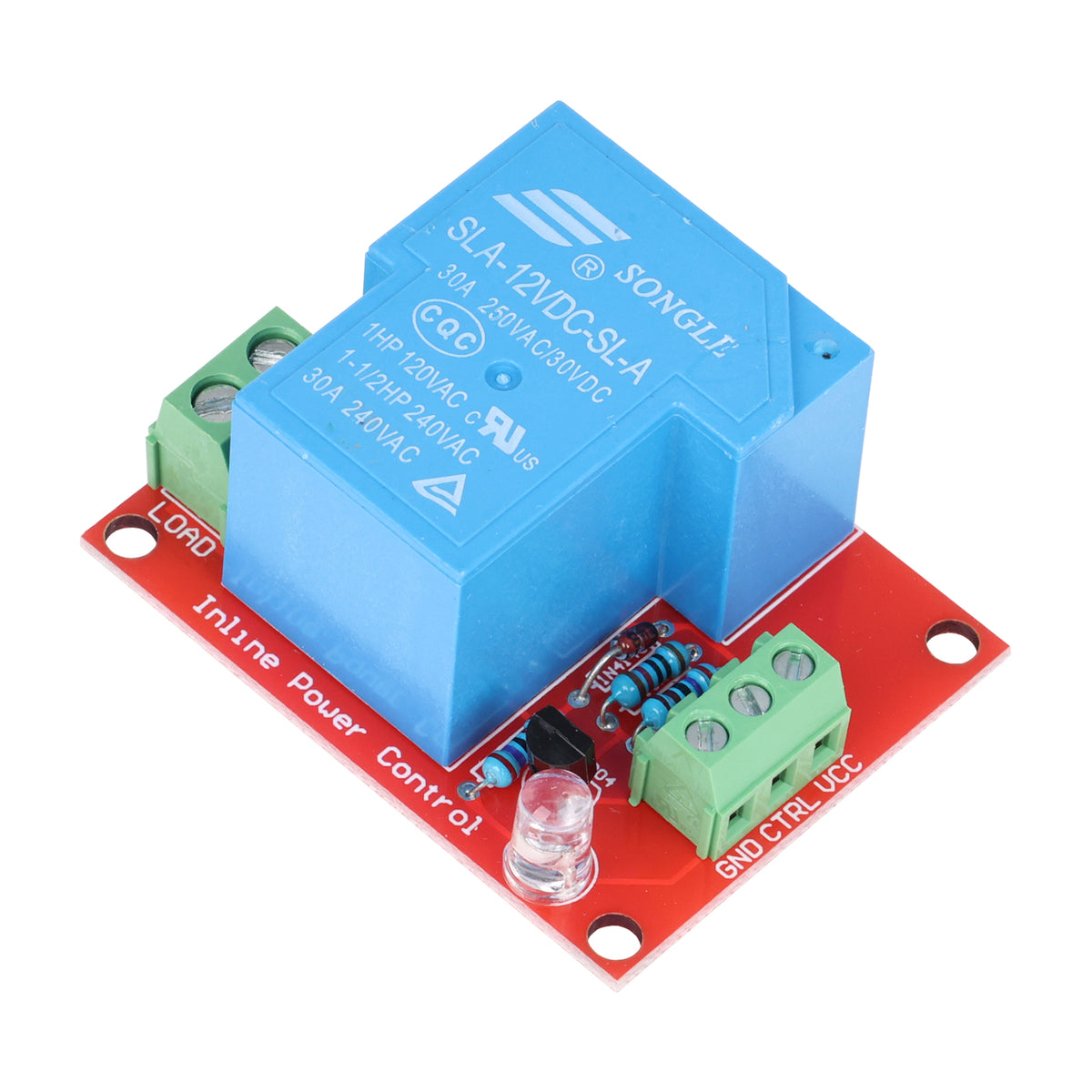

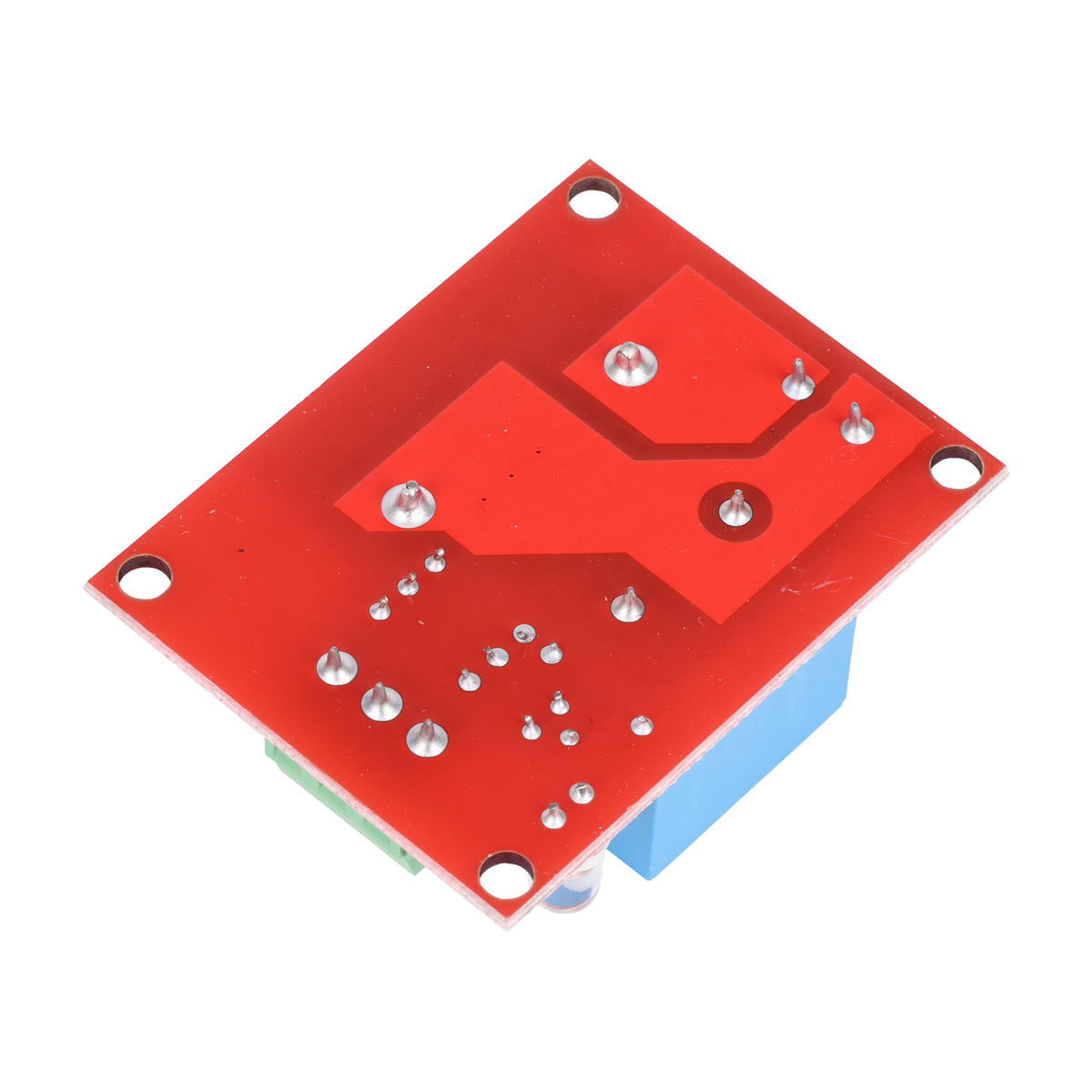

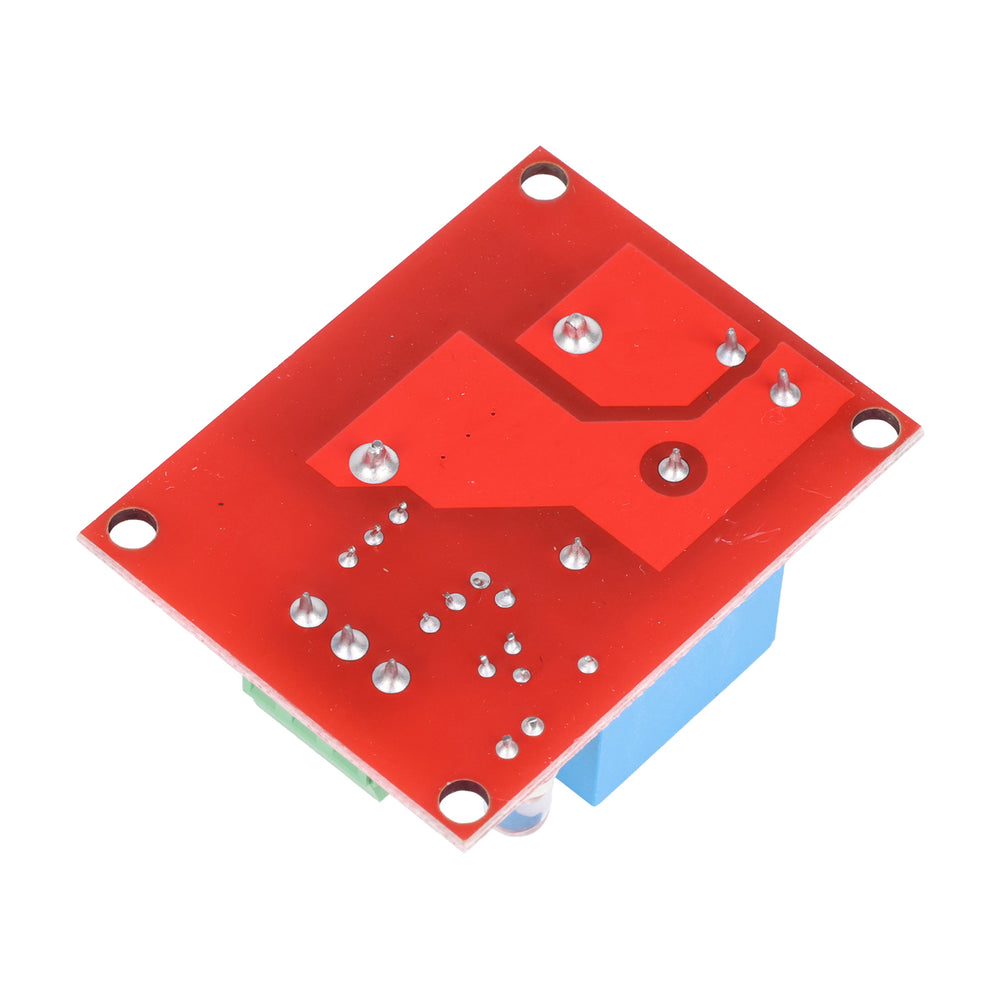

High Level Trigger 12V 30A Single Channel Relay Module
New
In stock 30 pcs
Expected shipping:
26.10.2026
Regular price
69,00 Kč
57,02 Kč
excl. VAT
Unit price
/
Unavailable
TIPA | SKU:
09830389
Product description
Do you need to reliably control energy-intensive appliances, are you building industrial automation, or are you expanding your smart home with power elements? Songle's single-channel 12V relay module with a huge 30A load rating provides a robust industrial solution for safely switching high currents where conventional 10A relays fail.
This power module is fitted with Songle's proven relay brand and switches using a logic High Level Trigger. It provides 100% galvanic isolation of the control part (e.g. Arduino, ESP32, Raspberry Pi, PLC) from the switching circuit. It is ideal as a Power Failure Relay, for switching powerful pumps, heaters, motors or automotive electronics.
Main advantages of the module:
- Industrial load capacity up to 30 A: Designed for safe continuous operation even under high current loads. Contacts are protected against sintering.
- Coil power supply 12 V DC: Perfect for integration into 12V systems, automotive wiring, backup power supplies and industrial enclosures.
- High Level Switching: Activate the relay by applying a positive voltage (logic 1) to the control pin. This prevents inadvertent tripping when the control microcomputer starts.
- Safe optical isolation: an integrated optocoupler isolates the signal path from the power load. Any voltage spikes or inductive surges thus remain safely isolated from the processor.
- Massive screw terminal blocks.
Technical Specifications:
- Single-Channel Power Relay Module.
- Component Brand.
- Coil supply voltage (VCC): 12 V DC
- Switching Logic: High Level Trigger
- Maximum rated current: 30 A
- Maximum switching voltage: 250 V AC / 30 V DC
- Contact type: SPDT (switching contact - NO / COM / NC)
- Isolation: opto-electronic (built-in optocoupler to protect control electronics)
- Functional use: load switching, automation, Power Failure Relay
- Indication.
Don't let your industrial and home projects be limited by weak components. Rely on uncompromising performance, safety and stability with Songle's 12V 30A relay module. Add it to your cart today!
