FM radio, MP3 player with bluetooth 5.0, remote control, power supply. 5-14V

FM radio and MP3 player with Bluetooth - Bluetooth 5.0, FM receiver 87–107MHz with automatic tuning, MP3 playback, WMA, WAV, FLAC, APE, micro SD card slot up to 16 GB, USB connector for flash drive up to 16 GB, AUX 3.5 mm jack input, audio output for LF amplifier, colour LED display, IR remote control, power supply 5–14V DC / max. 250mA, operating temperature -10 to +50°C, dimensions 92 × 41 × 21 mm, panel-mounted module

Show full description
Will be restocked
Expected shipping: 28.09.2026 at our place
209,00 Kč 172,73 Kč excl. VAT
TIPA  |  SKU: 09830196  |  Barcode: 8595563730072
Log in for VAT-free pricing

Product description

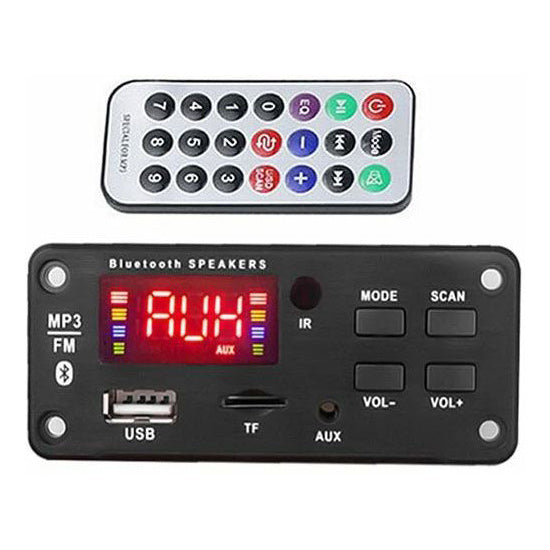

Universal module with MP3 player, FM receiver and bluetooth v.5.0 for panel integration. In combination with the nf amplifier, it offers versatile use at a very low price. It differs from the M501B model only by fitting a 5V stabilizer to increase the supply voltage range.


Product parameters:

- micro SD card slot up to 16GB
- USB connector for USB FLASH up to 16GB
- AUX input (jack3,5mm + pins on the printed circuit board)
- output for nf amplifier (pins on the printed circuit board)
- plays MP3, WMA, WAW, FLAC, APE formats
- color LED display
- FM receiver: 87 MHz to 107 MHz with auto tuning
- bluetooth 5.0
- IR remote control

Technical parameters:

- power supply: 5V-14V DC / <250mA
- audio input: 700mV p-p
- operating temperature: -10 ° C to + 50 ° C
- dimensions: 92 × 41 × 21mm

The product is not a stand-alone unit, it requires professional installation.
