Current Clamp sensor UNI-T UT-CS07

This product comes with a 3-year warranty.

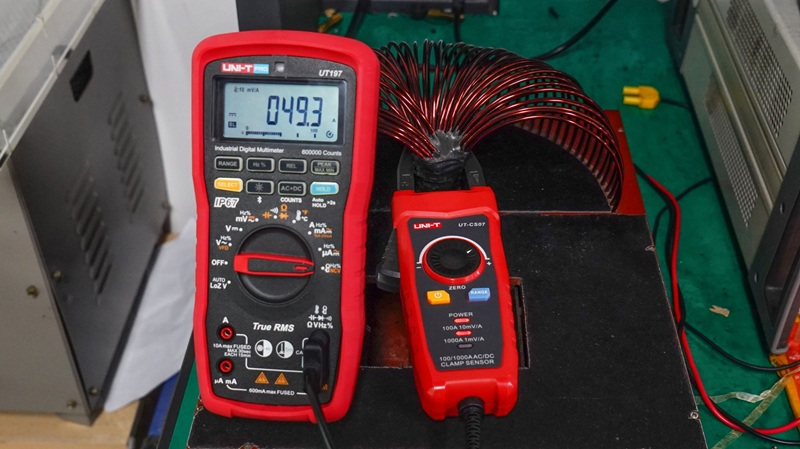

UT-CS07 is a high-reliability and high-security AC and DC current clamp meter, which serves as a supporting device for multimeter current measurement. It measures the current passing through the sensor and converts the current value into a voltage value. The converted voltage is then transmitted to the multimeter via a cable, and the multimeter displays the corresponding values. It can measure up to 1000A AC/DC current.
Reliable measurement accuracy and unique external design make it a practical tool for current sensing. .


Product parameters:

- compact design, easy to operate
- using it together with a multimeter allows you to obtain accurate data.
- slim clamps with a diameter of 35 mm, suitable for dense wiring
- compatible with multimeters: UT117C, UT196, UT139C, UT197, UT197PV and others
- AC/DC current: 1000A
- frequency range: 45 Hz to 400 Hz
- zero function
- AC/DC input protection 1000 A
- measurement category: CAT III 1500V, CAT IV 600V
- certification: CE, cETLus, RoHS

Technical parameters:

- AC current measurement:
100A / 10mV/A / ±(1.5%+0.5A)
1000A / 1mV/A / ±(1.5%+0.5A)

- DC current measurement:
100A / 10mV/A / ±(1.5%+0.5A), 45Hz to 200Hz, ± (2.0%+0.5A), 200Hz to 400Hz,
1000A / 1mV/A / ±(2.0%+0.5A), 45Hz to 200Hz, ± (2.0%+0.5A), 200Hz to 400Hz,

- jaw size: for 35 mm conductor or 65 x 8 mm bus
- output ratio: 10 mV/A and 1 mV/A
- wire length: 1.1 m
- True RMS depends on the multimeter
- response time depends on the multimeter
- frequency (ACA): 50 Hz to 400 Hz
- accuracy: depends on the multimeter
- power supply: AA(R06) 1.5V - 2 pcs ; working current: <50mA
- low battery indication
- drop test: 1 m
- working environment: 0°C to 30°C (<75%RH), 30°C to 40°C (<50%RH)
- dimensions: 276 x 86 x 50 mm
- end cable length: approx. 1.1 m
