CORAB Medium Adjustable Clamp, 30–35 mm, Black, 6 pcs
Middle adjustable clamp for PV panels - frame thickness range 30–35 mm, colour black, raised earthing pins for potential equalisation, stainless steel A2 material, pack of 6 pcs includes: middle clamp 41 × 50 mm (6 pcs), groove rail connector L110 (3 pcs), screw M8 × 40 (6 pcs), M8 profile T-nut (6 pcs), spring washer S M8 (6 pcs)
In stock 12 pcs
Expected shipping:
12.10.2026
Regular price
319,00 Kč
263,64 Kč
excl. VAT
Unit price
/
Unavailable
CORAB | SKU:
14562341
Product description

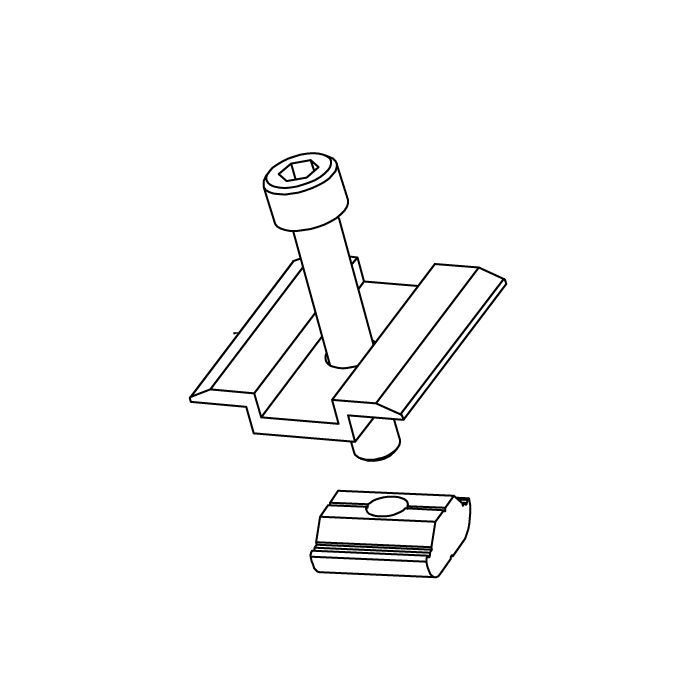

Set of middle clamps for mounting black photovoltaic panels.
Set for mounting photovoltaic modules with a frame thickness of 30 to 35 mm. The embossed pins ensure potential equalization between the module frame and the supporting structure. The clamps included in the set are black.

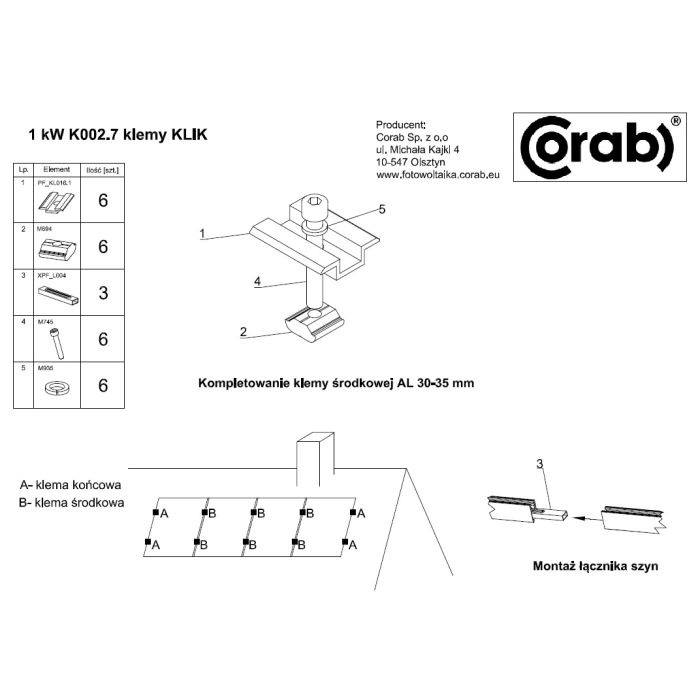

The package includes:
1) middle clamp 41x50 with grounding pins black - 6 pcs
2) slotted strip connector L110 (23x110x12) - 3 pcs
3) cylinder head screw M8x40 DIN912 A2 - 6 pcs
4) Profile stone M8 thread - 6 pcs
5) spring washer type "S" M8 DIN9250 A2 - 6 pcs
Set for mounting photovoltaic modules with a frame thickness of 30 to 35 mm. The embossed pins ensure potential equalization between the module frame and the supporting structure. The clamps included in the set are black.
