Connecting cable LA35/8 KEMOT URZ3436
Propojovací kabel baterií - očkové svorky LA35/8, izolovaný měděný drát, měděná očka s galvanickou vrstvou proti elektrochemické korozi, červené očko pro kladný pól (+) a černé pro záporný pól (-), určeno pro sériové nebo paralelní zapojení baterií, vhodné pro záložní zdroje UPS, solární měniče a bateriové instalace stejnosměrného i střídavého proudu
In stock more than 5 pcs
Expected shipping:
28.08.2026
Regular price
265,00 Kč
219,01 Kč
excl. VAT
Unit price
/
Unavailable
KEMOT | SKU:
06438088
Connecting cable LA35/8 KEMOT URZ3436
Regular price
265,00 Kč
219,01 Kč
excl. VAT
Unit price
/
Unavailable
Product description

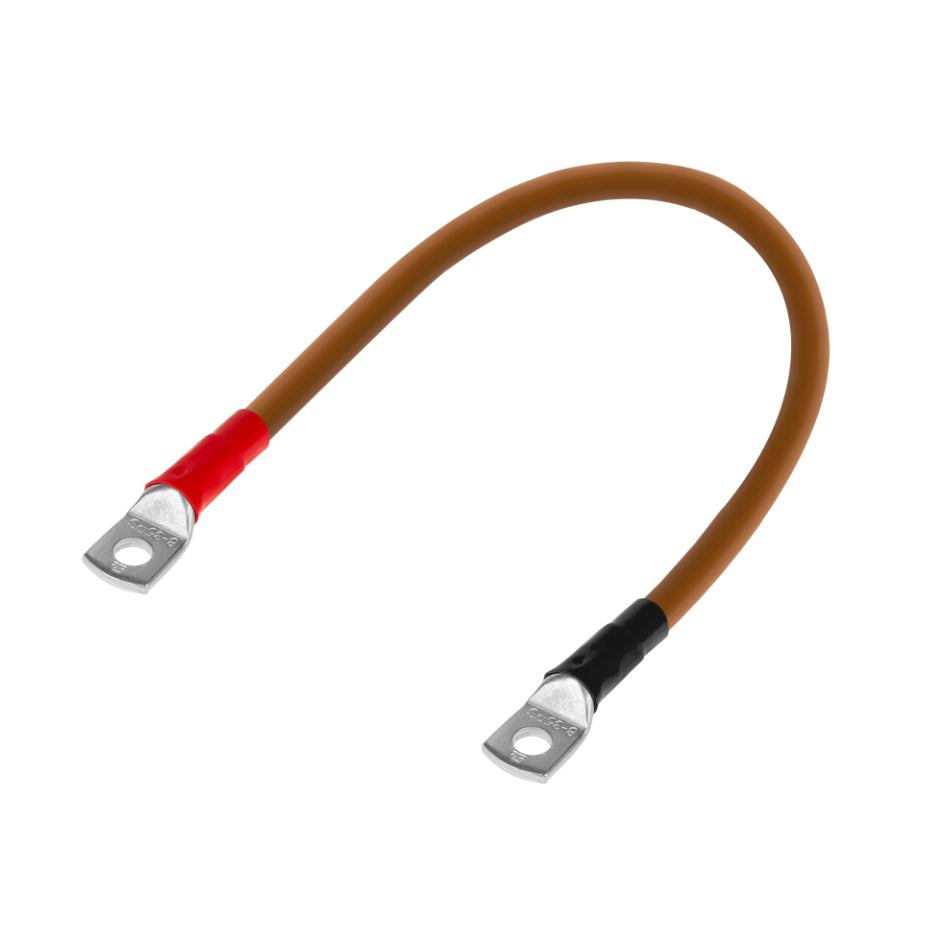

Battery connector LA35/8
The connector is used to make an electrical connection, in series or parallel, of batteries or other DC or AC electrical circuits. It is made of insulated copper wire terminated with copper eyes covered with a galvanic layer that reduces the occurrence of electrochemical corrosion that occurs when different types of metals are joined.
The product has eye terminals for screw terminals: eye terminals marked in red for connecting the positive pole (+) of one battery and eye terminals marked in black for connecting the negative pole (-) of the other battery.
The connector is mainly used for series connection of batteries in emergency power installations and in the case of: emergency power supplies, battery and solar inverters, etc.
The maximum power of the cooperating device with which the connector can cooperate for a long time (series connection of 12V batteries) is:
2700 watts if the inverter or emergency power supply operates with batteries for a total voltage of 24 V,
5400 watts if the inverter or emergency power supply operates with batteries with a total voltage of 48 V,
10800 watts if the inverter or emergency power supply operates with batteries with a total voltage of 96 V.
Technical parameters:
Diameter of the tip eye: 8 mm
Total length of the connector: 37.5 cm +/- 1 cm
Max. operating voltage: 450 V
Max. long-term load current of the switch: 134 A
Core cross-section: 35 mm2
Core material: Cu
Connector material: Cu + zinc plating
Max. permissible core temperature: 70 °C
Cable type: flexible
Cable insulation: PVC insulation
