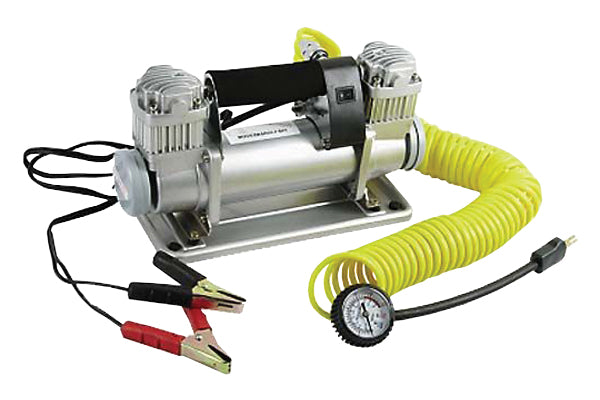

Compressor 12V/10Bar metal 150l/min

All-metal twin-cylinder car compressor - 12V power supply, maximum consumption 45A, maximum pressure 10bar (150psi), flow rate 150 l/min at 22°C and 2.75bar, maximum back pressure 13bar, permanent magnet motor, automatic thermal protection, built-in 45A fuse, coiled 10 m air hose with quick coupler, precise pressure gauge, dimensions 330 × 140 × 200 mm, weight 7.2 kg, piston diameter 40 mm, carrying bag

Show full description
Not in stock
2.490,00 Kč 2.057,85 Kč excl. VAT
HADEX  |  SKU: 08851878  |  Barcode: 8595118859975
Log in for VAT-free pricing

Product description

Compressor 12V metal + accessories (Type: TH10C), max.10Bar, 150l / min

Product parameters:

- two-cylinder
- 12V / 50A max
- 10m twisted air hose with quick coupling
- accurate manometer
- portable cable


Technical parameters:

Supply voltage: 12V
Motor type: with permanent magnet
Maximum operating pressure: 10bar, 150p.s.i
Maximum flow: 150l / min at 22 ° C and 2.75bar, 40p.s.i.
Maximum back pressure: 13bar, 200p.s.i.
Maximum consumption: 45A
Built-in fuse: 45A
Automatic thermal protection: yes
Dimensions: 330 x 140 x 200mm
Net weight: 7.2kg
Piston diameter: 40mm
