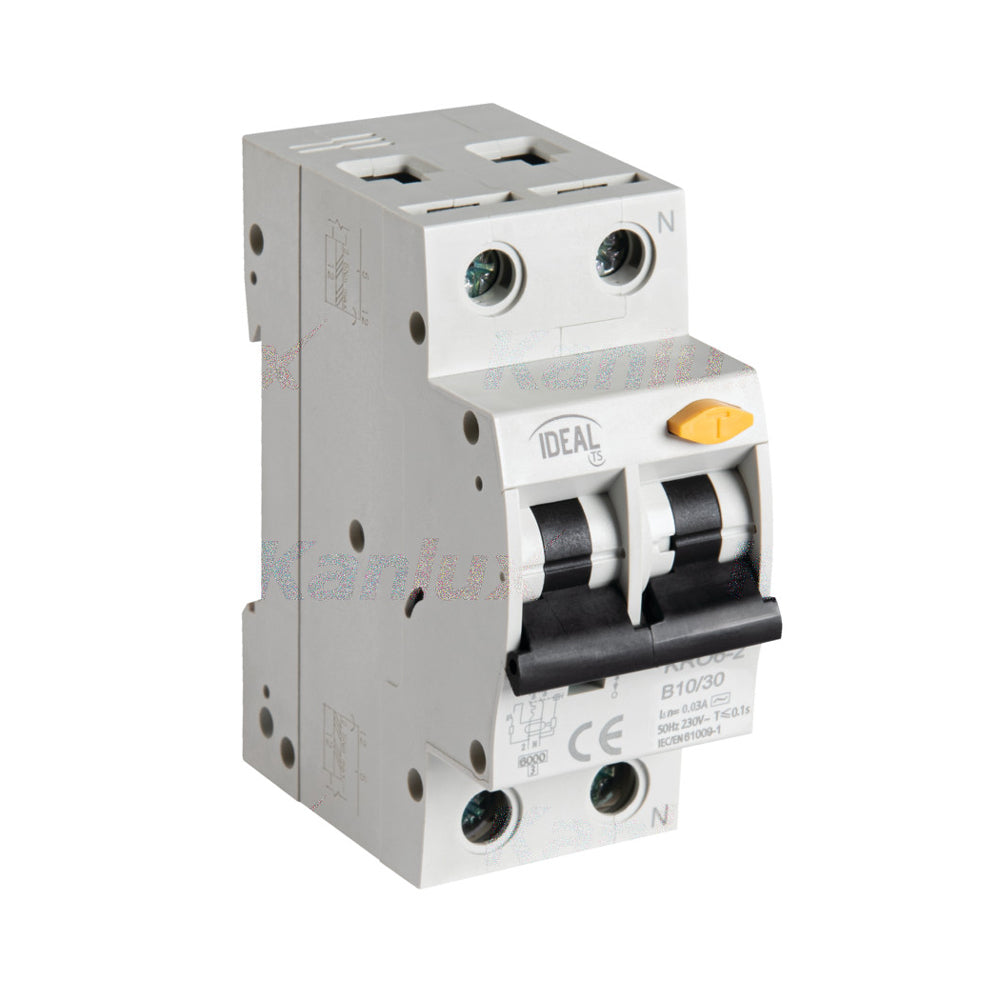

Circuit breaker KANLUX KRO6-2/B10/30 23213
RCBO - rated voltage 230V AC, rated current 10A, tripping characteristic B, rated residual current 30mA, RCD type AC, rated short-circuit current 6 000A, energy limitation class 3, frequency 50Hz, conductor cross-section 10–16 mm2, width 2 modules (35 mm), dimensions 81 × 35 × 75 mm, weight 180 g, IP20 rating, operating temperature -25 to +40°C, overload protection, short circuit and electric shock
In stock 4 pcs
Expected shipping:
22.09.2026
Regular price
369,00 Kč
304,96 Kč
excl. VAT
Unit price
/
Unavailable
KANLUX | SKU:
08773559
Product description
Combination circuit breaker-current protector with overcurrent protection is used to protect against overload and short circuit in installations and equipment as well as to protect against electric shock
Technical parameters:

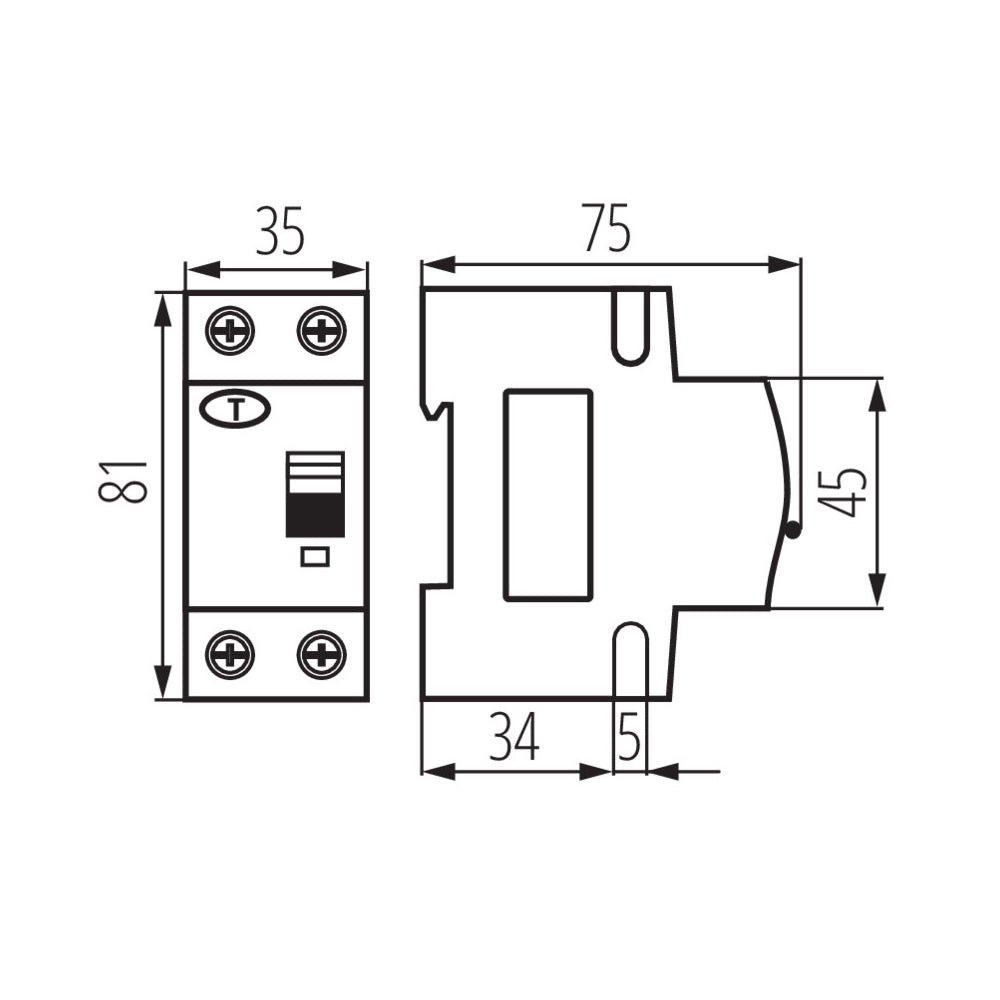

- Height [mm]: 81
- Width [mm]: 35
- Length [mm]: 75
- Weight: 180g
- Nominal voltage [V]: 230 AC
- Nominal frequency [Hz]: 50
- Rated current [A]: 10
- Rated differential current [mA]: 30
- Range of diameters of used conductors [mm2]: 10÷16
- Range of ambient temperatures to which the product can be exposed [°C]: -25÷40
- Degree of protection IP: 20
- Current protector type: AC
- Rated short-circuit current [A]: 6000
- Class of energy restrictions: 3
- Switching characteristic: B
- Number of modules: 2, 2
- Usage: 2
- Standard: PN-EN 61009 -1
Technical parameters:
- Height [mm]: 81
- Width [mm]: 35
- Length [mm]: 75
- Weight: 180g
- Nominal voltage [V]: 230 AC
- Nominal frequency [Hz]: 50
- Rated current [A]: 10
- Rated differential current [mA]: 30
- Range of diameters of used conductors [mm2]: 10÷16
- Range of ambient temperatures to which the product can be exposed [°C]: -25÷40
- Degree of protection IP: 20
- Current protector type: AC
- Rated short-circuit current [A]: 6000
- Class of energy restrictions: 3
- Switching characteristic: B
- Number of modules: 2, 2
- Usage: 2
- Standard: PN-EN 61009 -1
