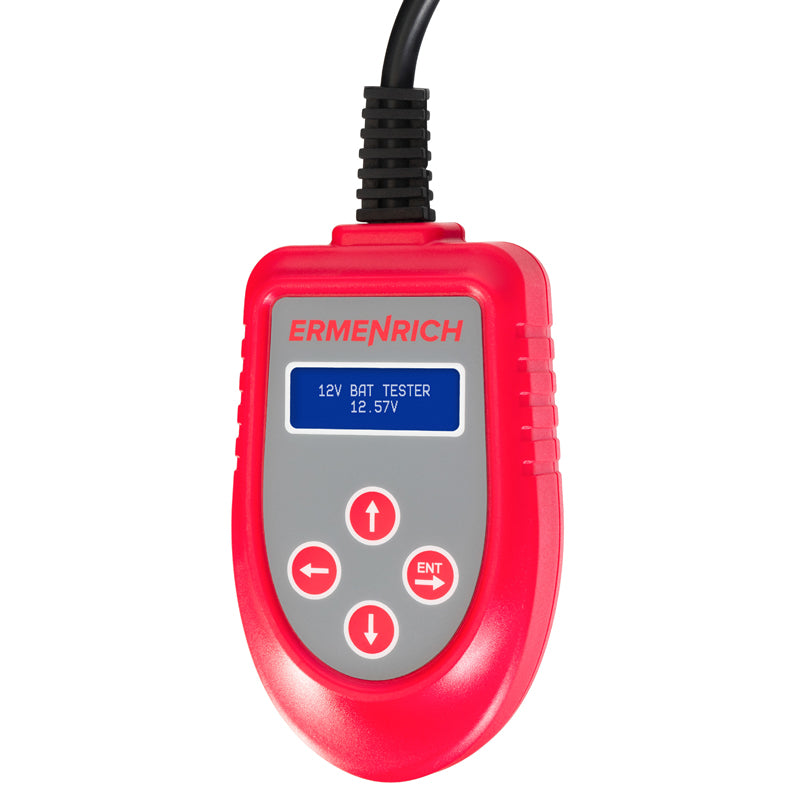

Car battery tester ERMENRICH Zing AL30

The Ermenrich Zing AL30 is a car battery tester, i.e. a portable diagnostic device. A basic battery test includes voltage, internal resistance and cold cranking current (CCA) testing. The device also has two other operating modes: testing the vehicle's starting system and testing the charging system. The device also provides a final evaluation of the battery status and, in case of low values, will recommend its replacement.

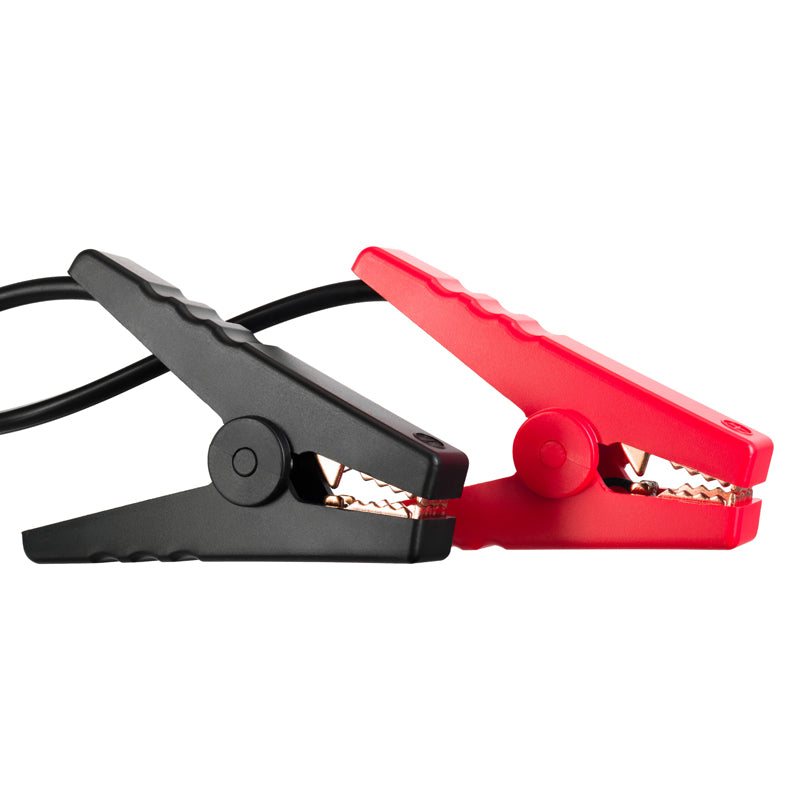

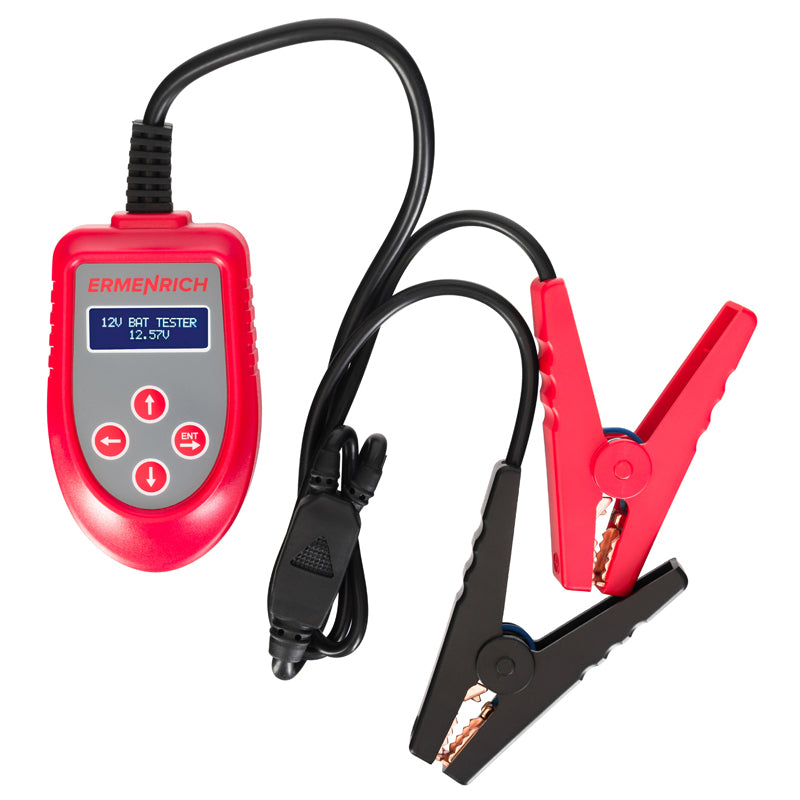

The device is connected to the battery using two alligator clips. The built-in display shows all measurements and is controlled using the controls located in the lower part. The device is charged via a tested battery, so no additional power source is required.

Three testing modes: basic battery test, starting system testing, charging system testing
Checking key battery performance indicators: voltage, internal resistance, cold cranking current (CCA)
Overall battery health analysis
Charging via tested battery (requires no additional power source)

Technical parameters:

Package size (LxWxH): 5x18x15 cm
Shipping weight: 0.28 kg
Operating voltage range (DC), V: 6 — 18
Measurement standards: CCA: 100-1700, CA: 100-1700, BCI: 100-1700, MCA:100-1700, SAE: 100-1700, GB: 30-200Ah, JIS: 26A17-245H52, IEC 100-1000, EN: 100-1700, DIN: 100-1001
Safety standards: EN 61326-1:2013
Operating humidity range, %: 0 — 80
Camera temperature range: °C: 0...+50
Storage temperature range, °C: -10 … +50
Body: high strength ABS plastic
