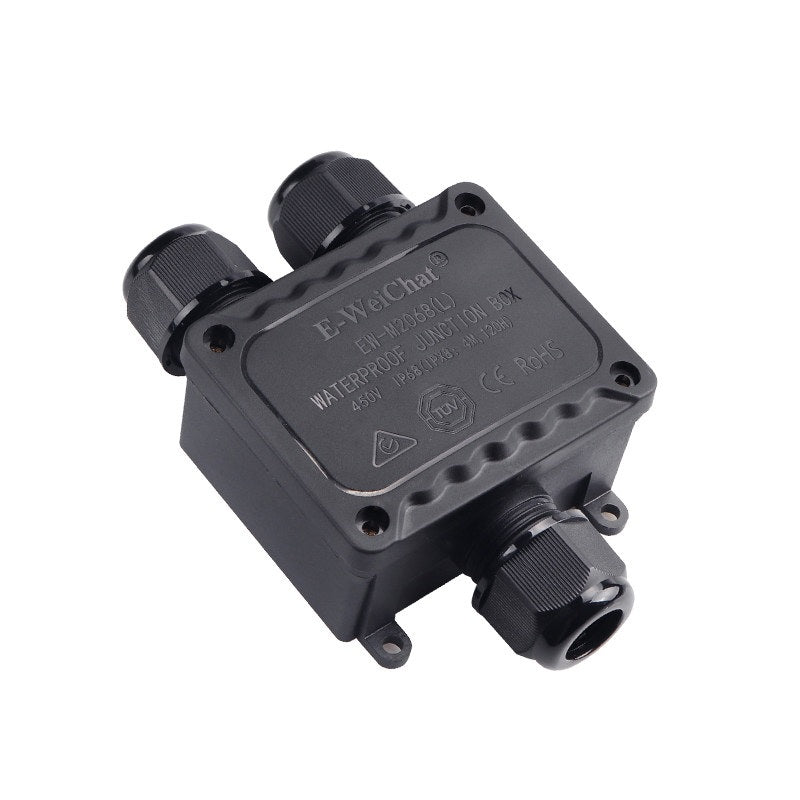

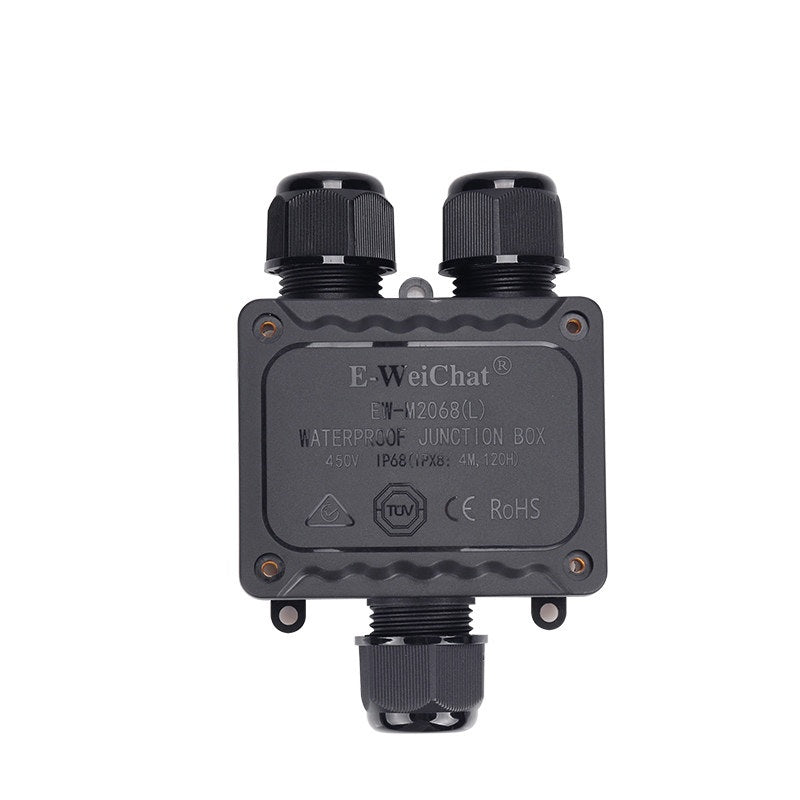

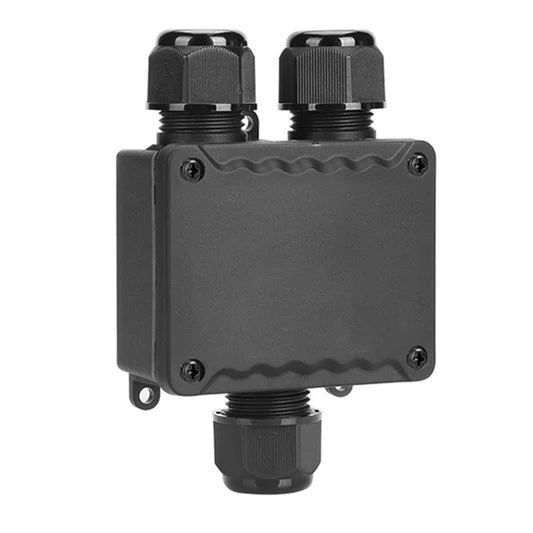

Cable connector GCC009 450V, 3x5-9mm, IP68 Y1/2
21% off
Waterproof junction box - type GCC009, screw-on, configuration Y 1/2, 3 cable inputs/outputs, conductor cross-section 0.5–6 mm2, rated voltage 450V, rated current 40A, IP68 rating, cable diameter 5–9 mm, silicone rubber sealing rings, operating temperature -40 to +105°C, dimensions 123 × 82 × 42 mm, pack of 1
In stock 2 pcs
Expected shipping:
25.09.2026
Sale price
129,00 Kč
Regular price
164,00 Kč
106,61 Kč
excl. VAT
Unit price
/
Unavailable
TIPA | SKU:
03391090
Product description
Screw-Type Waterproof Connector / Junction Box
Technical Specifications:
- Number of inputs/outputs: 3×
- Wire cross-section: 0.5–6 mm2
- Protection rating: IP68
- Rated voltage: 450 V
- Rated current: 40 A
- Cable diameter: 5–9 mm
- Sealing ring material: Silicone rubber
- Operating temperature: -40 °C to +105 °C

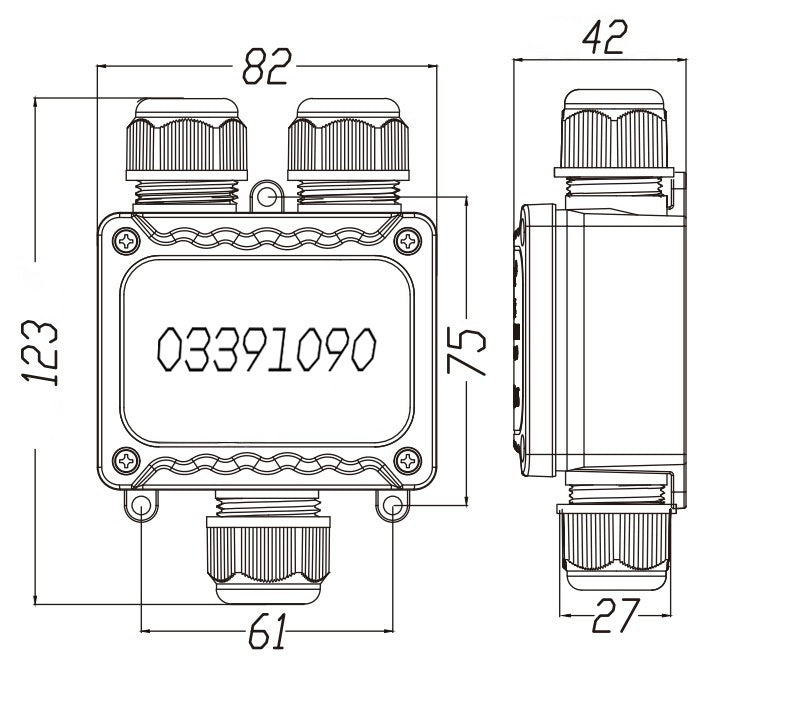

- Dimensions: 123 x 82 x 42 mm
Package includes: 1 pc
Technical Specifications:
- Number of inputs/outputs: 3×
- Wire cross-section: 0.5–6 mm2
- Protection rating: IP68
- Rated voltage: 450 V
- Rated current: 40 A
- Cable diameter: 5–9 mm
- Sealing ring material: Silicone rubber
- Operating temperature: -40 °C to +105 °C
- Dimensions: 123 x 82 x 42 mm
Package includes: 1 pc
