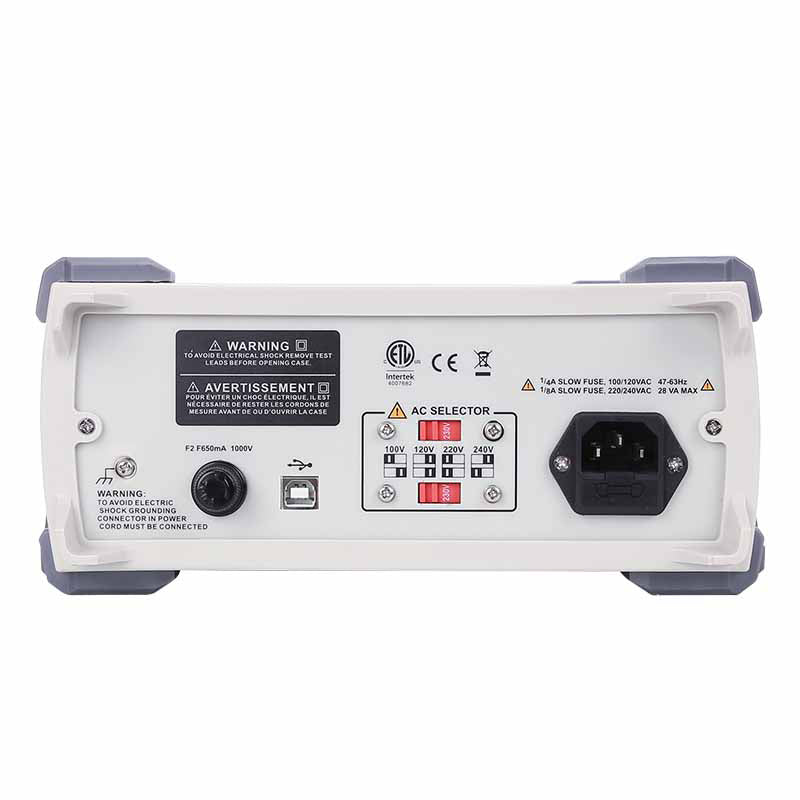

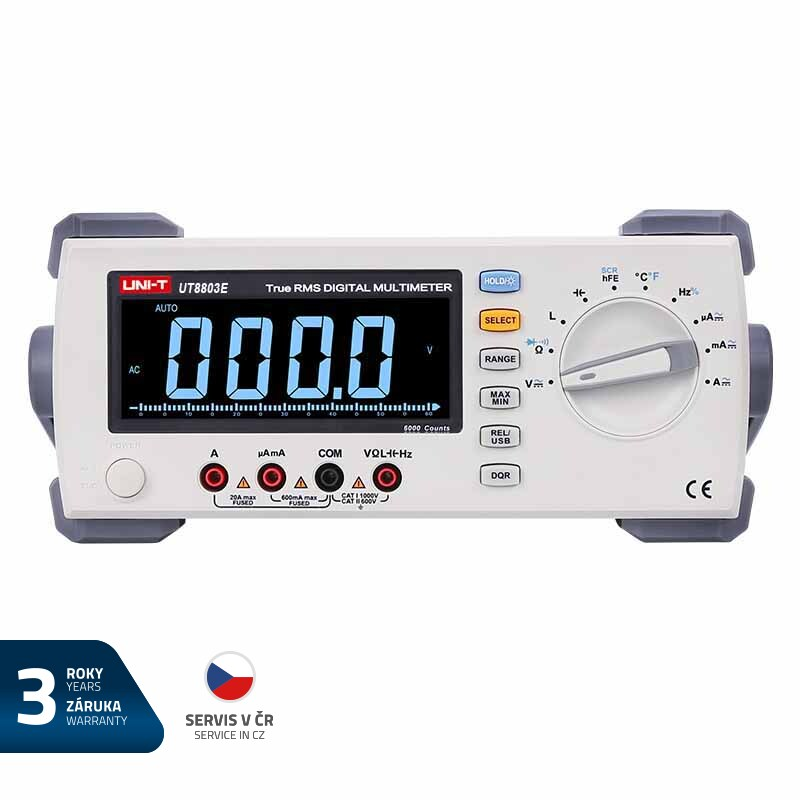

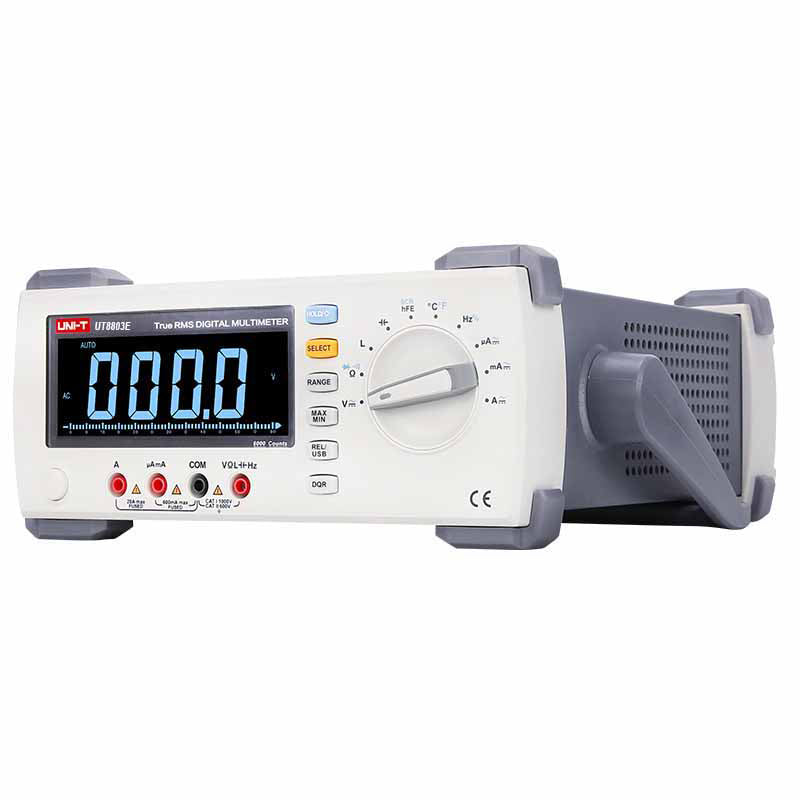

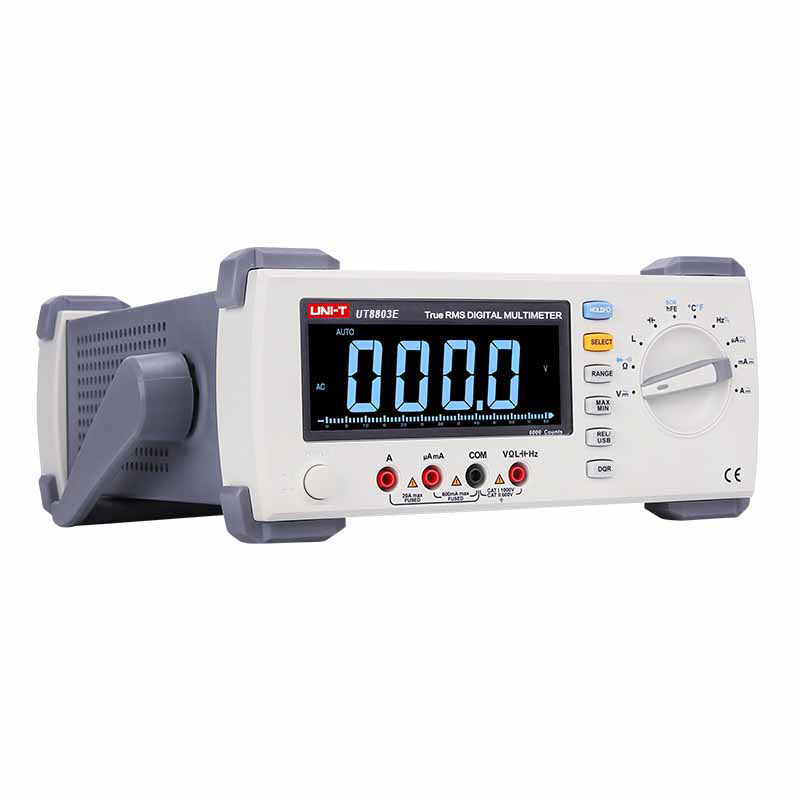

Benchtop Digital Multimeter UNI-T UT8803E
Recommended
Bench digital multimeter - AC/DC voltage measurement up to 1000V (input impedance 10M?), AC/DC current up to 20A, resistance, frequency, capacitance, inductance, transistor hFE, diodes (LED), SCR thyristors and line continuity, AC voltage frequency response 40Hz–1kHz, current 45Hz–15kHz, LCD display with backlight, automatic and manual range setting, 3-year warranty
In stock 3 pcs
Expected shipping:
29.09.2026
Regular price
4.419,00 Kč
3.652,07 Kč
excl. VAT
Unit price
/
Unavailable
UNI-T | SKU:
07730136
Product description
This product comes with a 3-year warranty.
UT8802E Benchtop Digital Multimeter:
True RMS
Diode/transistor
SCR thyristor test
Inductance measurement
USB interface
EBTN LCD screen
Data hold
MAX/MIN
Continuity buzzer
Specifications Model UT8803E:
DC voltage (V): 1000V
AC voltage (V): 750V
DC current (A): 20A
AC current (A): 20A
Resistance (?): 60M?
Capacitance (F): 6mF
Frequency (Hz): 600Hz~20MHz
Duty cycle (%): 5%~95%
Inductance (H): 100H
Temperature (°C/°F): -40?~1000? , -40?~1832?
Display count: 6000
Interface: USB Device
Range: Auto
True RMS/diode: ?
Frequency response (Hz): Up to 100kHz
SCR test 9V, can measure unidirectional and bidirectional SCR
Continuity buzzer/data hold: ?
MAX/MIN: ?
USB interface/LCD backlight: ?
Input impedance for DCV: 600mV range: around 3G?; all other ranges: around 10M?
AC+DC measurement: ?
General Characteristics:
Power: 100V/120V/220V/240V ±10%, 47Hz~63Hz
Display: EBTN LCD
Product net weight: 3.09kg
Product size: 265mm x 110mm x 320mm
Standard accessories: USB interface cable, power cord, simple test lead with alligator clips, standard test leads, PC software CD, point contact temperature probe
Standard individual packing: Carton box
Standard quantity per carton: 2pcs
Standard carton measurement: 380mm x 330mm x 320mm
Standard carton gross weight: 6.18kg
UT8802E Benchtop Digital Multimeter:
True RMS
Diode/transistor
SCR thyristor test
Inductance measurement
USB interface
EBTN LCD screen
Data hold
MAX/MIN
Continuity buzzer
Specifications Model UT8803E:
DC voltage (V): 1000V
AC voltage (V): 750V
DC current (A): 20A
AC current (A): 20A
Resistance (?): 60M?
Capacitance (F): 6mF
Frequency (Hz): 600Hz~20MHz
Duty cycle (%): 5%~95%
Inductance (H): 100H
Temperature (°C/°F): -40?~1000? , -40?~1832?
Display count: 6000
Interface: USB Device
Range: Auto
True RMS/diode: ?
Frequency response (Hz): Up to 100kHz
SCR test 9V, can measure unidirectional and bidirectional SCR
Continuity buzzer/data hold: ?
MAX/MIN: ?
USB interface/LCD backlight: ?
Input impedance for DCV: 600mV range: around 3G?; all other ranges: around 10M?
AC+DC measurement: ?
General Characteristics:
Power: 100V/120V/220V/240V ±10%, 47Hz~63Hz
Display: EBTN LCD
Product net weight: 3.09kg
Product size: 265mm x 110mm x 320mm
Standard accessories: USB interface cable, power cord, simple test lead with alligator clips, standard test leads, PC software CD, point contact temperature probe
Standard individual packing: Carton box
Standard quantity per carton: 2pcs
Standard carton measurement: 380mm x 330mm x 320mm
Standard carton gross weight: 6.18kg
