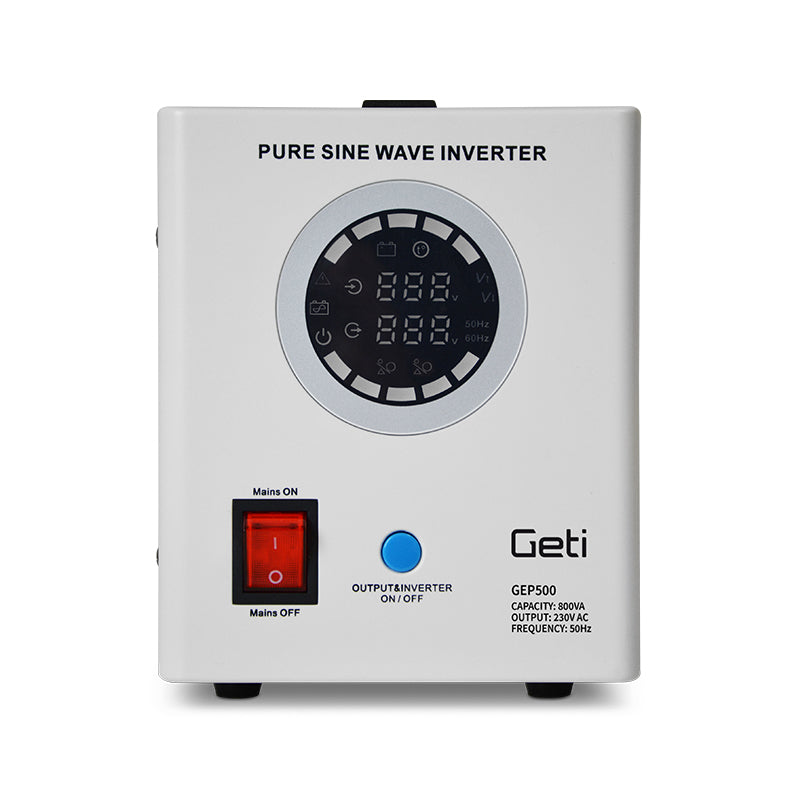

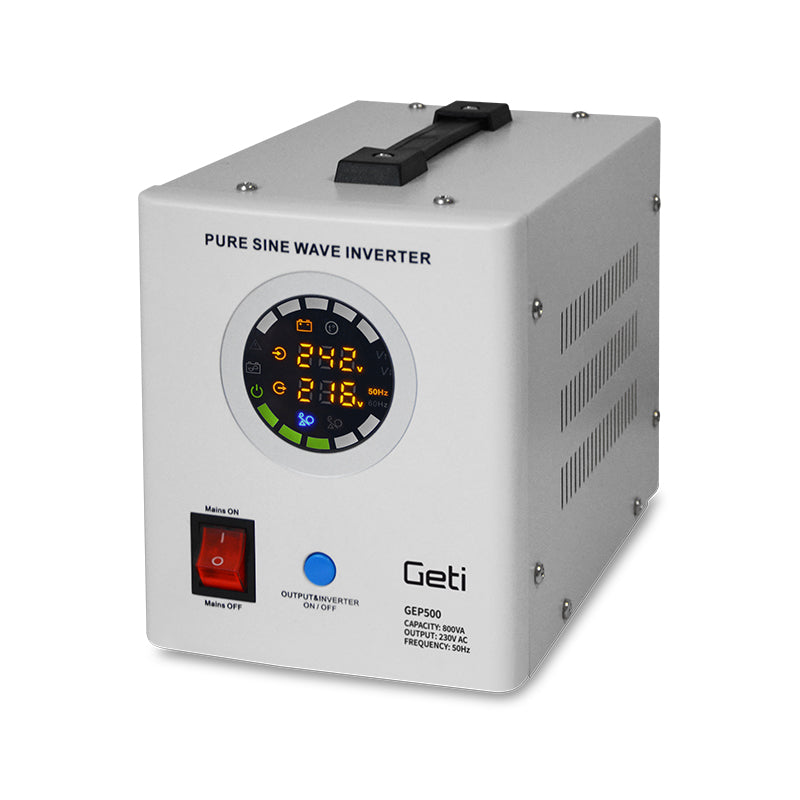

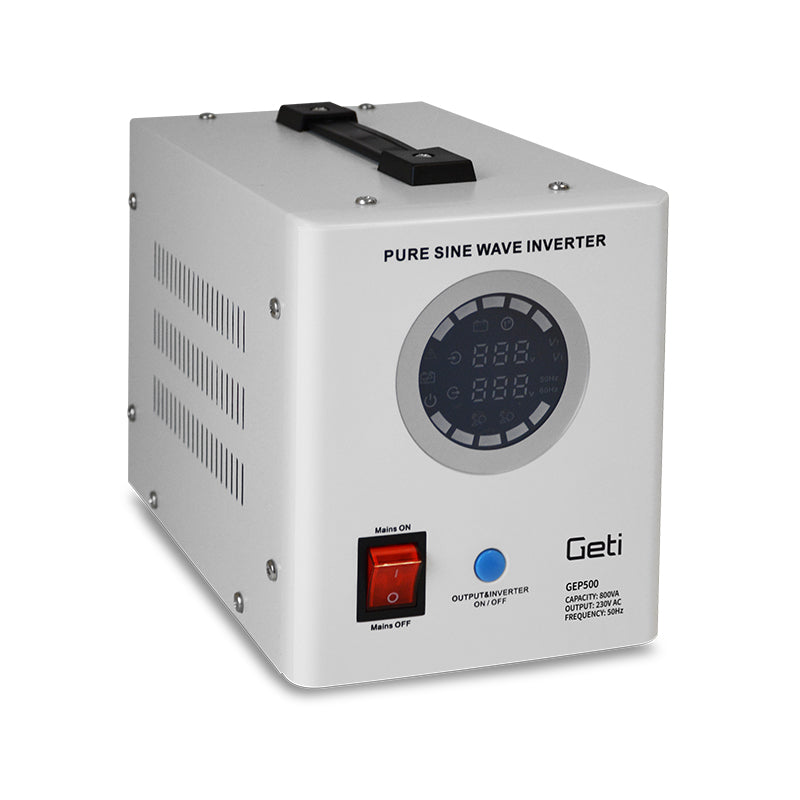

Backup power GETI GEP500 sinus 500W (800VA)

This product comes with a 3-year warranty.

The GETI emergency power supply system (EPS - Emergency Power Supply) is a device that provides a source of alternating voltage in the event of a power failure. You can use the emergency power supply as a backup source for various pumps, automatic boilers, feeders, emergency lighting, camera systems and more. In normal mode, the connected device is powered directly from the network, and in the event of a failure, the emergency power system automatically switches to inverter mode. The connected device is then powered by the connected battery. If the power supply is not restored, the system EPS may be switched off at the moment when the voltage of the connected battery drops to a value of around 10.2V ± 0.3V. This is to protect the battery from deep discharge and subsequent damage. The EPS is equipped with a clear color display, a pure sine voltage converter based on a toroidal transformer and a fast 32-bit processor.

Warning: the contacts of the connected battery must be properly protected against: contact with persons, foreign bodies, contact with other parts of the system or short circuits.

Product description:

- inverter, UPS, AVR and charger in one device
- clear color display
- high efficiency due to construction with toroidal transformer
- high charging current
- protection against overload, short circuit, overcharging and reverse polarity.


Technical parameters:

- type of backup batteries: AGM, GEL (not included in the product)
- backup battery voltage: 12V DC
- rated capacity: 800VA
- rated power: 500W
- transformer: toroid
- input voltage: 230 V AC - 50Hz
- output voltage: 230V AC ± 3% - 50Hz / pure sine wave

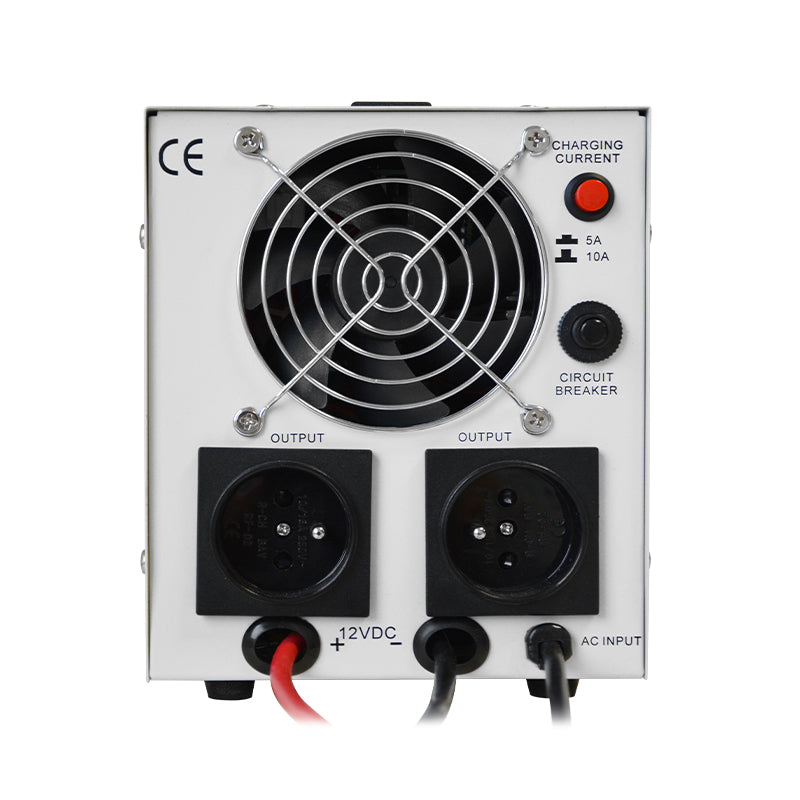

- charging current: 5 A / 10 A optional
- charging voltage: 13.6V ± 0.3V
- low battery voltage limit: 11 V ± 0.3V
- battery low voltage protection point: 10.5V ± 0.3V
- transfer time: < 4 ms
- cooling system: Yes
- operating temperature: 0 ~ 40°C
- relative humidity: 10% ~ 90%
- storage temperature: -15°~ 45°C
- cable length to battery: 2 x 75 cm, M8
- dimension: 230 x 145 x 180 mm
- weight: 6,50 kg


Packaging: box 1pc / carton 4pc
Carton weight: 27,50 kg
