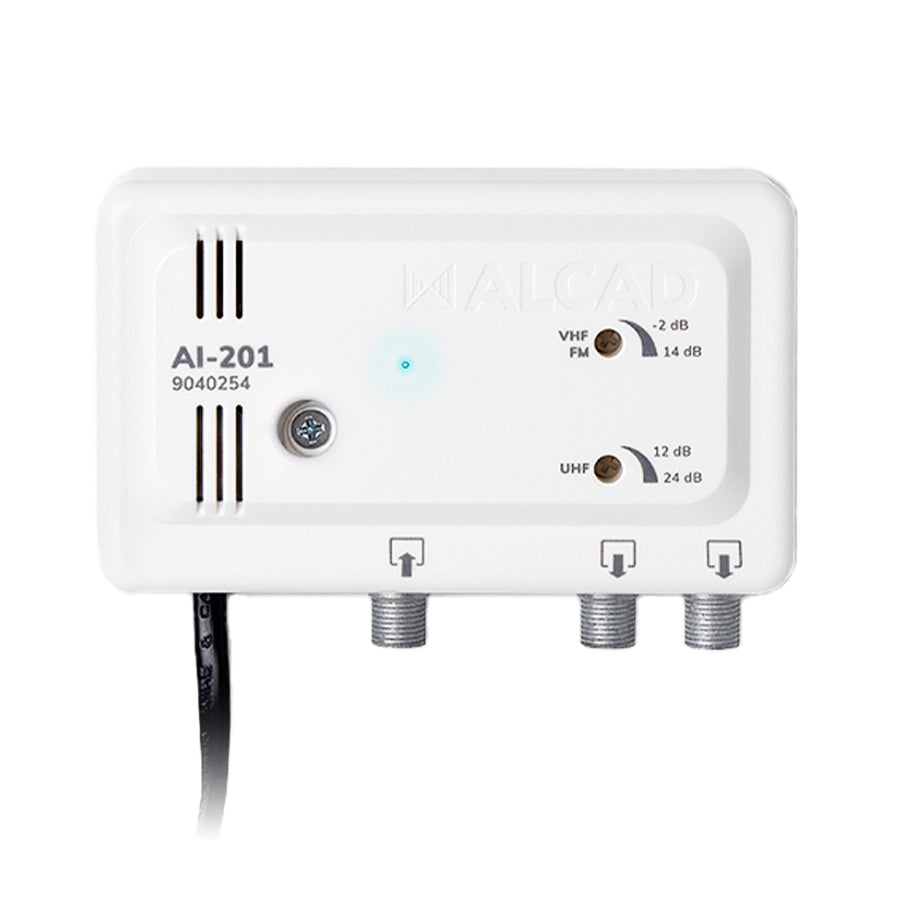

Antenna amplifier ALCAD AI-201
Indoor antenna amplifier - 1 input, 2 outputs, VHF band 40–318 MHz (gain 14±2 dB, control 16 dB, NF <4 dB), UHF band 470–862 MHz (gain 24±2 dB, control 12 dB, NF <4 dB), power supply 230V AC ±10%/50–60Hz, operating temperature -5 to 60°C, IP30 rating, TV and FM signal amplification for small domestic distribution systems
In stock 3 pcs
Expected shipping:
09.10.2026
Regular price
469,00 Kč
387,60 Kč
excl. VAT
Unit price
/
Unavailable
ALCAD | SKU:
14430914
Product description
Antenna amplifier ALCAD AI-201
Technical parameters:
Inputs: 1
Outputs: 2
VHF
Frequency range: 40-318 MHz
Gain: 14 db +/-2 dB
Gain setting: 16 dB
Noise figure: < 4 dB
UHF
Frequency range: 470-862 MHz
Gain: 24 db +/-2 dB
Gain setting: 12 dB
Noise figure: < 4 dB
Power supply: 230 V +/-10% AC, 50/60Hz
Operating temperature: -5 ~ 60 degrees C
Protection class: IP30
Technical parameters:
Inputs: 1
Outputs: 2
VHF
Frequency range: 40-318 MHz
Gain: 14 db +/-2 dB
Gain setting: 16 dB
Noise figure: < 4 dB
UHF
Frequency range: 470-862 MHz
Gain: 24 db +/-2 dB
Gain setting: 12 dB
Noise figure: < 4 dB
Power supply: 230 V +/-10% AC, 50/60Hz
Operating temperature: -5 ~ 60 degrees C
Protection class: IP30
