Welding inverter PROCRAFT RWI-320

MMA inverter welder - IGBT technology, power supply 220–240V / 50Hz, welding current 20–160A, power consumption 5.3kW, duty cycle 40% at 40°C, electrode diameter 1.6–4.0 mm, Arc Force function, Anti Stick and Hot Start, LCD display, weight 4.8 kg, welding shield included, cable with electrode holder, earth clamp and combined brush with hammer

Show full description
In stock 3 pcs
Expected shipping: 21.09.2026
€120,40 €132,99
PROCRAFT  |  SKU: 06444139  |  Barcode: 6973934252538
Log in for VAT-free pricing

Product description

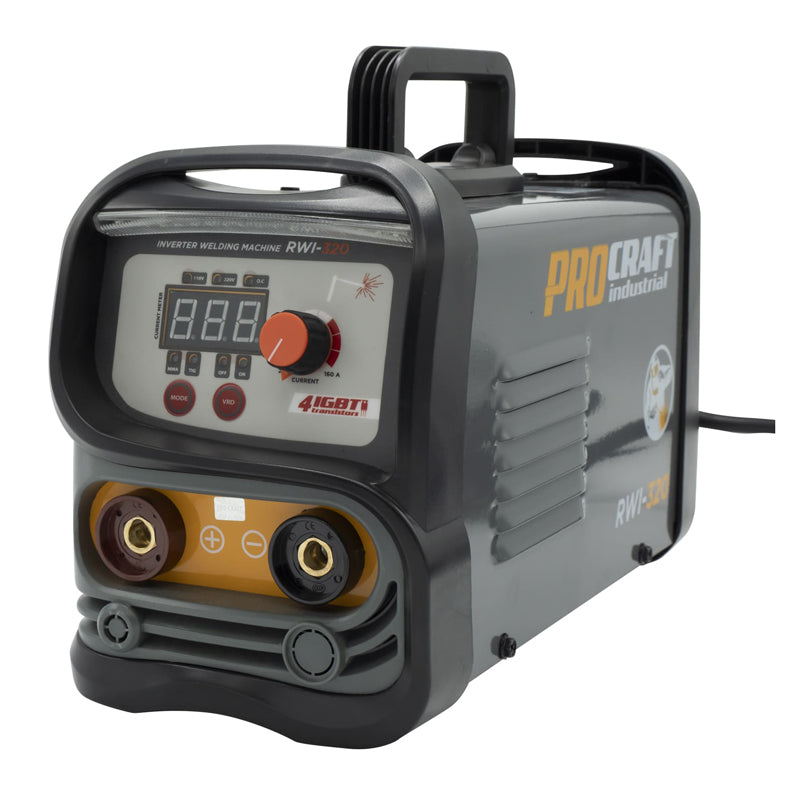

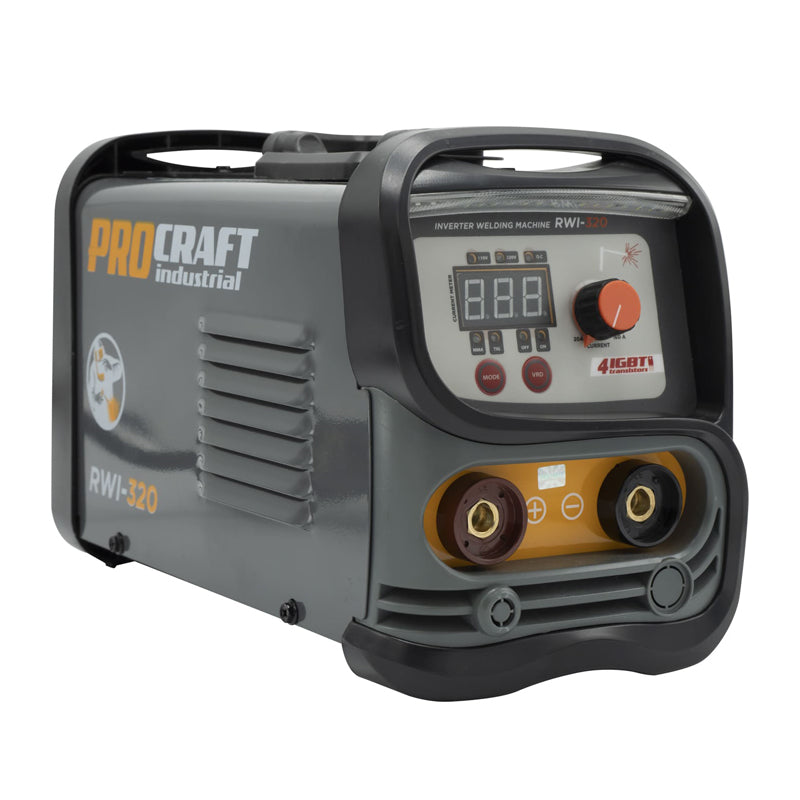

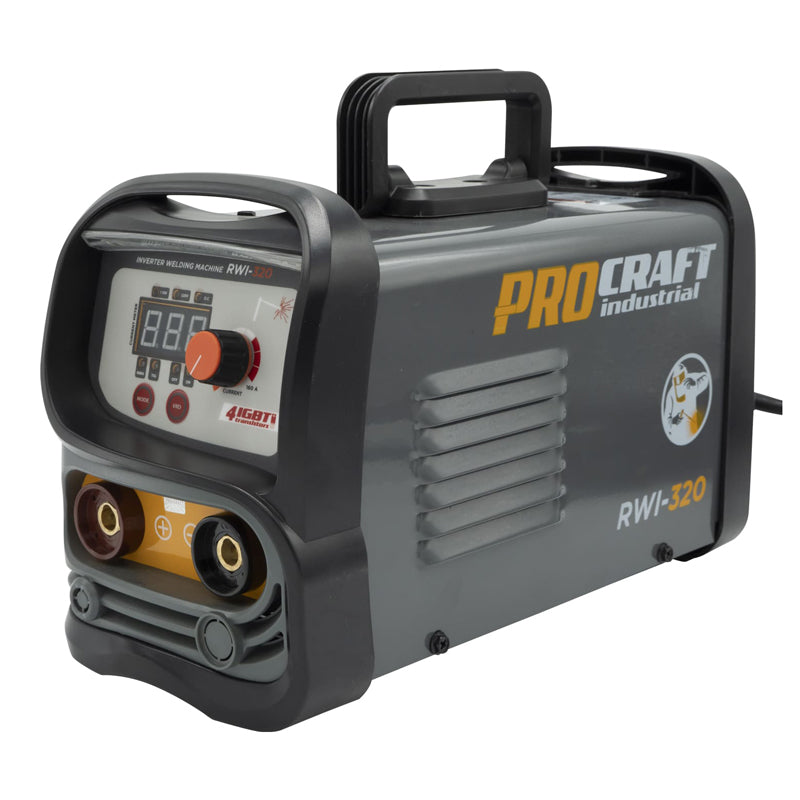

The Procraft RWI-320 welding inverter is designed for manual welding using the MMA method. IGBT power transistors guarantee long trouble-free operation. Welding current regulation in the range of 20-160 A allows you to set optimal parameters when working with different metals. Welding electrodes with a diameter of 1.6 to 4.0 mm can be used. The arc force, anti stick, hot start functions guarantee quick and easy welding. The current welding current is displayed using the LCD display. The delivery includes a welding shield, a cable with an electrode holder, a cable with grounding clamps and a wire brush combined with a slag hammer.

Technical parameters:

Voltage, V: 220-240
Frequency, Hz: 50
Weight, kg: 4.8
Current regulation range (A): 20-160 A
Duty cycle at maximum current (%): 40% at 40 ?
Power consumption (kW): 5.3
Electrode diameter (mm): ?1.6-4.0 mm
Protection degree: IP21S
Efficiency (%): 80%
Max. current (A): 300 A
Welding torch cable length, m: 2.2
Maximum electrode holder current (A): 200 A
Electrode holder cable length: 2.8
40% duty cycle: 160A / 26.4V
60% duty cycle: 113A / 24.5V
100% duty cycle: 87A / 23.5V
