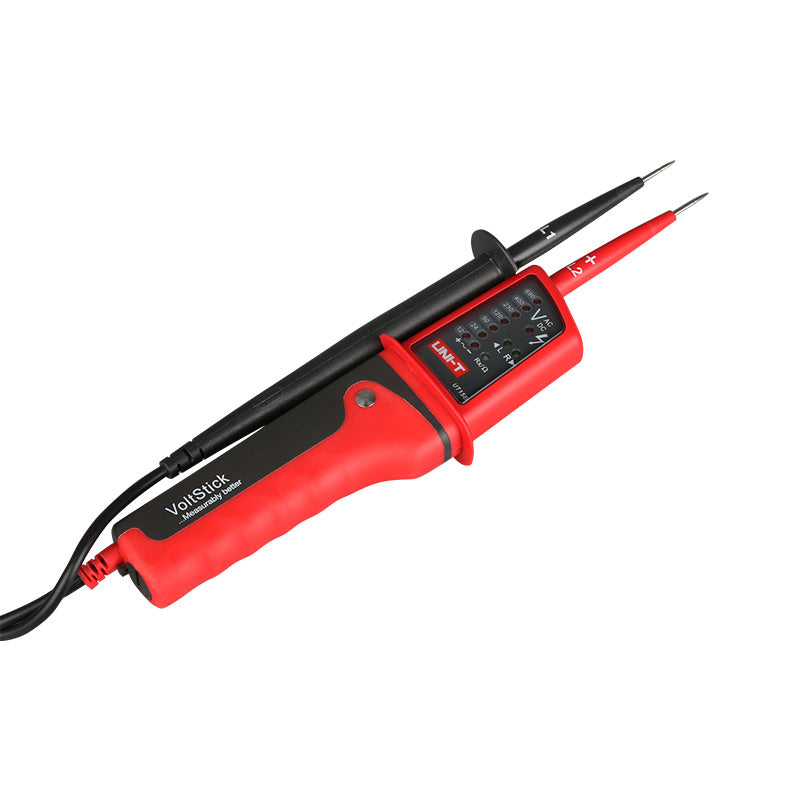

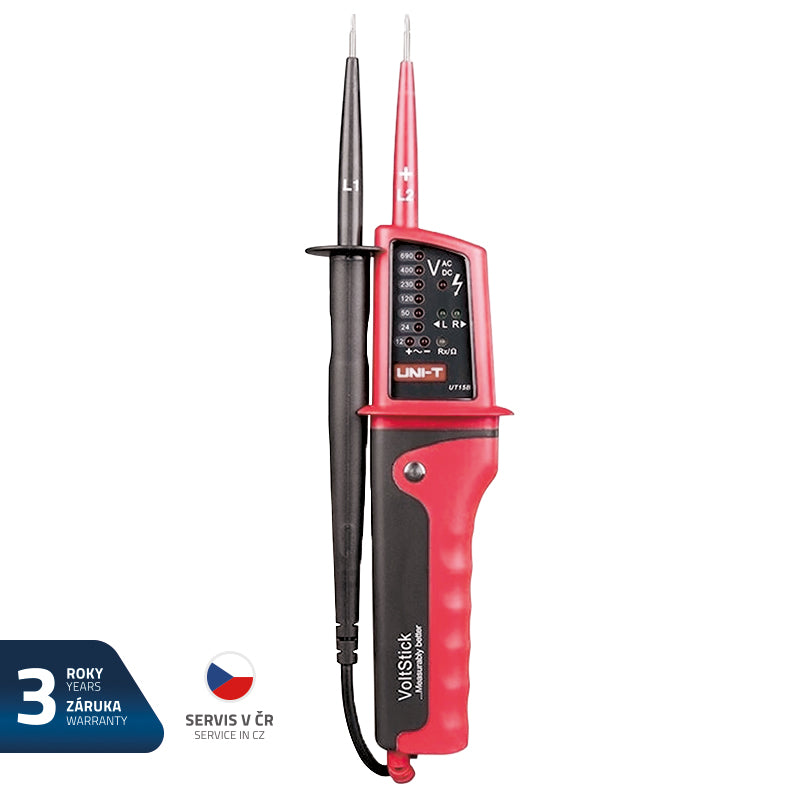

Voltage detector UNI-T UT15B

SPECIFICATION:
Voltage LED Steps (AC/D):
- 12 V (between 0 to 12 V LED will illuminate)
- 24 V (between 19 V +/- 2 V LED will illuminate)
- 50 V (between 48 V +/- 6 V LED will illuminate)
- 120 V (between 110 V +/- 20 V LED will illuminate)
- 230 V (between 200 V +/- 20 V LED will illuminate)
- 400 V (between 340 V +/- 30 V LED will illuminate)
- 690 V (between 520 V +/- 30 V LED will illuminate)

Continuity test: Range 0 to 100 kOhm. The continuity LED will illuminate and buzzer will sound
Test: 50Hz to 60Hz
Range Selection: Automatic
Polarity Detection: Positive & Negative
Low Battery Display: Short circuit two leads, LED and beeper do not on that means the battery is low
Torch: Yes
Single Lead (L2) Voltage Detection: It is intended only as a quick check. 100V to 690V, 50Hz to 400Hz
Short Circuit Detection: Yes
LCD display (AC/DC): No

GENERAL CHARACTERISTICS:
Power: 2x 1.5 V battery (AAA)
Product Net Weight: 210 g
Product size: 275 x 51 x 30 mm
