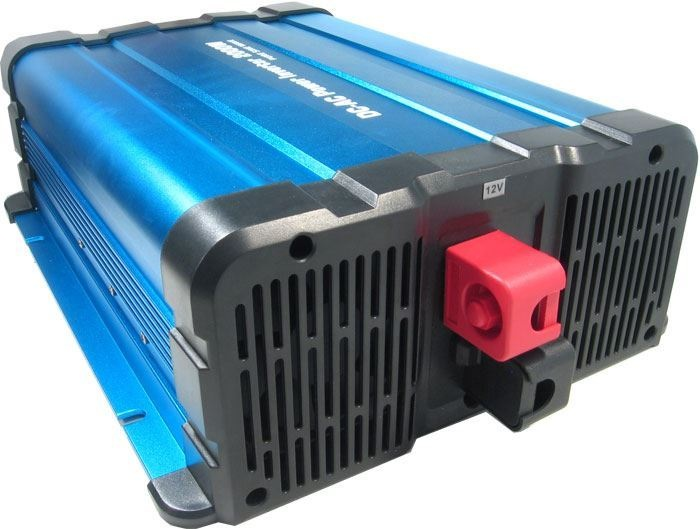

Voltage converter FS2000 24V/230V 2000W pure sine wave D.O. wired

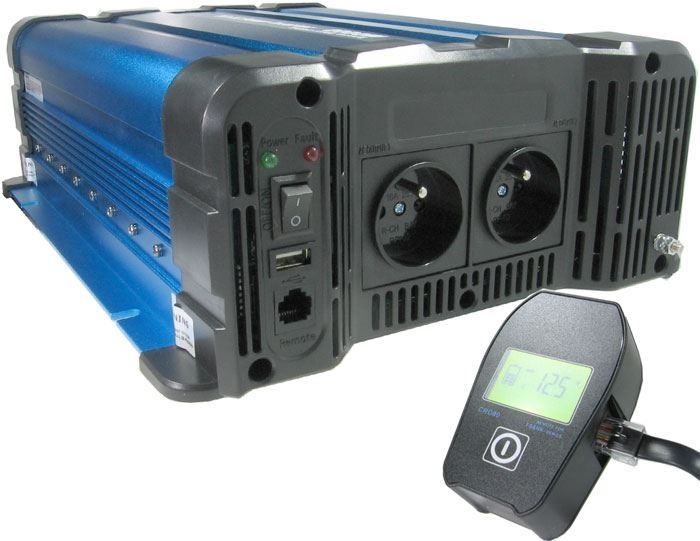

A pure sine wave inverter suitable for appliances with high demands on a pure sine wave of the supply voltage. When using this inverter, there is no risk of damage to appliances with sensitive electronics, such as TV receivers, monitors, some coffee makers, chargers, etc. At the same time, thanks to its performance, it is suitable for emergency use of any appliance with high consumption, such as welders, hand tools, etc. However, with such high consumption, it is necessary to use a battery with a capacity of at least 200Ah and sufficiently dimensioned supply wires (for a distance of up to 5m, at least 35mm2). The inverter is equipped with a removable remote control with a 5m cable and a display. The remote control allows the inverter to be turned on and off, while the switch on the inverter itself also allows the same function. The inverter can also be operated without using a remote control.

Technical parameters:

- nominal input voltage: 24VDC
- permissible input voltage range: 21V-30VDC
- nominal output voltage: 230VAC + USB 5VDC/2.1A
- permissible load: 2000W continuously, 4000W 3sec., 2500W 3min.
- current consumption: 1A no-load, 85A at full load
- efficiency: 89~93%
- undervoltage protection: at Uvst<21V – alarm, <20V – shutdown
- overvoltage protection: at Uvst>31V – shutdown
- thermal protection – against overheating. Automatic reset after cooling.
- protection against overload and short circuit at the output
- soft start: 3–5sec

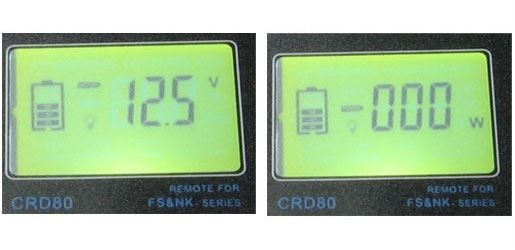

- LCD display with display of battery voltage [DCV] [ and instantaneous consumption [W] – data is displayed sequentially in a period of about 1s
- safety and EMC: EN62040–2,EN61000–3, IEC61000–4–3,IEC61000–4–6
- insulation resistance: 100Mohm/500V, I/P-O/P
- dimensions: 350×230×105mm / 5.8kg
