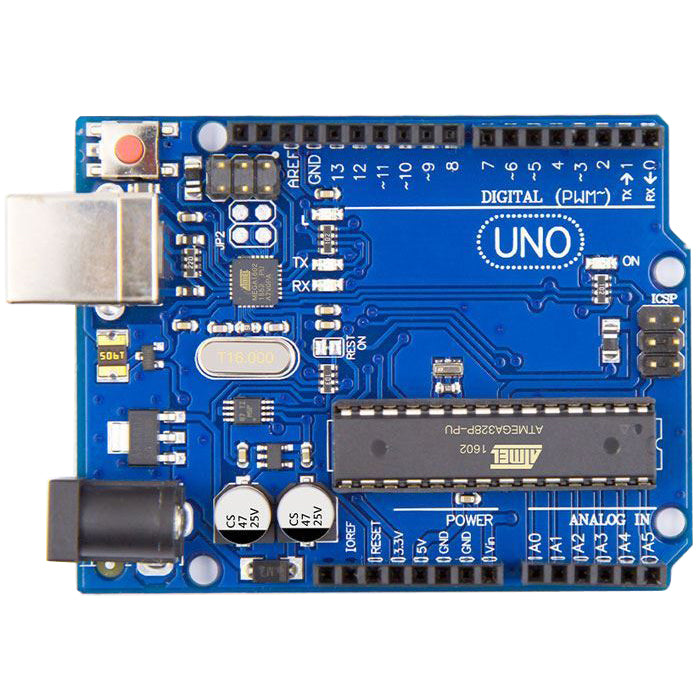

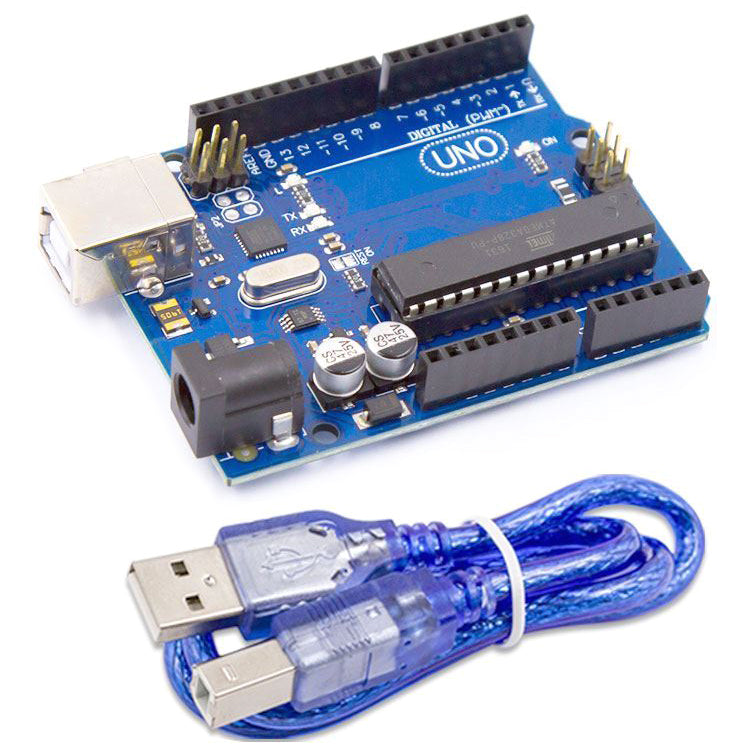

UNO R3 module, Atmega328P, precision Arduino clone

Arduino UNO clone development board - ATmega328P-AU microcontroller, 16MHz crystal, flash 32 kB, SRAM 2 kB, EEPROM 1 kB, ATmega16U2 USB-Serial converter, 14× digital I/O, 6× PWM, 6× analogue input, current per pin 40mA, power supply 7–12V, max. current of the 5V section 800mA, max. current of the 3.3V section 180mA, programming in the Arduino IDE environment (Win/Linux/Mac)

Show full description
In stock 12 pcs
Expected shipping: 24.09.2026
€11,41
TIPA  |  SKU: 09830044  |  Barcode: 8595563728604
Log in for VAT-free pricing

Product description

Precise clone of the Arduino UNO development board, with USB converter ATmega16U2 and USB. The board enables measurement, monitoring and control of devices using a simple programming environment based on the C ++ language.


Technical parameters:

- ATmega328P-AU microcontroller
- 16MHz crystal
- flash 32kB
- SRAM 2kB
- EEPROM 1kB
- USB-Serial Converter ATmega16U2

Inputs and outputs:
- 14 × digital I / O
- 6 × PWM
- 6 × analog inputs
- DC Pin current: 40mA
- DC Current on all IO pins: 150mA
- supply voltage 7–12V (limit 6–20V)
- max current section 5V: 800mA
- max current section 3.3V 180mA

Programming language:
- Wiring with Processing IDE (reference)
- Multiplatform development environment (Win / Linux / Mac /…)

This product is not a stand-alone unit and may require professional installation
