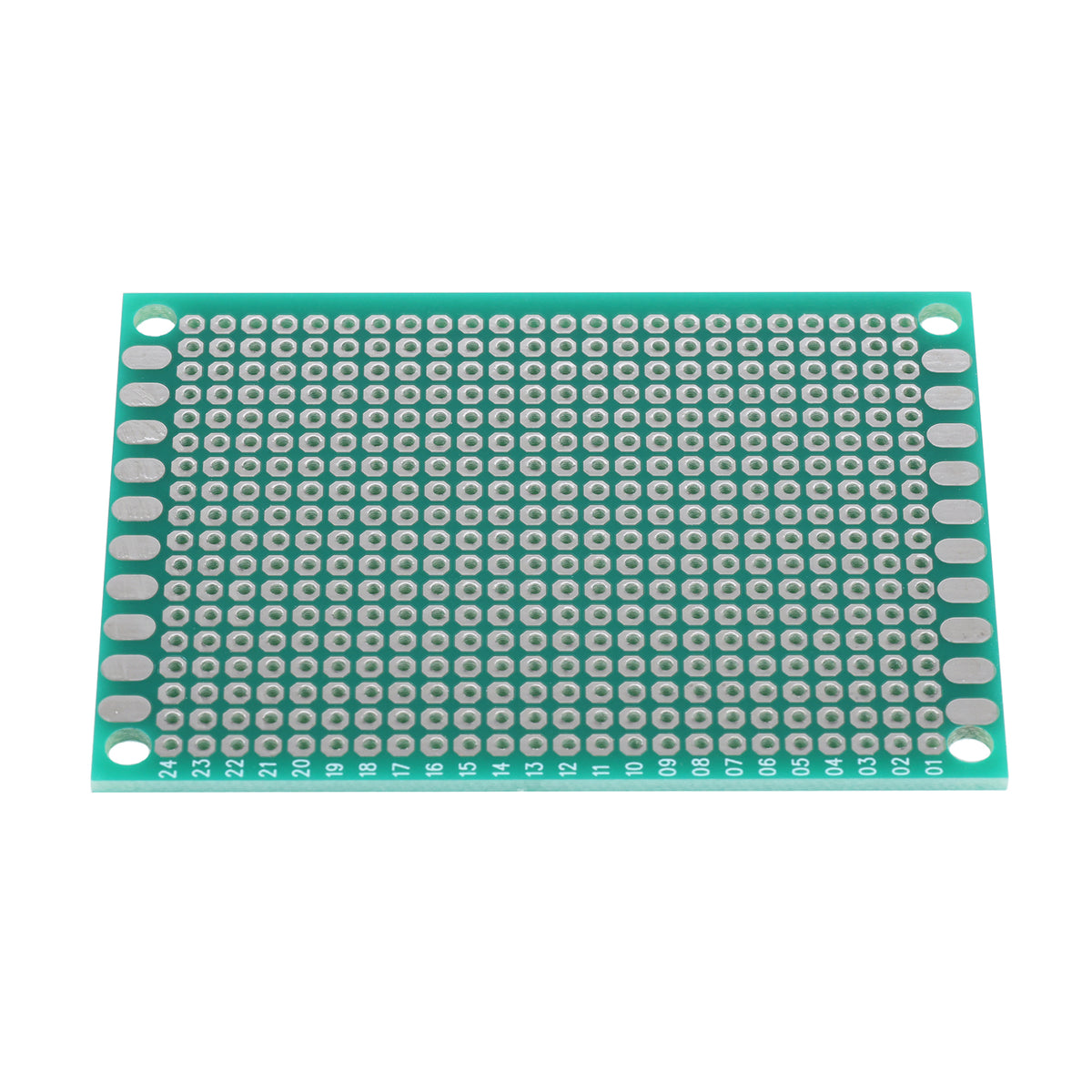

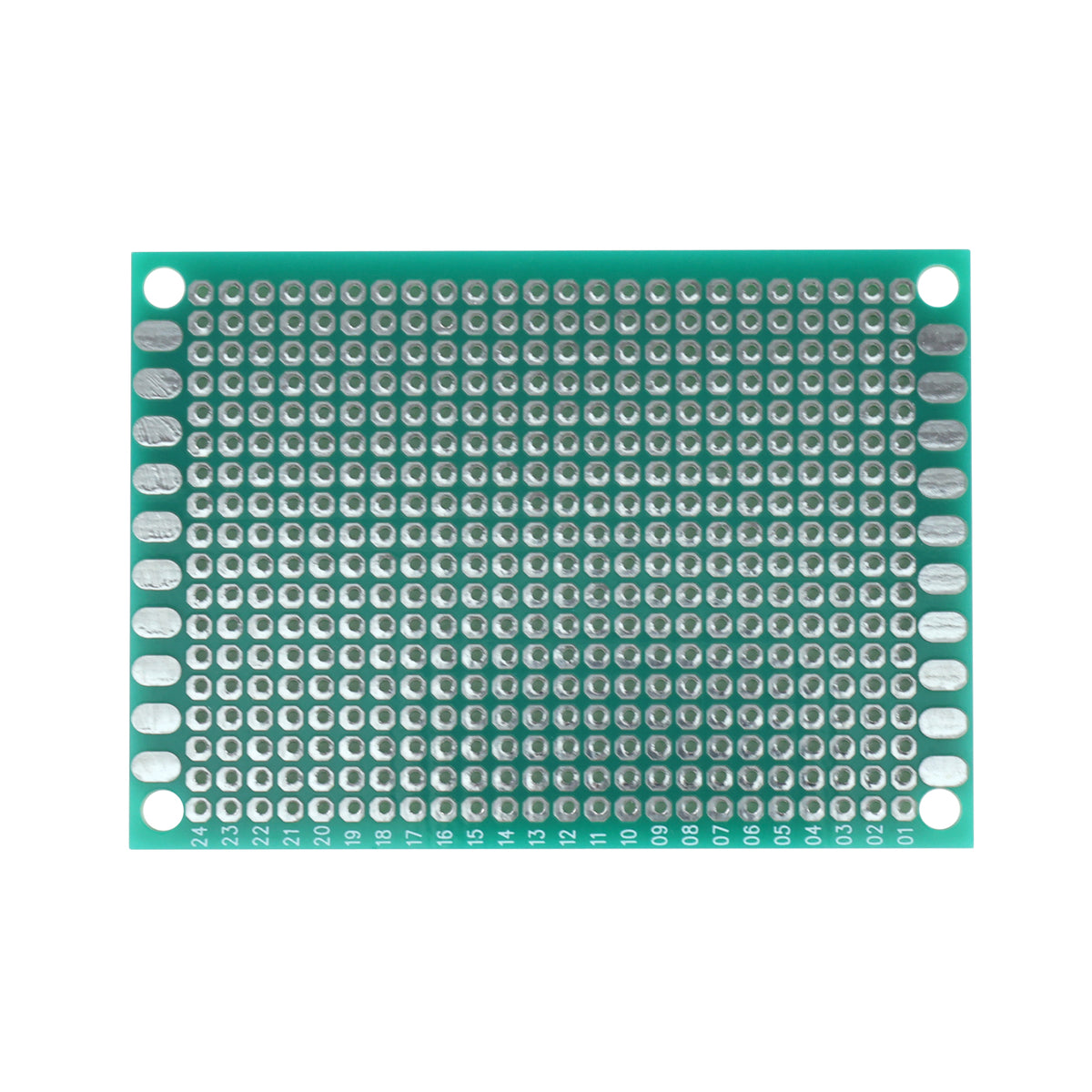

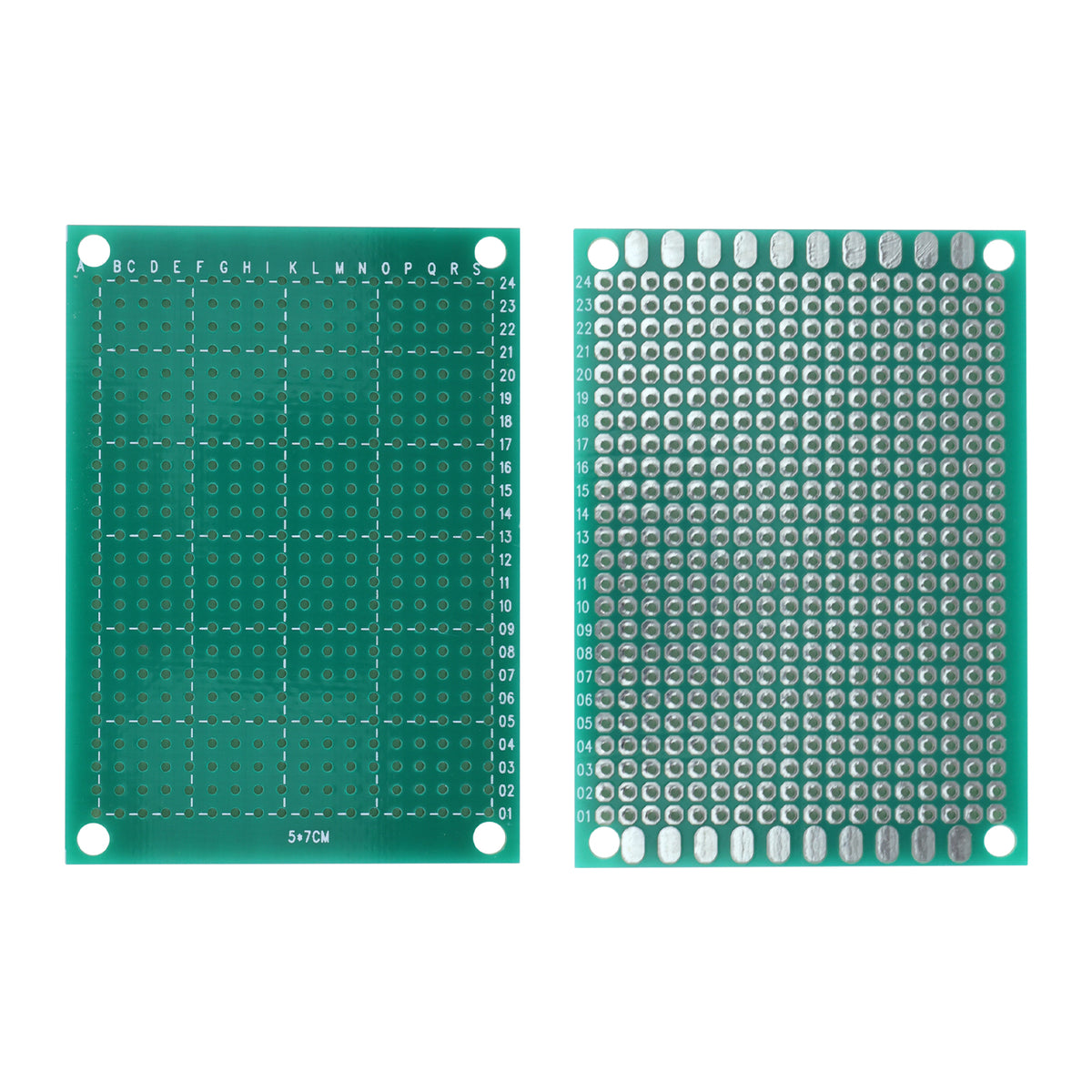

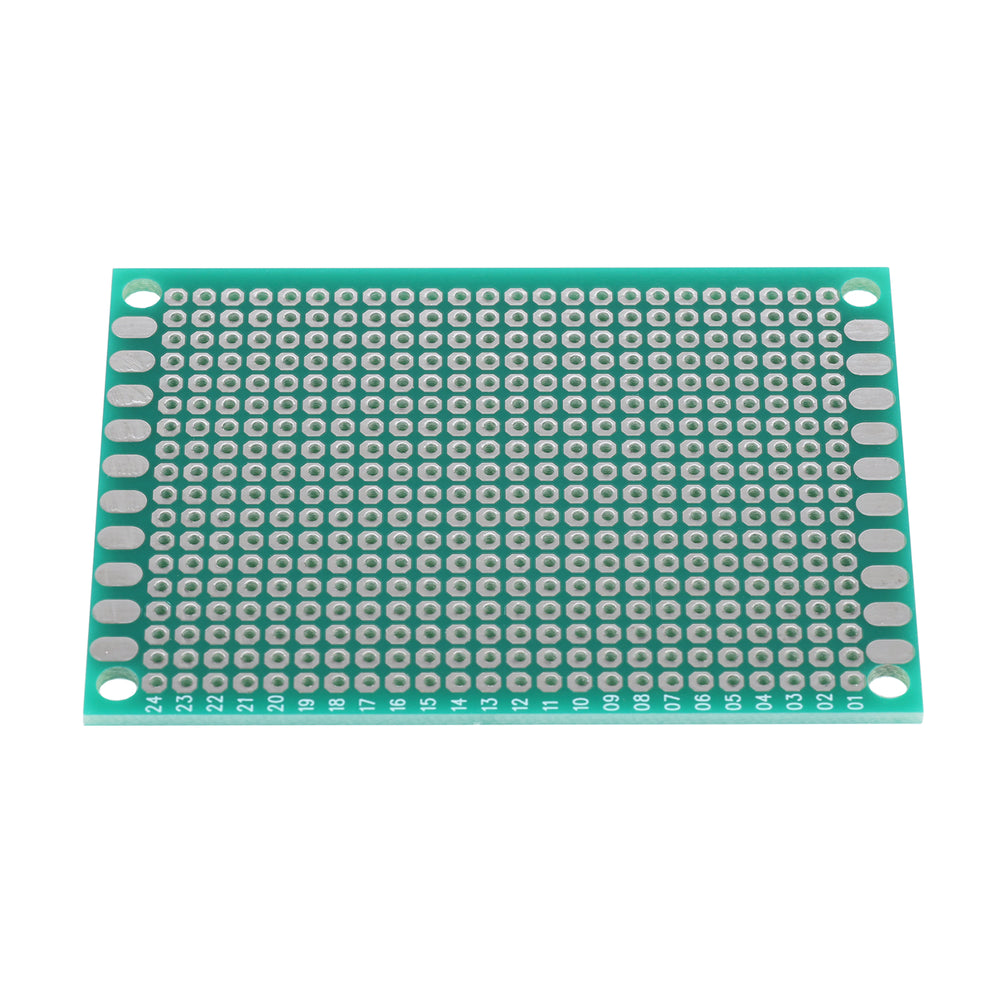

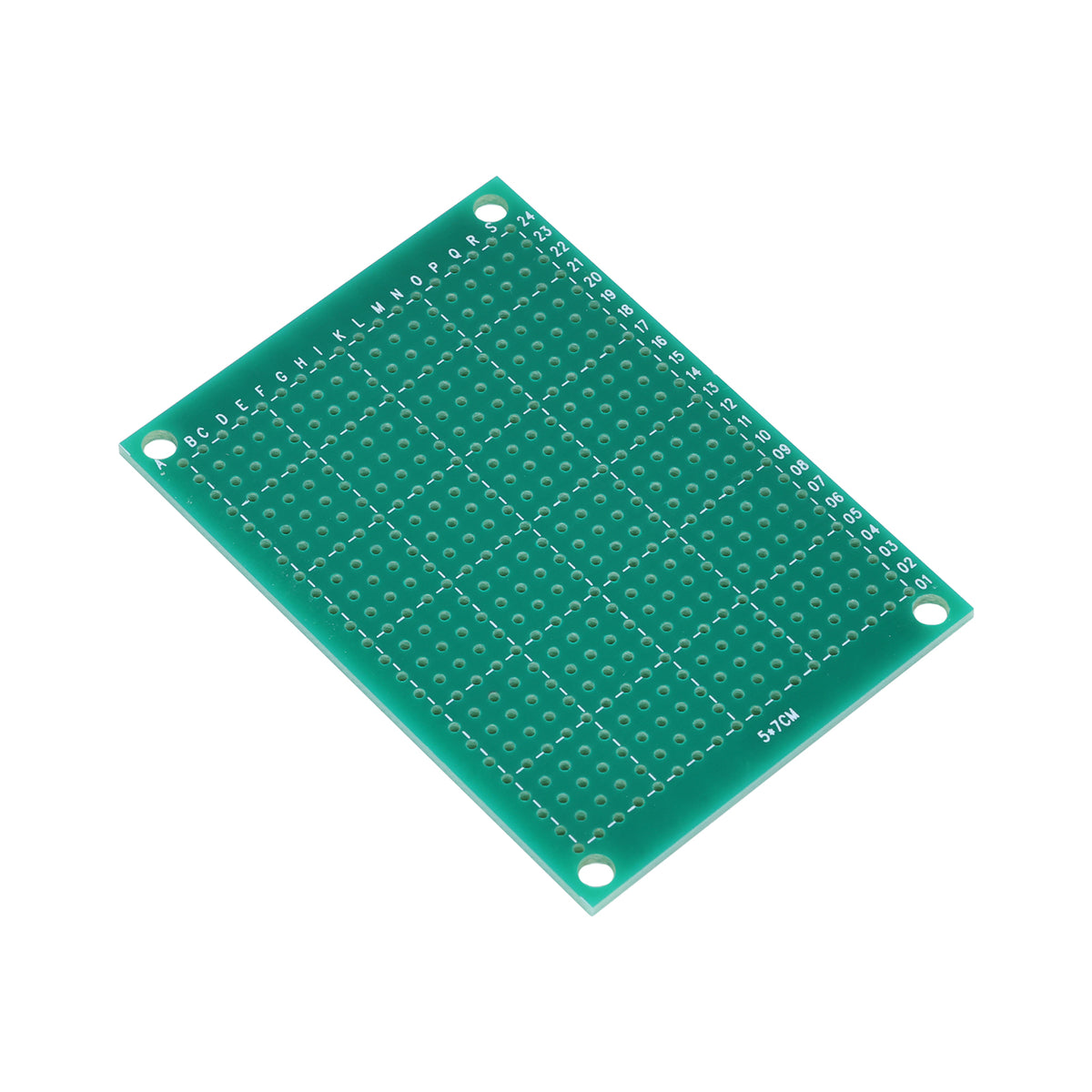

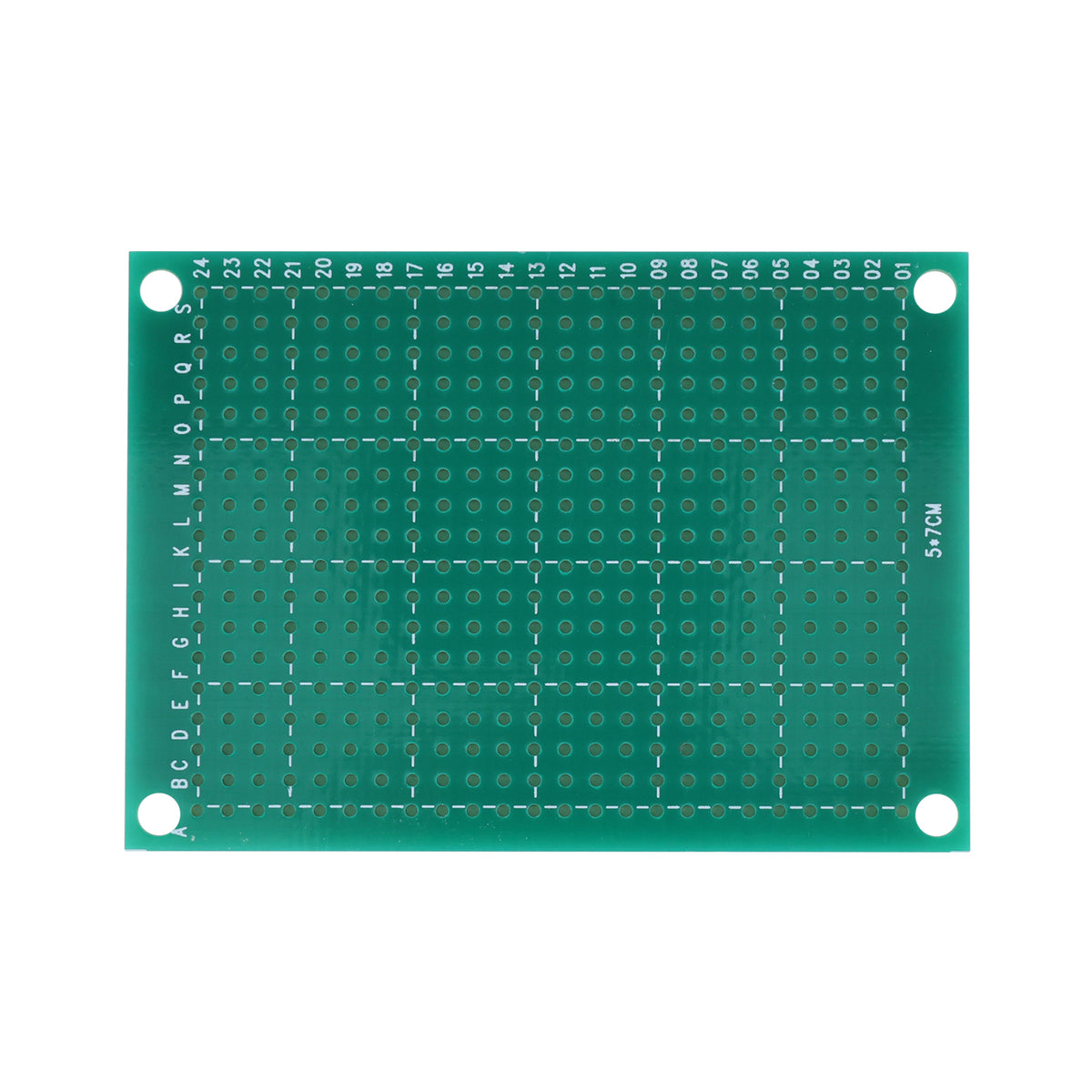

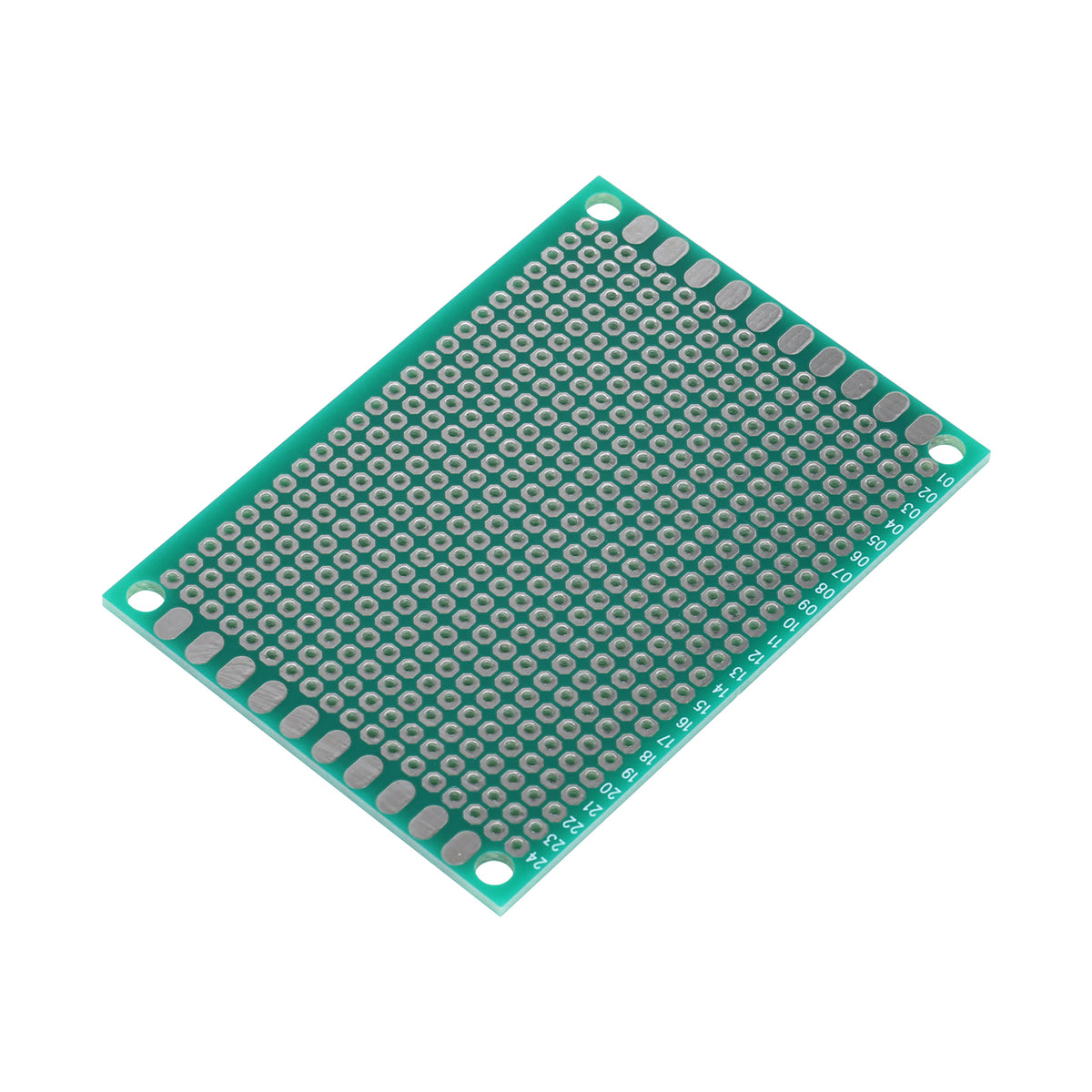

Universal prototype circuit board 5×7 cm - single-sided, pitch 2,54 mm
New
In stock 30 pcs
Expected shipping:
26.10.2026
Regular price
€0,61
Unit price
/
Unavailable
TIPA | SKU:
06570134
Product description
Universal prototype circuit board 5×7 cm - single-sided, pitch 2,54 mm
Do you need more space for your electronic components, larger integrated circuits or more robust terminal blocks? This single-sided universal PCB Prototype Board (PCB Prototype Board) with a more generous 5×7 cm size is the ideal intermediate step for projects that no longer fit on miniature PCB strips.
It offers a stable and reliable platform for the final realization of your circuits developed on the non-soldering field. The regular matrix of solder points allows you to neatly arrange microcontrollers, sensors, power peripherals and indicating elements into one compact and mechanically robust unit.
Main advantages:
- Industry standard 2.54 mm (0.1") grid: The holes are arranged with precise spacing that fits perfectly on integrated circuit sockets (DIPs), classic pin headers, resistors, diodes, capacitors and most common Arduino and ESP modules.
- Practical 5×7 cm format: The optimal size provides enough space for complex wiring with multiple components, but at the same time remains compact enough to be built into commonly available universal plastic boxes.
- High-quality single-sided soldering: pure copper solder pads are located on one side of the board. The surface treatment ensures excellent adhesion of the tin solder, which significantly speeds up work and minimises the risk of cold joints.
- The regular matrix makes it easy to plan the routing of the individual connections using wire jumpers or tin bridges, which simplifies subsequent inspection and possible measurement of the revived circuit.
- Mechanical stability: the supporting insulator is a solid composite material that does not warp during soldering. The board can be easily drilled at the corners for mounting spacers or filed to a specific shape if required.
Technical specifications (All data in one place)
- Product Type.
- Design: Single-Sided
- Board dimensions: 50 mm × 70 mm (5 × 7 cm)
- Hole spacing (raster): Standard 2.54 mm / 100 mils
- Mounting hole diameter: approx. 1.0 mm
- Material: Heat and mechanical resistant dielectric laminate with copper coating
- Color: Standard green/yellow brown (depending on current production batch)
- Usage: DIY electronics, prototyping, school labs, rapid creation of single-purpose modules, robotics
No more chaos on the test field. Give your circuit a solid, clean and permanent form on this versatile 5×7 cm board.
