UNI-T UDP6731 laboratory power supply
New
Laboratory power supply - programmable switching DC power supply, 1 channel, output 0–80V DC / 0–15A, maximum power 360W, voltage resolution 10mV, current resolution 1mA, voltage setting accuracy <0.1 % + 10mV, current accuracy <0.3 % + 10mA, overcurrent and overvoltage protection, LCD display, suitable for teaching, scientific research, R&D and industrial applications, 3-year warranty
Last piece
Expected shipping:
09.10.2026
Regular price
€445,06
Unit price
/
Unavailable
UNI-T | SKU:
04220329
Product description
We provide 3 years warranty for this product.
UNI-T UDP6731 DC Power Supply is a switching power supply with wide output range and high power. It aims to provide affordable programmable DC power supplies for education, scientific research, R&D, manufacturing and industry. With a higher power ratio, you can meet a wider range of applications. The bright LCD display brings a better measurement and debugging experience.
Technical parameters:
- type: programmable switching DC power supply
- number of channels: 1
- maximum power: 360 W
- output voltage: 0 ~ 80 V DC
- output current: 0 ~ 15 A
- maximum output voltage resolution: 10 mV
- maximum output current resolution: 1 mA
- adjustment accuracy: <0.1 % + 10 mV <0.3 % + 10 mA
- protection: overcurrent OCP, overtemperature OTP, overvoltage OVP

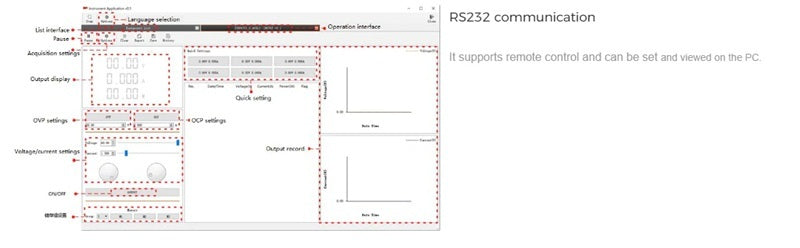

- connection: RS-232
- type of display used: LCD TFT 2.8"
- supply voltage: 230 V AC / 50Hz
- dimensions: 87 x 174 x 255 mm
- gross weight: 2.97 kg
- standard equipment: power cable
UNI-T UDP6731 DC Power Supply is a switching power supply with wide output range and high power. It aims to provide affordable programmable DC power supplies for education, scientific research, R&D, manufacturing and industry. With a higher power ratio, you can meet a wider range of applications. The bright LCD display brings a better measurement and debugging experience.
Technical parameters:
- type: programmable switching DC power supply
- number of channels: 1
- maximum power: 360 W
- output voltage: 0 ~ 80 V DC
- output current: 0 ~ 15 A
- maximum output voltage resolution: 10 mV
- maximum output current resolution: 1 mA
- adjustment accuracy: <0.1 % + 10 mV <0.3 % + 10 mA
- protection: overcurrent OCP, overtemperature OTP, overvoltage OVP
- connection: RS-232
- type of display used: LCD TFT 2.8"
- supply voltage: 230 V AC / 50Hz
- dimensions: 87 x 174 x 255 mm
- gross weight: 2.97 kg
- standard equipment: power cable
