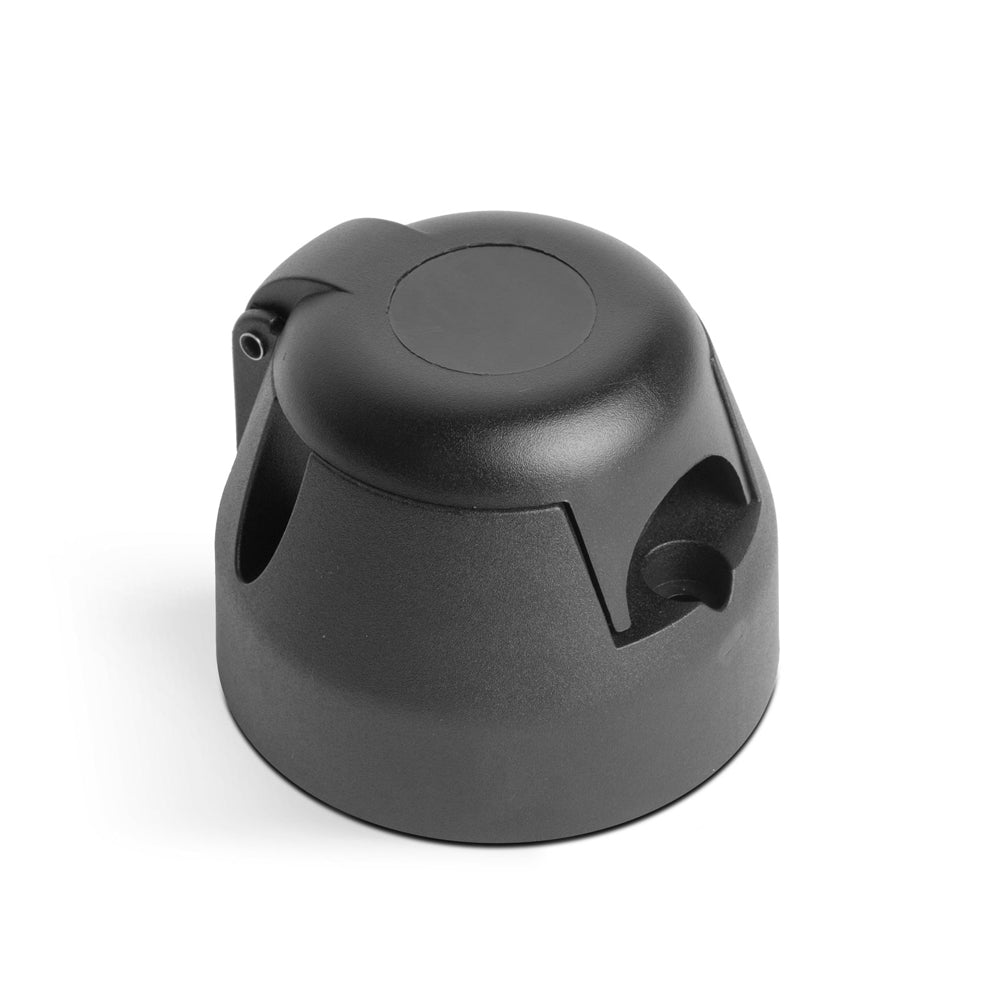

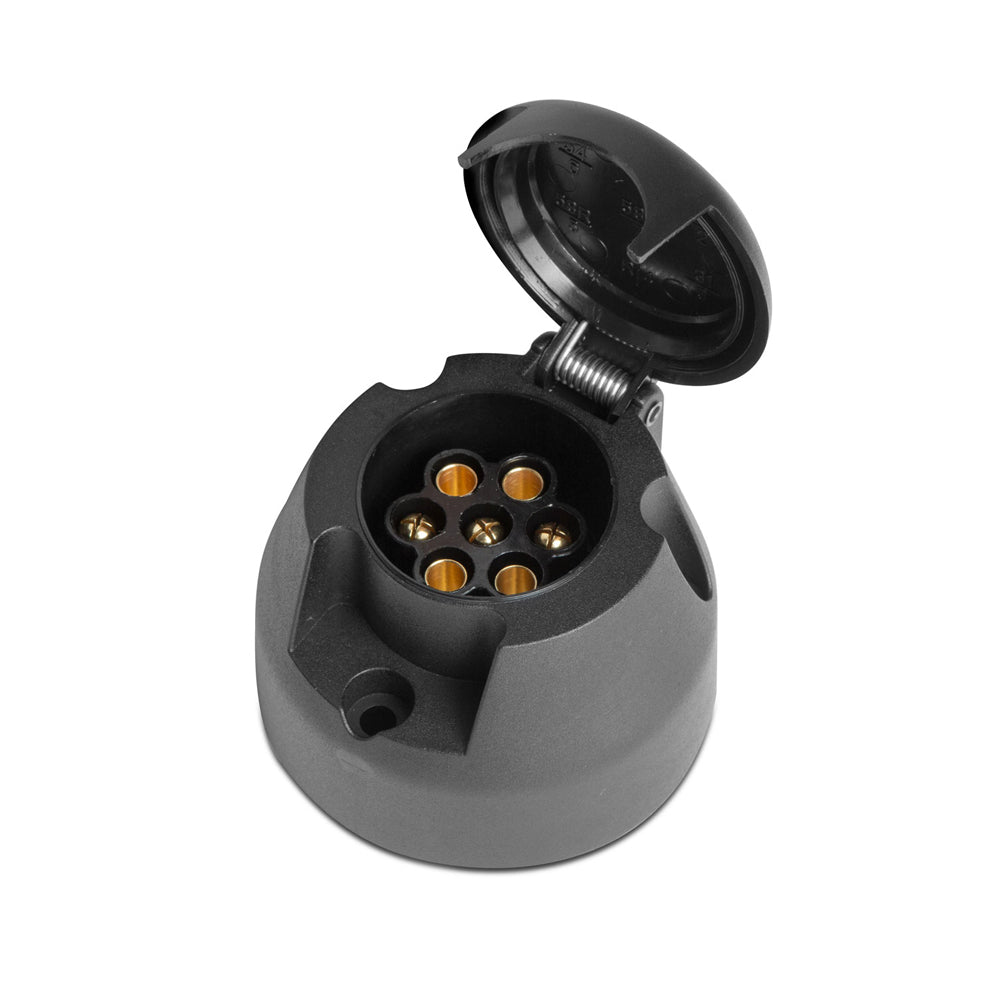

Towing device socket 7 poles 54940
Tow bar socket - 7 pins, max. 12V, spring self-closing cover, screw fastening of cables, colour-marked poles (left/right index, fog lights, brake lights, body), mounting on 3 screws (not included), dimensions O73 × 51 mm, compatible with most cars and trailers
In stock 4 pcs
Expected shipping:
23.09.2026
Regular price
€3,62
Unit price
/
Unavailable
OEM | SKU:
08750215
Product description
Traffic rules state that trailers must be properly lit, only in this way can they be traffic participants. With this socket, you can easily connect your trailer lights to your car's electrical system.
- Excellent contact
- Massive design
- Spring cover
- Removable, installable connectors
- Compatible with most cars and trailers
- Simple connection and assembly
Design compliant with ISO1724.
Technical parameters:
- Voltage: Max. 12V
- Number of poles: 7 pcs
- Marking of poles / colors of cables:
1 - L - yellow - left index
2 - 54G - blue - fog lights
3 - 31 - white - body
4 - R - green - right index
5 - 58R - brown - right turn signals
6 - 54 - red - brake lights
7 - 58L - black - left indicators
- Cable attachment: Screw
- Bracket attachment: 3 screws (not included)
- Size: O73 x 51 mm
- Screw distance: 50 mm
- Black colour
- Weight: 76 g
- Excellent contact
- Massive design
- Spring cover
- Removable, installable connectors
- Compatible with most cars and trailers
- Simple connection and assembly
Design compliant with ISO1724.
