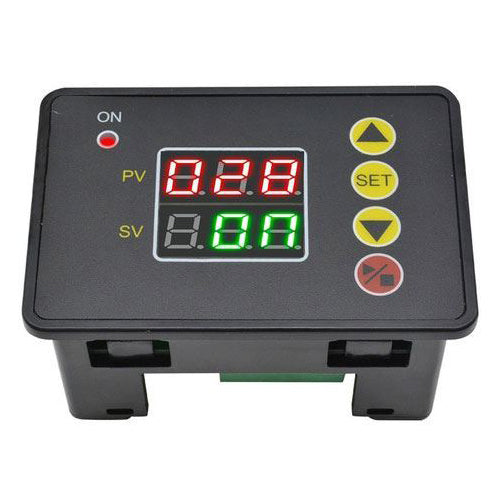

Timer T2310 12V
Timer switch with microcomputer module - power supply 12V DC, relay power max. 240W/10A, normally open relay, relay service life 100 000 cycles, timing error ±3 s per 24 hours, consumption <1W, independent crystal oscillator, dimensions 67 × 45 × 34 mm, built-in opening 63 × 42 mm, weight 65 g, requires professional installation
In stock 5 pcs
Expected shipping:
22.09.2026
Regular price
€6,92
Unit price
/
Unavailable
HADEX | SKU:
09830189
Product description
Timer T2310 12V. Driver type: intelligent microcomputer module with timer, delayed relay module.
Technical parameters:
- operating voltage: DC 12V
- control circuit voltage: DC 12V
- relay load power: 240 W ,, 10 A (max.)
- recommended carrying capacity
- power consumption: <1W
- relay life: 100,000 times
- timing error: ± 3 s (in 24 hours)
- weight: 65 g
- size: 67 mm × 45 mm × 34 mm
- fixed design: built-in hole 63 mm × 42 mm
Product benefits:
- independent crystal oscillator, more accurate timing
- convenient direct output connection
- add a buzzer and an audible alarm
- if you want to stop urgently, add a pause button
The product is not a stand-alone unit, it requires professional installation.
