ST128 proximity flick switch
Touchless IR switch - power supply 12–24VDC, max. load 2A (24W at 12V / 48W at 24V), IR sensor detecting obstacles up to 6 cm away, two control modes: hand wave or door movement, dimensions 15 × 8 × 53 mm, circular frame 18 mm in diameter, 1 m supply cables, mounting with adhesive tape or in a hole, pack includes reflective plate and manual
In stock 2 pcs
Expected shipping:
29.09.2026
Regular price
€5,25
Unit price
/
Unavailable
HADEX | SKU:
04151451
Product description
The contactless switch is primarily designed for wardrobes or smaller spaces where the installation of a classic switch is difficult. It is operated by waving your hand in front of the sensor or by moving the door, e.g. from a wardrobe with a reflective panel in front of the sensor. The motion pulses alternately switch the lighting on and off.
Technical parameters:
- Sensor used: IR transmitter and receiver detecting an obstacle within a distance of 6cm.
- Power supply: 12-24VDC
- Load: max.2A (24W/12V, 48W/24V)
- Supply cables: power-1m, lighting-1m
- Mode switch: wave or move the door

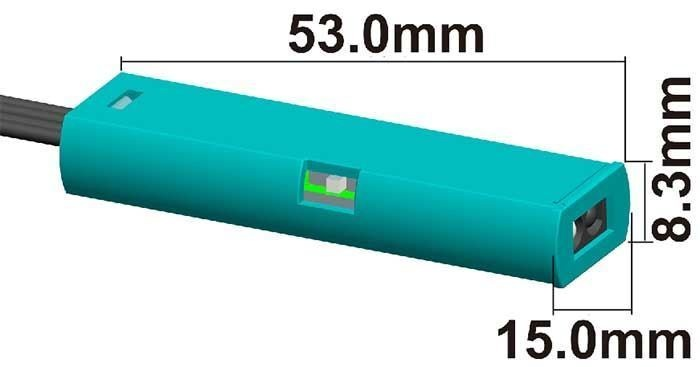

- Dimensions: 15×8×53mm, circular bezel diameter 18mm
Package contents:
- ST128 switch
- Double-sided adhesive tape for mounting on a pad
- circular frame for mounting in the hole
- Reflective surface sticker
- EN manual
Technical parameters:
- Sensor used: IR transmitter and receiver detecting an obstacle within a distance of 6cm.
- Power supply: 12-24VDC
- Load: max.2A (24W/12V, 48W/24V)
- Supply cables: power-1m, lighting-1m
- Mode switch: wave or move the door
- Dimensions: 15×8×53mm, circular bezel diameter 18mm
Package contents:
- ST128 switch
- Double-sided adhesive tape for mounting on a pad
- circular frame for mounting in the hole
- Reflective surface sticker
- EN manual
