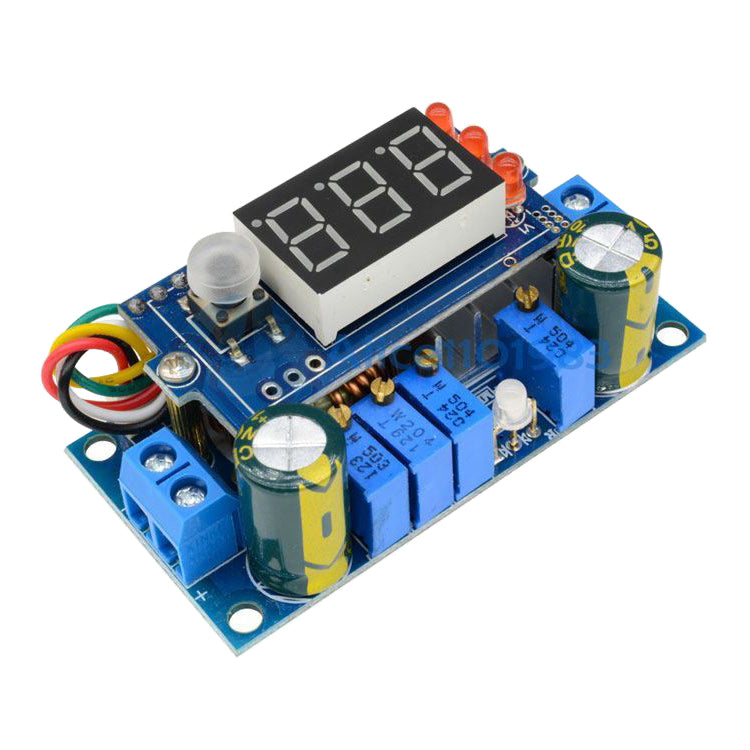

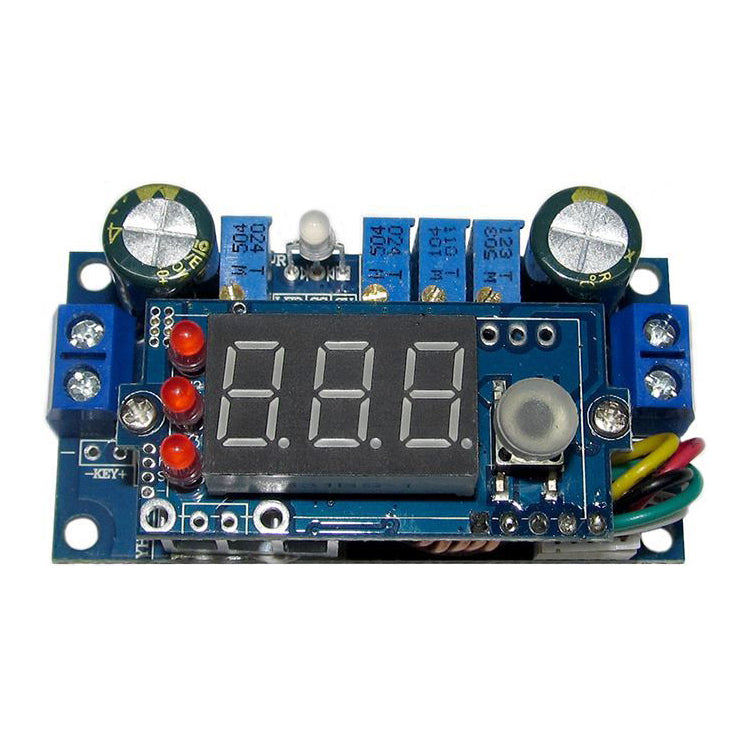

Solar regulator MPPT module with display, 6-36V 5A
17% off
MPPT solar controller - module with display, input voltage 6–36VDC, output voltage 1.25–32VDC (preset 5V), output current 0.05–5A (continuous max. 3A), compatible with Pb 12/24V batteries, Li 7.2–14.4V, Ni-Cd/Ni-MH 7.2–14.4V, automatic 3-stage charging, efficiency 93%, quiescent current 3mA, protection against reverse polarity, short circuit and reverse current, dimensions 60 × 32 × 28 mm
Not in stock
Sale price
€10,12
Regular price
€12,15
Unit price
/
Unavailable
HADEX | SKU:
04280150
Product description

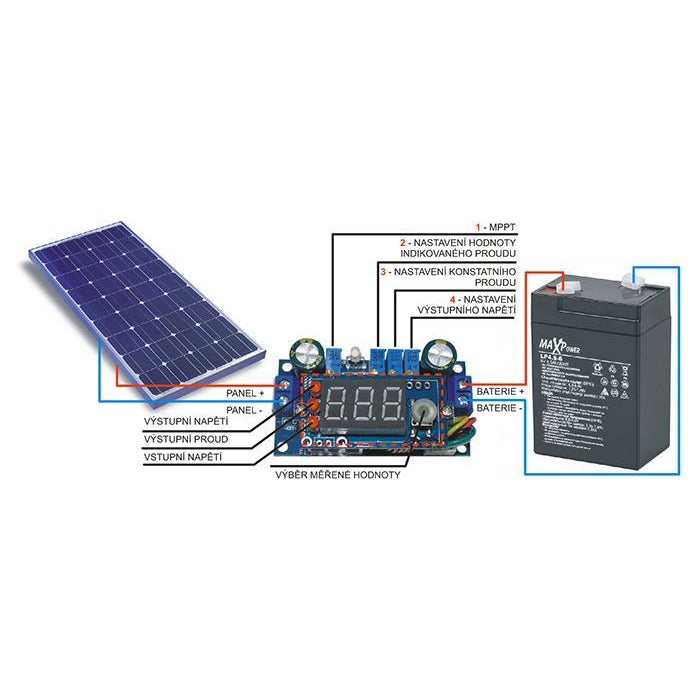

Non-isolated power supply module with MPPT function suitable as a solar controller or battery charger with V-A characteristic conversion for the most efficient use of the power supply.
Technical parameters:
- input voltage: 6-36VDC
- output voltage: 1.25–32VDC (preset 5V)
- output current: 0.05–5A (continuous max.3A)
- Pb battery: 12 / 24V
- Lithium batteries: 7.2 / 10.8 / 14.4V
- Ni-Cd, Ni-MH batteries: 7.2-14.4V
- charging method: automatic 3-stage
- efficiency 93%
- own consumption 3mA
- protection: against polarity reversal, short circuit, against backflow into the panels
- dimensions (LxWxH): 60 × 32 × 28mm

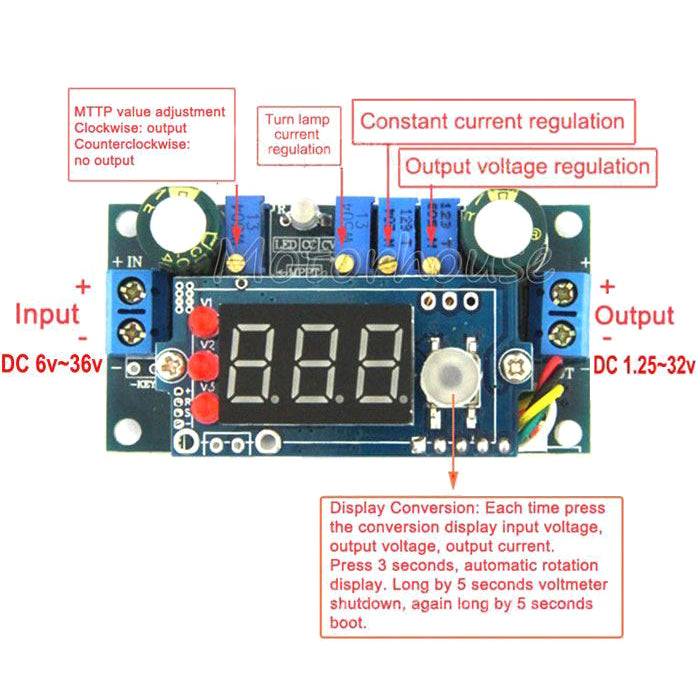

Settings: see instructions
Technical parameters:
- input voltage: 6-36VDC
- output voltage: 1.25–32VDC (preset 5V)
- output current: 0.05–5A (continuous max.3A)
- Pb battery: 12 / 24V
- Lithium batteries: 7.2 / 10.8 / 14.4V
- Ni-Cd, Ni-MH batteries: 7.2-14.4V
- charging method: automatic 3-stage
- efficiency 93%
- own consumption 3mA
- protection: against polarity reversal, short circuit, against backflow into the panels
- dimensions (LxWxH): 60 × 32 × 28mm
Settings: see instructions
