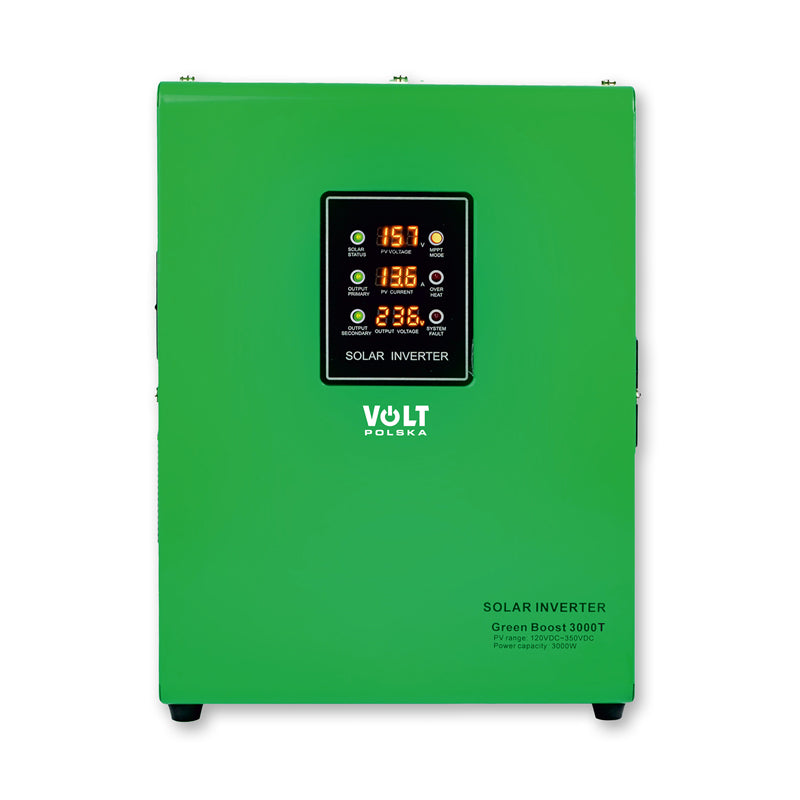

Solar regulator for water heating VOLT Green Boost 3000 TERMINAL
Recommended
Solar MPPT converter for water heating - type Green Boost 3000 Terminal, max. power 3000W, PV panel input voltage range 120–350VDC, output voltage 120–245VAC/50Hz, max. output current 14A, modified sine wave output, connection of 4–9 PV panels (250–400W) connected in series, terminal block connection, suitable for electric boilers, radiators, water heaters and underfloor heating
Not in stock
Regular price
€215,25
Unit price
/
Unavailable
VOLT | SKU:
04280391
Product description
Solar converter for water heating, boiler GREEN BOOST MPPT-3000T is used to supply heating devices directly from solar PV panels.
The system is very simple and functional. 4 to 9 classic PV panels (250W - 400W) are needed, which will be connected in series and their total voltage will be in the range of 120 V to 350 V.

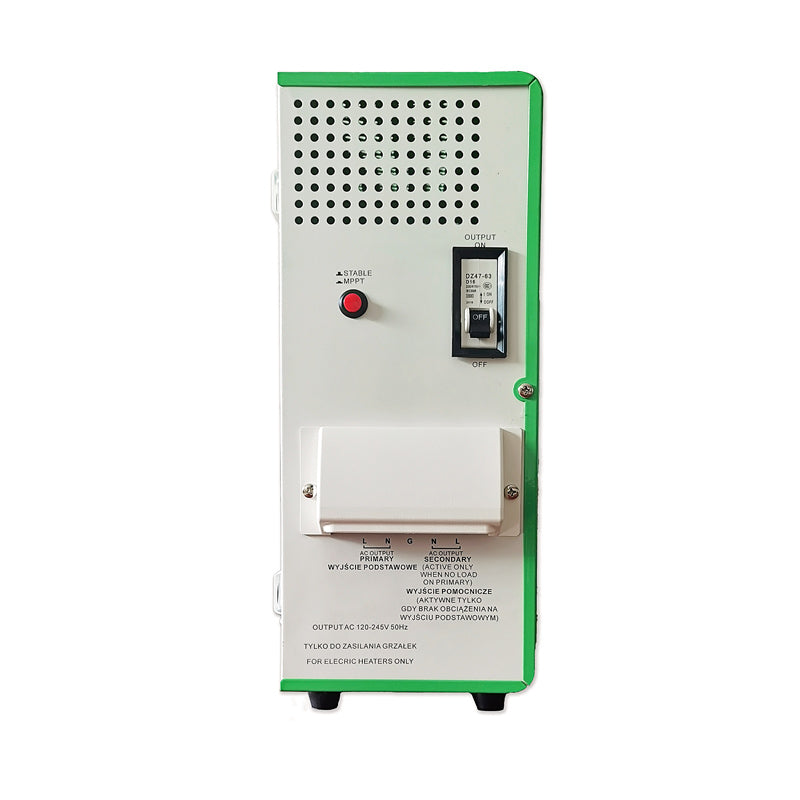

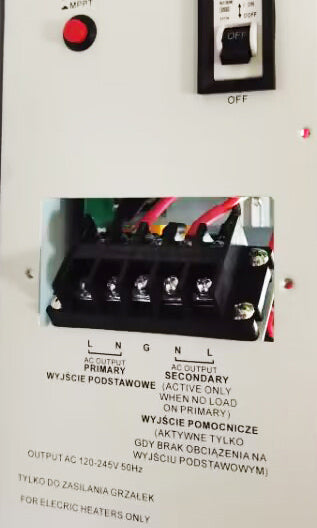

Unlike the standard model, this device is equipped with a terminal block instead of classic sockets.
What devices power the GREEN BOOST MPPT solar converter?
- Electric boilers
- Radiators
- Electric heaters
- Electric mats
- Floor heating
Technical parameters:
- Maximum power: 3000W
- Panel voltage range: 120VDC~350VDC
- Output voltage range: 120 - 245VAC/50Hz
- Maximum current given to the device from solar panels: 14A
- Output voltage type: modified sine wave
- Output voltage frequency: 50 Hz
- Type of power supply (input): MC4 (female-male)
- Input jack: 2 pcs
- Overload/short circuit/overvoltage protection: Yes
- Protection against overheating: 100 °C
- Working temperature: -25°C ÷ 55°C
- Efficiency: >94%
- Cooling: active
- Security level: IP21
- Dimensions: 311x232x140mm
- Weight: 3.3 kg
The system is very simple and functional. 4 to 9 classic PV panels (250W - 400W) are needed, which will be connected in series and their total voltage will be in the range of 120 V to 350 V.
Unlike the standard model, this device is equipped with a terminal block instead of classic sockets.
What devices power the GREEN BOOST MPPT solar converter?
- Electric boilers
- Radiators
- Electric heaters
- Electric mats
- Floor heating
Technical parameters:
- Maximum power: 3000W
- Panel voltage range: 120VDC~350VDC
- Output voltage range: 120 - 245VAC/50Hz
- Maximum current given to the device from solar panels: 14A
- Output voltage type: modified sine wave
- Output voltage frequency: 50 Hz
- Type of power supply (input): MC4 (female-male)
- Input jack: 2 pcs
- Overload/short circuit/overvoltage protection: Yes
- Protection against overheating: 100 °C
- Working temperature: -25°C ÷ 55°C
- Efficiency: >94%
- Cooling: active
- Security level: IP21
- Dimensions: 311x232x140mm
- Weight: 3.3 kg
