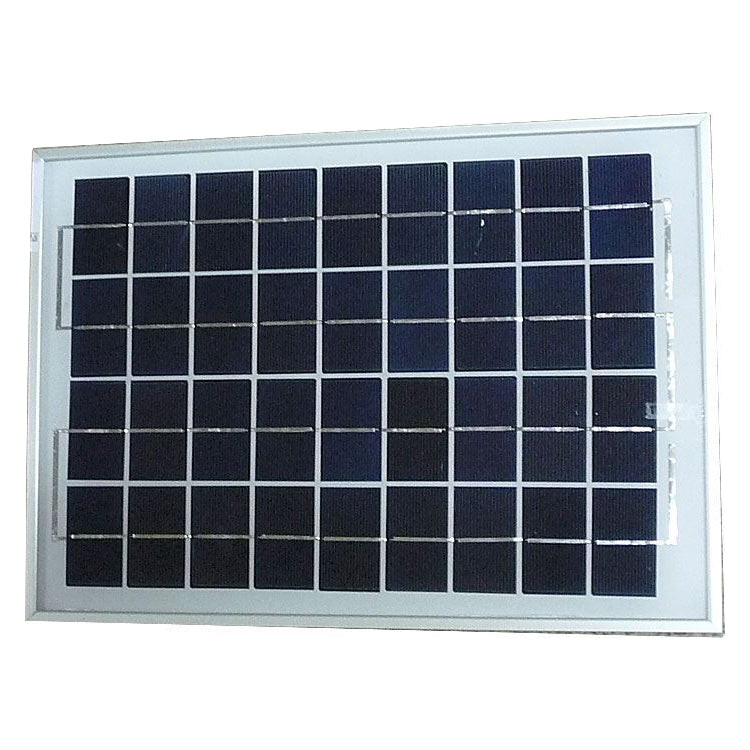

Solar panel 12V/10W polycrystalline
Solar panel - polycrystalline silicon, power 10W, open-circuit voltage 21.58V, short-circuit current 0.64A, voltage under load 17.42V, current under load 0.57A, 17 mm thick duralumin frame, tempered cover glass, operating temperature -45 to +85°C, higher yield in diffuse light and unfavourable conditions, suitable for 12V systems and battery charging
In stock 12 pcs
Expected shipping:
09.10.2026
Regular price
€14,17
Unit price
/
Unavailable
HADEX | SKU:
04280032
Product description
Photovoltaic panel made of polycrystalline silicon. Aluminum frame 17mm, cover glass.
Polycrystalline cell:
Substrates are produced from smaller silicon crystals and pressed into one unit.
The round ingot is then cut into so called wafers, which are cut to the desired PV cell size.
Obviously, this technology cannot achieve such purity of the material;
Advantages of polycrystalline:
Slightly higher diffuse light production yield (unfavorable lighting conditions) Photovoltaic panel made of polycrystalline silicon. Aluminum frame 17mm, cover glass.

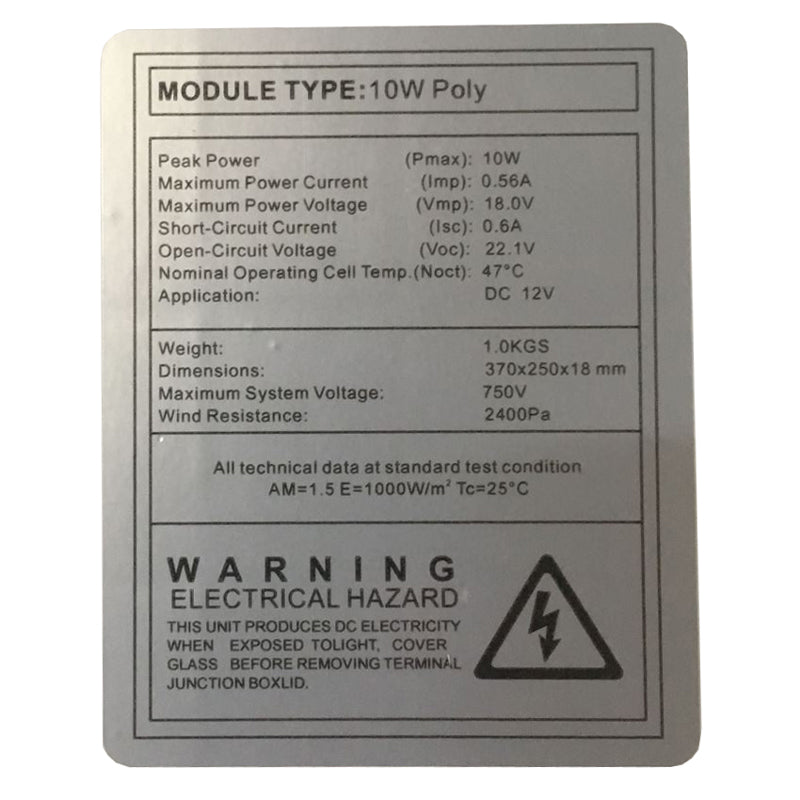

Technical parameters :
- No load voltage Voc = 21,58V
- Max. Short-circuit current Isc = 0,64A
- Max. Voltage 10W: Vmp = 1742V
- Max current at 10W: Imp = 0.57A
- Working temperature –45 + 85st.C
- Dimensions: 370 x 250 x 18 mm
- Weight: 1.02 kg
Polycrystalline cell:
Substrates are produced from smaller silicon crystals and pressed into one unit.
The round ingot is then cut into so called wafers, which are cut to the desired PV cell size.
Obviously, this technology cannot achieve such purity of the material;
Advantages of polycrystalline:
Slightly higher diffuse light production yield (unfavorable lighting conditions) Photovoltaic panel made of polycrystalline silicon. Aluminum frame 17mm, cover glass.
Technical parameters :
- No load voltage Voc = 21,58V
- Max. Short-circuit current Isc = 0,64A
- Max. Voltage 10W: Vmp = 1742V
- Max current at 10W: Imp = 0.57A
- Working temperature –45 + 85st.C
- Dimensions: 370 x 250 x 18 mm
- Weight: 1.02 kg
