SOLARFAM 540 Wp 12V 200Ah off-grid solar system

A stand-alone solar system with higher direct output and a high-capacity battery for locations without mains electricity. The system is designed cost-effectively for low to medium energy consumption. Ideal for garden sheds, gazebos, holiday cottages, boats or even motorhomes, where the purchase price is a key consideration. The high-capacity backup battery can supply electricity to appliances for an extended period.

Warning! The installation of a solar system must always be carried out by a person with the appropriate professional qualifications! NOTE: The photograph of the system is for illustrative purposes only. The components actually supplied may differ from those shown in the image. This does not affect the specified parameters or the system’s functionality.

The kit operates at a system voltage of 12V.

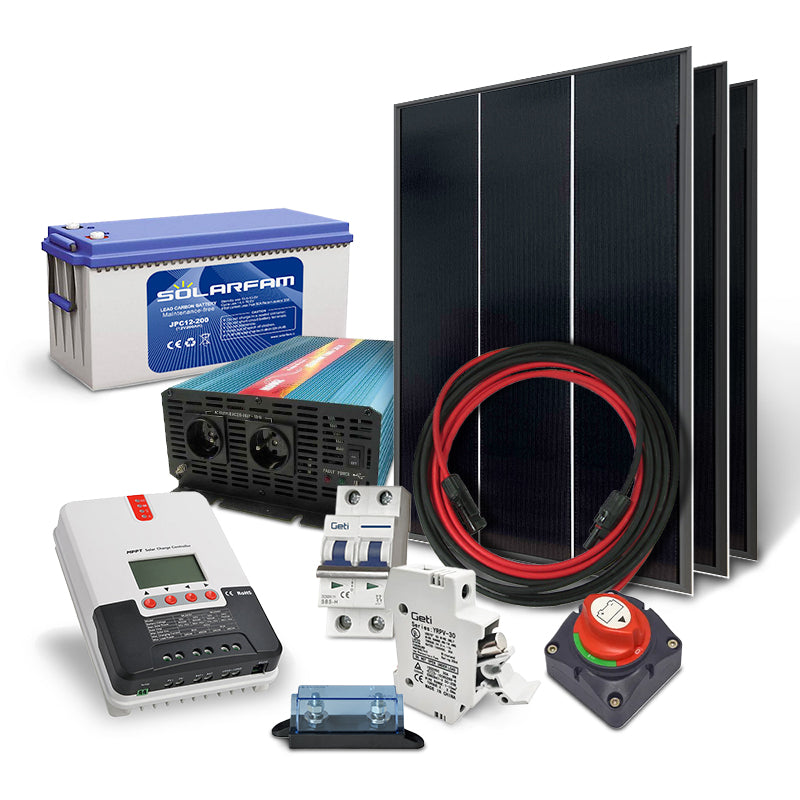

The solar system comprises the following components: 3x 12V/180W monocrystalline shingle solar panel with black frame, 1230x705x30mm, SOLARFAM, Cat. No.: 04280311
1x MPPT solar controller, 12/24V, 40A 1x SOLARFAM solar cable, 2x10.0m, 4mm2, red-black, Cat. No.: 04290056
1x 25A double-pole DC circuit breaker, GETI GF-J02, Cat. No.: 04290186 1x 32A fuse switch, GETI GF-F04, Cat. No.: 04291333
1x GETI GF-S01 battery disconnect switch, 1-pole/off, Cat. No.: 04290202 1x Solarfam lead-carbon battery, 200 Ah, Cat. No.: 04250590
1x CARSPA P2000 voltage converter 12V/230V 2000W pure sine wave with UPS and charger Cat. No.: 04230501
1x Victron MEGA fuse holder Cat. No.: 04290022 1x MEGA fuse for photovoltaic systems 300A/32V Cat. No.: 04290020

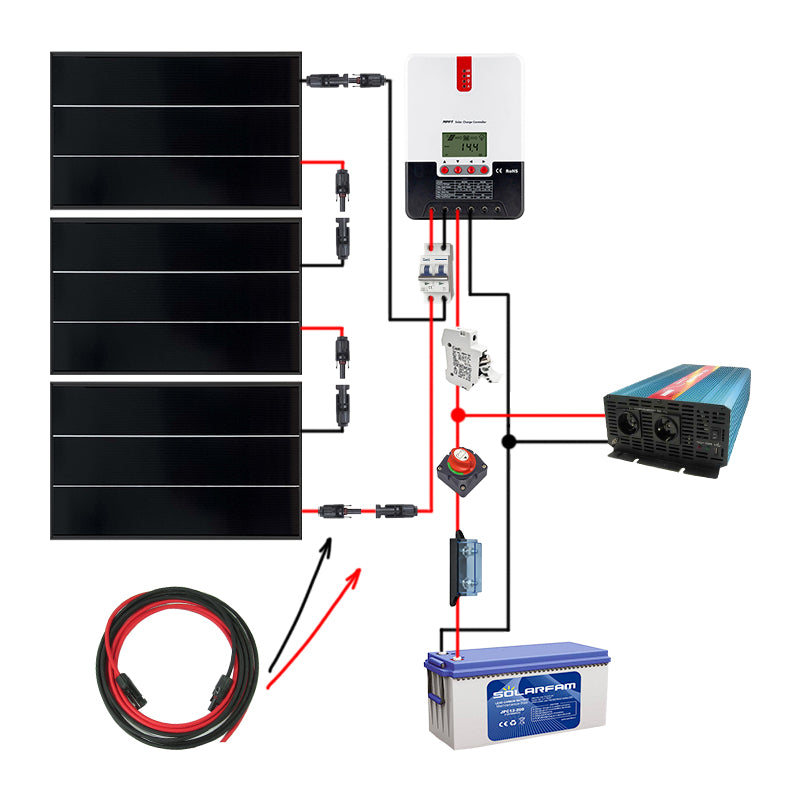

- Install the fuse switch for the photovoltaic panel on the positive cable between the panels and the controller - Install the fuse switch for the battery on the positive cable as close to the battery as possible
- Install the fuse switch for the inverter on the positive power supply cable of the inverter The kit does not include mounting hardware. These must be ordered separately according to the planned installation method.
This is an oversized item, which is not eligible for free delivery. Delivery times from the date the order is placed may be extended by 3–4 working days.

We reserve the right to change components based on current stock availability without prior notice. Any such changes will not affect the functionality of the kit.
As the sets are custom-assembled, some components (e.g. solar panels) come from bulk packaging. For this reason, they may not be supplied in their original individual packaging. However, we guarantee that all goods in the set are brand new and unused.
