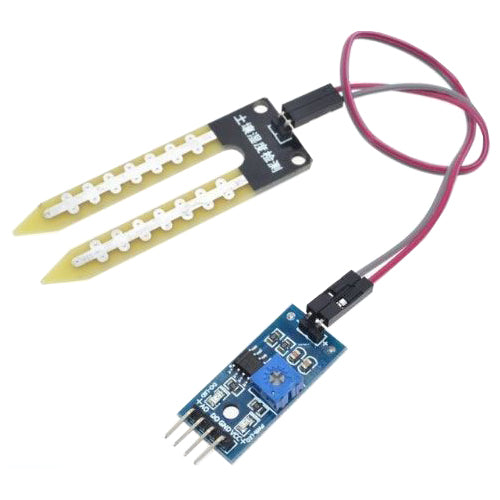

Soil moisture meter including probe, module with LM393
15% off
Soil moisture meter module - LM393 comparator, power supply 3.3–5V, dual output: digital DO with threshold adjustable by trimmer and analogue AO for precise humidity measurement, PCB dimensions 30 × 15 mm, probe 60 × 20 mm, conductor 20 cm, compatible with Arduino, periodic measurement recommended to extend the life of the probe, designed for professional installation
In stock 7 pcs
Expected shipping:
22.09.2026
Sale price
€0,90
Regular price
€1,06
Unit price
/
Unavailable
HADEX | SKU:
09830093
Product description
Sensor and amplifier for measuring soil moisture. Dual mode with analog and digital output. The digital output is used to determine the closing of the irrigation, analog to measure the specific value of soil moisture.
Technical parameters:
- used comparator: LM393
- 3.3-5V power supply
- DO - digital output (threshold set by the trimmer)
- AO - analog output
- PCB size: 30 × 15 mm
- probe: 60 × 20 mm
- guide: 20 cm
During continuous measurement, the service life of the probe is greatly shortened, since the electrolytic reaction takes place here. For optimal probe and battery life, program periodic measurements with immediate result evaluation.
The product is not a stand-alone unit, it requires professional installation.
Technical parameters:
- used comparator: LM393
- 3.3-5V power supply
- DO - digital output (threshold set by the trimmer)
- AO - analog output
- PCB size: 30 × 15 mm
- probe: 60 × 20 mm
- guide: 20 cm
During continuous measurement, the service life of the probe is greatly shortened, since the electrolytic reaction takes place here. For optimal probe and battery life, program periodic measurements with immediate result evaluation.
The product is not a stand-alone unit, it requires professional installation.
