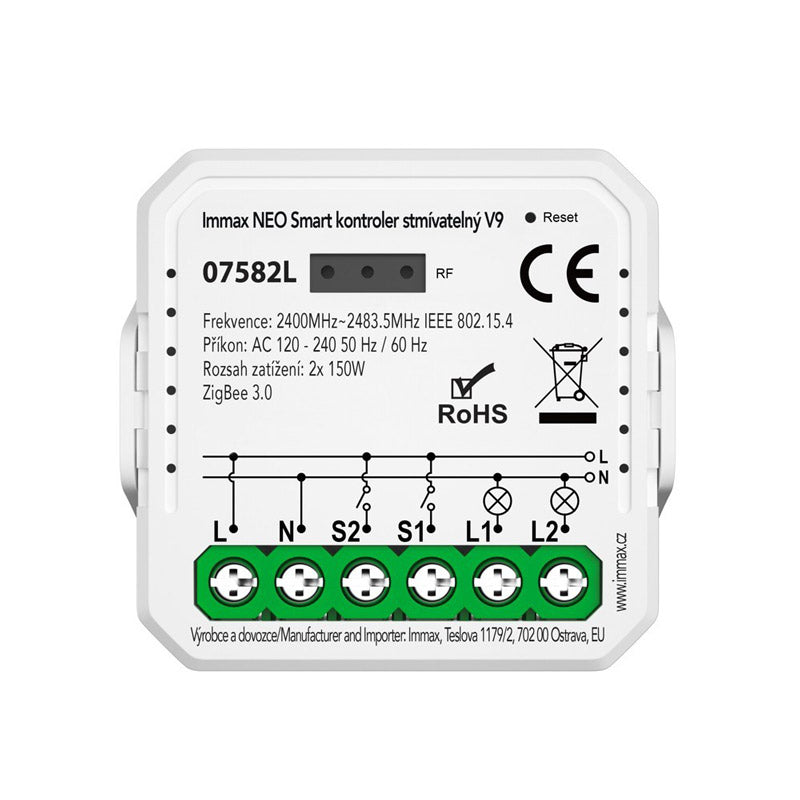

Smart switch IMMAX NEO 07582L ZigBee Tuya
Smart dimmable ZigBee switch - ZigBee 3.0 protocol, frequency 2400–2483.5MHz, maximum RF power 19dBm, power input AC 100–240V 50/60Hz, load range 2× 150W, thermal fuse and overheating protection, current fuse and overvoltage protection, range 30 m (line of sight), IP20, operating temperature -10 to +40°C, humidity 20–80%, dimensions 3.9 × 3.9 × 1.8 cm, ZigBee repeater function, connection with neutral conductor
In stock 2 pcs
Expected shipping:
29.09.2026
Regular price
€24,35
Unit price
/
Unavailable
IMMAX NEO | SKU:
06443927
Product description
Smart controller dimmable
Technical parameters:
Note: with neutral wire connection, under the button
Communication protocol: ZigBee 3.0
Frequency: 2400MHz~2483.5MHz IEEE 802.15.4
Maximum RF output power: ZigBee:10dBm - max 19dBm
Zigbee repeater: Yes
Mains standby power (Pnet): 0.4W
Power input: AC 100 - 240 50 Hz / 60 Hz
Load range: 2x 150W
Thermal fuse, overheating protection: Yes
Current fuse, overvoltage and overload protection: Yes
Wireless range: 30 m direct visibility, 10 m in built-up area
Operating temperature: -10 ° C to 40 ° C.
Operating humidity: 20% - 80%.

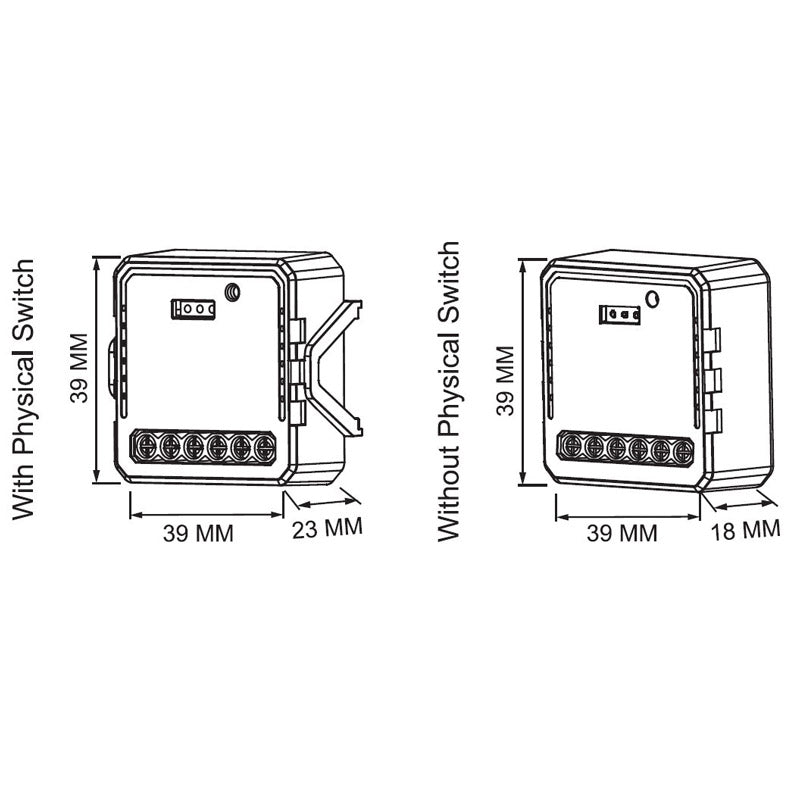

Dimensions: 3.9 x 3.9 x 1.8 cm (without holder)
Protection level: IP20
Package contents: Smart controller, user manual
Technical parameters:
Note: with neutral wire connection, under the button
Communication protocol: ZigBee 3.0
Frequency: 2400MHz~2483.5MHz IEEE 802.15.4
Maximum RF output power: ZigBee:10dBm - max 19dBm
Zigbee repeater: Yes
Mains standby power (Pnet): 0.4W
Power input: AC 100 - 240 50 Hz / 60 Hz
Load range: 2x 150W
Thermal fuse, overheating protection: Yes
Current fuse, overvoltage and overload protection: Yes
Wireless range: 30 m direct visibility, 10 m in built-up area
Operating temperature: -10 ° C to 40 ° C.
Operating humidity: 20% - 80%.
Dimensions: 3.9 x 3.9 x 1.8 cm (without holder)
Protection level: IP20
Package contents: Smart controller, user manual
