Smart motion detector IMMAX NEO 07527L ZigBee Tuya
Sale
Smart PIR detektor pohybu - protokol ZigBee 3.0, platforma Tuya, napájení baterií CR123A 3V (výdrž až 254 dní) nebo USB-C 5V/1A, montáž samolepkou, push notifikace do aplikace Immax NEO PRO, vyžaduje Immax NEO SMART BRIDGE PRO v3 nebo jiný Tuya ZigBee hub (prodává se samostatně), kompatibilní s Android a iOS, určeno pro automatizaci osvětlení a chytré domácnosti
In stock 5 pcs
Expected shipping:
31.08.2026
Regular price
€14,74
Unit price
/
Unavailable
IMMAX NEO | SKU:
06443926
Smart motion detector IMMAX NEO 07527L ZigBee Tuya
Regular price
€14,74
Unit price
/
Unavailable
Product description
Automatically control lights or smart home devices using scenes or automation based on sensor values. Using Immax NEO SMART BRIDGE PRO v3, (can be purchased separately, product code: 07117-3) you can receive information from the sensor to the IMMAX NEO PRO application. The sensor is powered by a CR123A 3V battery, which lasts up to 254 days. A USB C adapter with a min. voltage of 5V/1A can also be used as a power source. Installing the sensor is very easy.
When installing (the sensor can be easily glued anywhere), make sure that the sensor does not come into direct contact with water. Another important condition is that the sensor is within range of the smart gateway. ATTENTION - this is not a WiFi sensor, it requires Immax NEO SMART BRIDGE PRO v3, (can be purchased separately, product code: 07117-3), or another hub/bridge/gateway on the Tuya platform that communicates using the ZigBee 3.0 standard. The system is fully compatible with iOS, Android, Amazon Alexa, Apple Siri Shortcuts, Google Assistant, TUYA, Lidl.
Technical parameters:
Zigbee communication protocol: 3.0
Frequency: 2400MHz - 2483.5MHz
Maximum RF output power: 6±1dBm
Wireless range: 30 m line of sight, 10 m in built-up area
PIR detection technology (passive infrared sensor)
Detection angle: 120°
Lighting detection range: 0 - 1000 lux

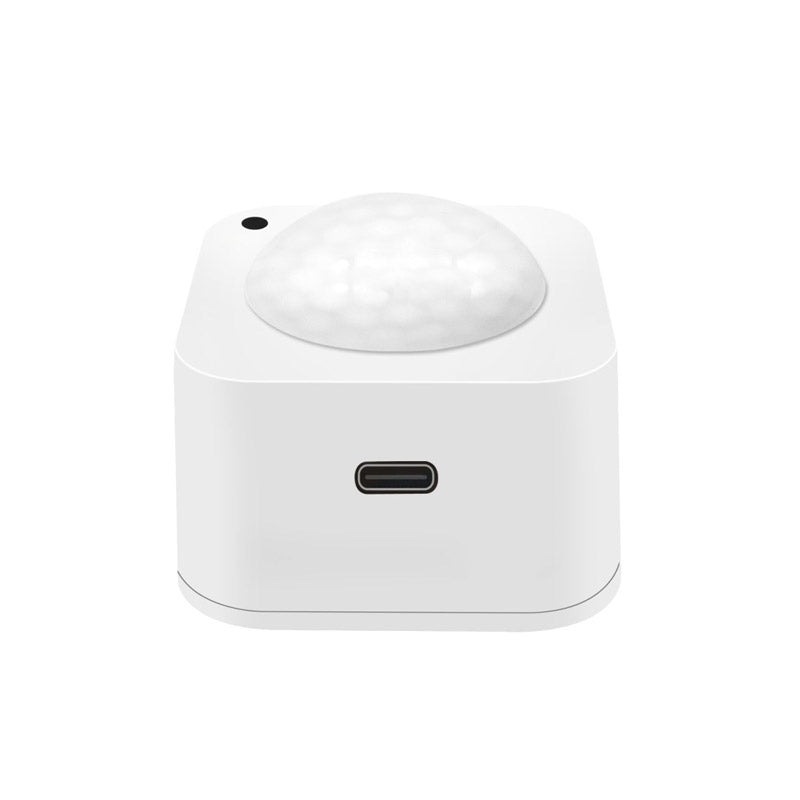

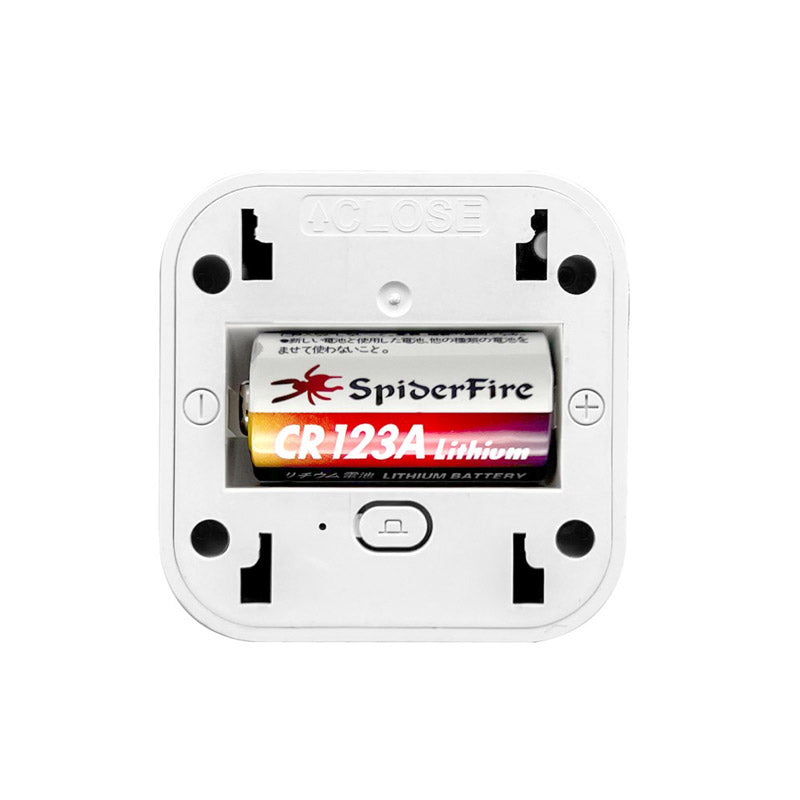

Power source: 1x CR123A 3V battery or USB C 5V 1A (adapter and USB C cable not included)
Battery life: up to 254 days in standby mode
Standby power consumption: 148 uAh (per hour)
Working power consumption: 3 uAh (for one operation)
Screw mounting or 3M adhesive tape
Mounting height: 1.8 - 2.1m
Operating temperature: -10°C to +50°C
Operating humidity: maximum 95%
Protection degree: IP20
Certificates: CE
Sensor dimensions: 48x48x40mm
Sensor weight: 51.2g
Holder dimensions: 50x50x32mm
Holder weight: 31.4g
Package contents: PIR sensor, holder, user manual
When installing (the sensor can be easily glued anywhere), make sure that the sensor does not come into direct contact with water. Another important condition is that the sensor is within range of the smart gateway. ATTENTION - this is not a WiFi sensor, it requires Immax NEO SMART BRIDGE PRO v3, (can be purchased separately, product code: 07117-3), or another hub/bridge/gateway on the Tuya platform that communicates using the ZigBee 3.0 standard. The system is fully compatible with iOS, Android, Amazon Alexa, Apple Siri Shortcuts, Google Assistant, TUYA, Lidl.
Technical parameters:
Zigbee communication protocol: 3.0
Frequency: 2400MHz - 2483.5MHz
Maximum RF output power: 6±1dBm
Wireless range: 30 m line of sight, 10 m in built-up area
PIR detection technology (passive infrared sensor)
Detection angle: 120°
Lighting detection range: 0 - 1000 lux
Power source: 1x CR123A 3V battery or USB C 5V 1A (adapter and USB C cable not included)
Battery life: up to 254 days in standby mode
Standby power consumption: 148 uAh (per hour)
Working power consumption: 3 uAh (for one operation)
Screw mounting or 3M adhesive tape
Mounting height: 1.8 - 2.1m
Operating temperature: -10°C to +50°C
Operating humidity: maximum 95%
Protection degree: IP20
Certificates: CE
Sensor dimensions: 48x48x40mm
Sensor weight: 51.2g
Holder dimensions: 50x50x32mm
Holder weight: 31.4g
Package contents: PIR sensor, holder, user manual
