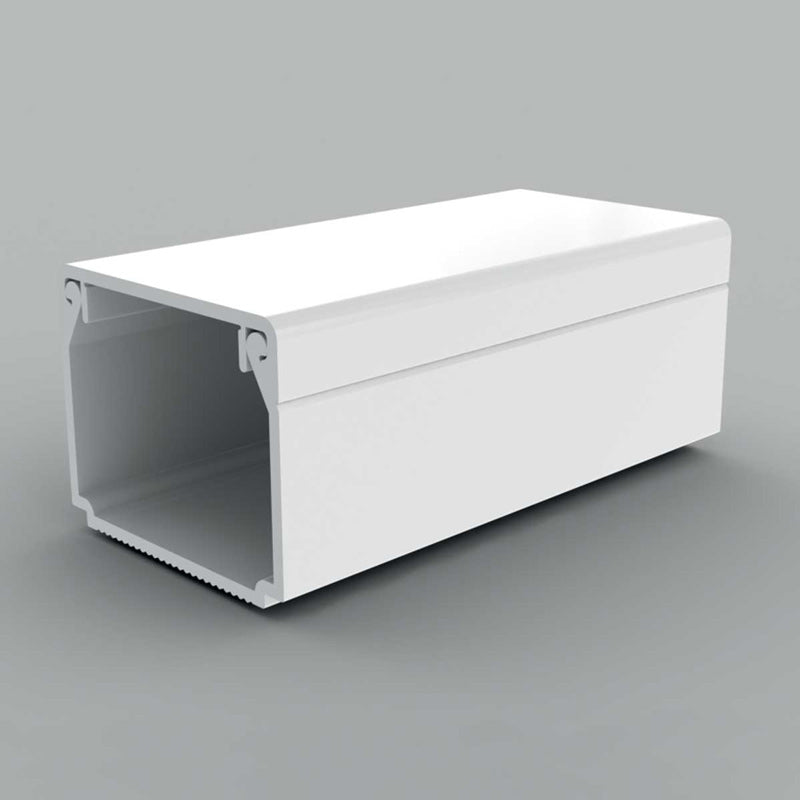

Slat KOPOS LHD 25x20 HD square
Sale

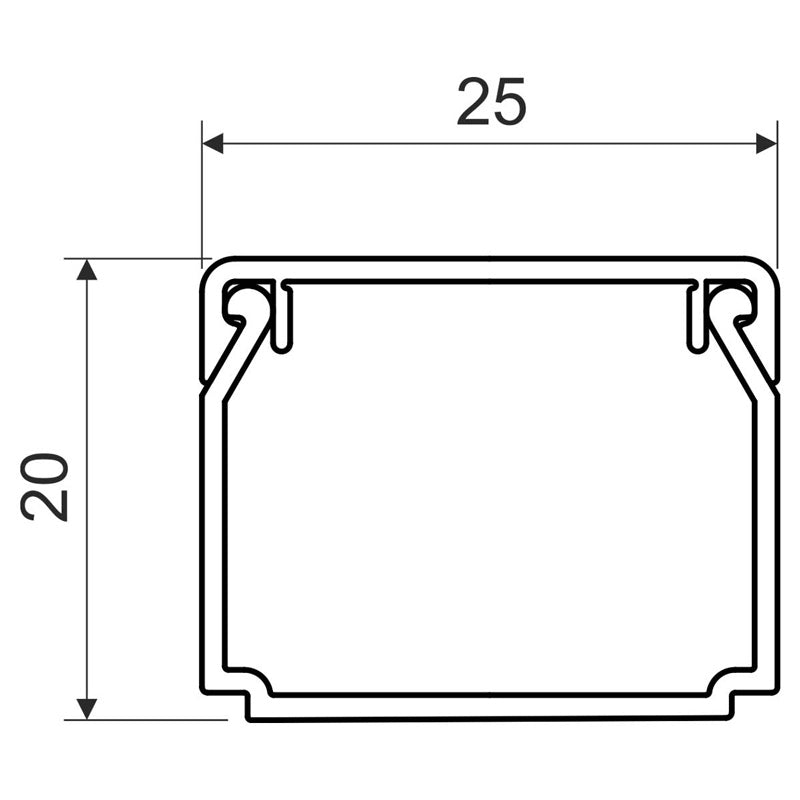

Square electrical trunking - dimensions 25 × 20 mm, length 2 m, inner cross-section 400 mm2, lead-free PVC material, colour white, weight 0.18 kg/m, self-extinguishing material (30 s), temperature resistance -5 to +60°C, glow wire test 850°C, mechanical protection IK06, impact resistance 0.5 J, resistant to chemical environments, not suitable for outdoor use, length tolerance ±0.5 %
In stock 15 pcs
Expected shipping:
21.09.2026
Regular price
€2,32
Unit price
/
Unavailable
KOPOS | SKU:
08780042
Product description
They are resistant to aggressive and chemical environments. They do not resist UV radiation, they are not suitable for outdoor use. Wiring strips and wiring fittings with accessories can be installed in areas with explosion hazard of flammable gases and vapors of zone 2 and with the danger of explosion of flammable dusts in zone 22, the installation must comply with the requirements of ČSN 60079-14.
Properties:
- Weight: 0.18 kg / m
- White color
- Material: PVC
- Lead-free material: yes
- Self-extinguishing material: 30 sec.
- Temperature resistance: -5 - 60 ° C
- Glow-wire test: 850 ° C
- Mechanical protection: IK06
- Impact resistance: 0.5 J
- Width: 25 mm
- Height: 20 mm
- Length: 2 m
- Inside area: 400 mm2
- Straps are available in lengths with a tolerance of: ± 0.5% at 20 ° C.
- Fire reaction class of the substrate: A1 - F
- Degree of protection: IP 40
- Complies with standards: ČSN EN 50 085-1
Properties:
- Weight: 0.18 kg / m
- White color
- Material: PVC
- Lead-free material: yes
- Self-extinguishing material: 30 sec.
- Temperature resistance: -5 - 60 ° C
- Glow-wire test: 850 ° C
- Mechanical protection: IK06
- Impact resistance: 0.5 J
- Width: 25 mm
- Height: 20 mm
- Length: 2 m
- Inside area: 400 mm2
- Straps are available in lengths with a tolerance of: ± 0.5% at 20 ° C.
- Fire reaction class of the substrate: A1 - F
- Degree of protection: IP 40
- Complies with standards: ČSN EN 50 085-1
